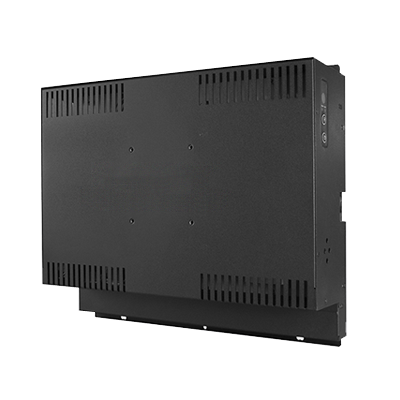

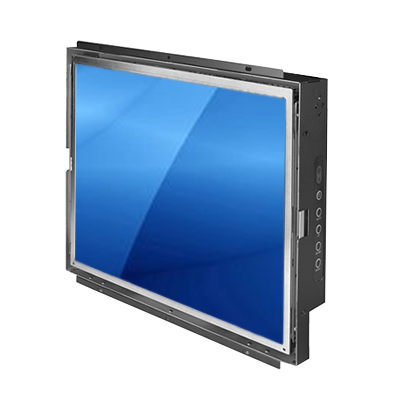

PMW6215
21.5" open frame LCD monitor with 1920 x 1080 resolution, VGA + HDMI + DVI video input, VESA mount, AC input with built-in power, and an open frame metal enclosure.
Key Features
- ✓21.5 inch widescreen open frame LCD monitor
- ✓Supports 1920 x 1080 Full HD display resolution
- ✓250-nits brightness, option for 1000-nits high brightness
- ✓VGA + HDMI + DVI input
- ✓Option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch, Capacitive touch
- ✓Option for EMI mesh shielding, UV film, sensor, digital signage
- ✓Option for -10°C to 65°C wide working temperature
- ✓Wall and VESA (100 x 100mm) mount ready
- ✓AC input w/ built-in PWR, option for DC-IN
The PMW6215 21.5" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1920 x 1080 FHD display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and AC input w/ built-in PWR. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers.
| Material | Heavy-duty steel |
| LCD Panel | Size: 21.5 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 250-nits Option for 1000-nits high brightness Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 476.64(H) x 268.11(V) Pixel Pitch (mm): 0.248(H) x 0.248(V) Response Time: ≤ 5ms Backlight: LED Colors: 16.7M MTBF (hrs): 35,000 |
| LCD Enhancements(Option) | Option for EMI Mesh Shielding or UV film Option for AG Glass, AR Glass, Resistive touch, or Capacitive touch |
| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |
| On-Screen Display | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: AC power input with built-in power Operation / Power Saving: 26.25 watt, < 1 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN |
| Mounting | Wall and VESA (100mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C Option for -10°C to 65°C wide operating temperature Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90% (no condensation) |
| Safety | FCC, CE |
| Weight | 17.64 lb / 8 kg |
| Dimension | 20.94"(W) x 13.54"(H) x 2.48"(D) |
This product does not have configurable options.
