PMN80215
21.5" inch 1920 x 1080 full HD industrial LCD monitor with VGA, P-CAP touch screen with USB, 110-240VAC power input, IP66 rated stainless steel housing and front bezel.
Key Features
- ✓Anti-corrosion stainless steel housing
- ✓Full IP66 rated rugged enclosure
- ✓21.5 inch 1920 x 1080 250-nit LCD
- ✓Option for 1000-nit high brightness display
- ✓VGA video input, option for DVI or HDMI
- ✓P-cap multi-touch screen with USB
- ✓0°C to 60°C wide range working temperature
- ✓Wide range 110 ~ 240VAC power input
Panel mount monitor with a 21.5 inch 1920 x 1080 full HD industrial LCD panel, fully IP66 rated anti-corrosion stainless steel housing, P-cap touch screen, 0°C to 60°C wide range working temperature, 110 - 240VAC power input. Option for 1000-nit high brightness display, DVI + HDMI +BNC Video input, 9 - 36V DC power input.
| Material | Anti-corrosion stainless steel with deactivated coating |
| LCD Panel | Size: 21.5 inch Resolution: 1920 x 1080 Brightness (cd/m²): 250-nit, option for 1000-nit Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 476.64(H) x 268.11(V) Pixel Pitch (mm): 0.248(H) x 0.248(V) Colors: 16.7M MTBF (hrs): 50,000 |
| Video Input | VGA video input Option for DVI or HDMI |
| Touch Screen | P-cap type touch screen monitor - USB Option for 5-wire resistive type touch screen - USB |

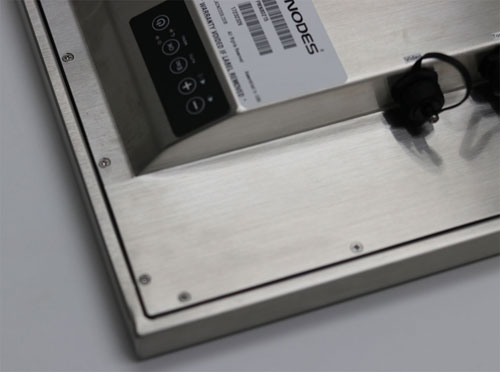

| OSD | OSD Input: 5-key OSD buttons OSD Function: Contrast, Color, Position, Auto-adjustment, Factory Settings |
| Power Supply | 110~240V AC power input, universal ±10% Power Consumption: 40W (typ.) Option for 9~36V DC power input |

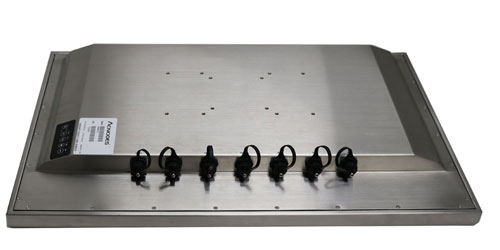

| Connectors | 1 x VGA (IP66 connector) Option for 1 x HDMI ( IP66 connector) Option for 1 x DVI (IP66 connector) 1 x USB for touch screen (IP66 connector) |
| Mounting | 100 x 100mm / 200 x 100mm VESA mount |
| Environmental | Operating Temperature: 0°C to 60°C Storage Temperature: -20°C to 70°C Operating Humidity: 10~95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 Shock: MIL-STD-810G Method 516.6 |
| IP Protection | Full IP66 rated protection |
| Weight | 22.05 lb / 10 kg |
| Dimension | 17.95"(W) x 14.96”(H) x 2.13"(D) |
