PMH9220
21.5" 1920 x 1080 Full HD 1000-nit high brightness sunlight readable display with VGA + DVI-D video input, 100/240VAC power adapter, and an open frame metal enclosure.
Key Features
- ✓21.5" high brightness open frame LCD monitor
- ✓Supports 1920 x 1080 native resolution
- ✓1000-nits high brightness sunlight readable display

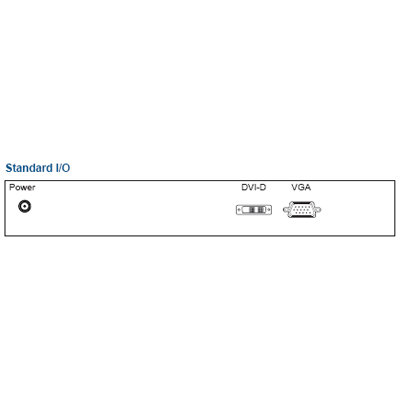

- ✓VGA + DVI-D video input
- ✓Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
- ✓Option for Resistive or PCAP touch screen - USB
- ✓Universal & VESA (100 x 100mm) mount ready
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
Sunlight readable open frame monitor with a 21.5 inch 1920 x 1080 Full HD LCD panel, VGA + DVI-D video input, and an open frame metal enclosure. Option for Resistive / Capacitive / PCAP type touchscreen, HDMI / DP / Audio / SDI input, auto-dimming or dimming switch, and DC power input.
| Material | Heavy duty steel |
| LCD Panel | Size: 21.5 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 5000:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 476.64H x 268.11V Colors: 16.7M Backlight: LED MTBF (hrs): 50,000 |
| Video input | VGA + DVI-D video input Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input |
| Touch screen (option) | Resistive or Projected Capacitive type touch screen - USB Lockable USB connector |
| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | Open frame panel mount or VESA (100mm) mount |
| Power Supply | External auto-sensing 100 to 240VAC, 50/60Hz power adapter Consumption: Max. 32 Watt, Standby 2 Watt Option for 12V / 24V / 48V / 125V DC power supply |
| Environmental | Operating Temperature: 0°C to 55°C (32°F to 131°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Relative Humidity: 20~90%, non-condensing Attitude: 16,000 ft Operating; 40,000 ft Non-operating Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | FCC, CE |
| Weight | 14.7 lb / 6.7 kg |
| Dimension | 22.6"(W) x 2.1"(D) x 14.4"(H) |
