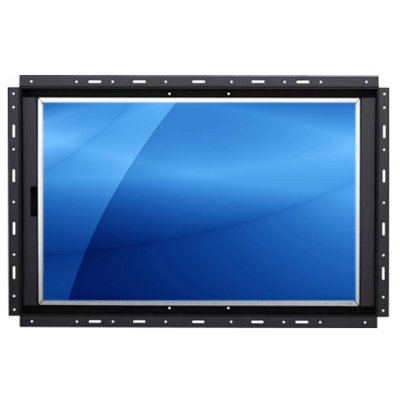

PMH9190
19" 1440 x 900 1000-nit sunlight readable open frame monitor with VGA + DVI-D video input, 100/240VAC power input, and an open frame metal construction.
Key Features
- ✓19" high brightness open frame LCD monitor
- ✓Supports 1440 x 900 native resolution
- ✓1000-nits high brightness sunlight readable display
- ✓VGA + DVI-D video input
- ✓Option for HDMI, BNC, Audio, 3G-SDI, or MCS control
- ✓Option for Resistive or PCAP touch screen - USB
- ✓Universal & VESA (100 x 100mm) mount ready
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
Sunlight readable open frame monitor with a 19 inch 1440 x 900 1000-nit LCD panel, VGA + DVI-D video input, and an open frame metal enclosure. Option for Resistive or Projected Capacitive type touch screen, HDMI / DP / Audio / SDI input, auto-dimming or dimming switch, and DC power input.
| Material | Heavy duty steel |
| LCD Panel | Size: 19 inch Max Resolution: 1440 x 900 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 160° x 160° Active Area (mm): 408.24H x 255.15V Colors: 16.7M Backlight: LED MTBF (hrs): 50,000 |
| Video Input | Standard: VGA + DVI-D Option: HDMI, BNC, 3G-SDI input, or MCS multi-display control |
| Touch screen (option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port Lockable USB connector |
| Rear panel control | Power on/off switch OSD membrane switch |
| OSD menu control | OSD membrane switch control for Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune Option for MCS multi-display OSD menu control 1 x RS-232 link port & x 2 RJ-45 ports in/out ports Cascade up to 64 monitors RS-232 (link to computer) port RJ 45 port ( in/out ports between each monitor) (Cat5 or Cat6 cable, up to 300 meters between each monitor) |
| Mounting Type | Universal mount or VESA (100mm) mount |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 39 Watt, Standby 4 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black front panel (RAL9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11 ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Safety | FCC, CE |
| Weight | 12.1 lb / 5.5 kg |
| Dimension | 19.9"(W) x 2.3"(D) x 13.2"(H) |
