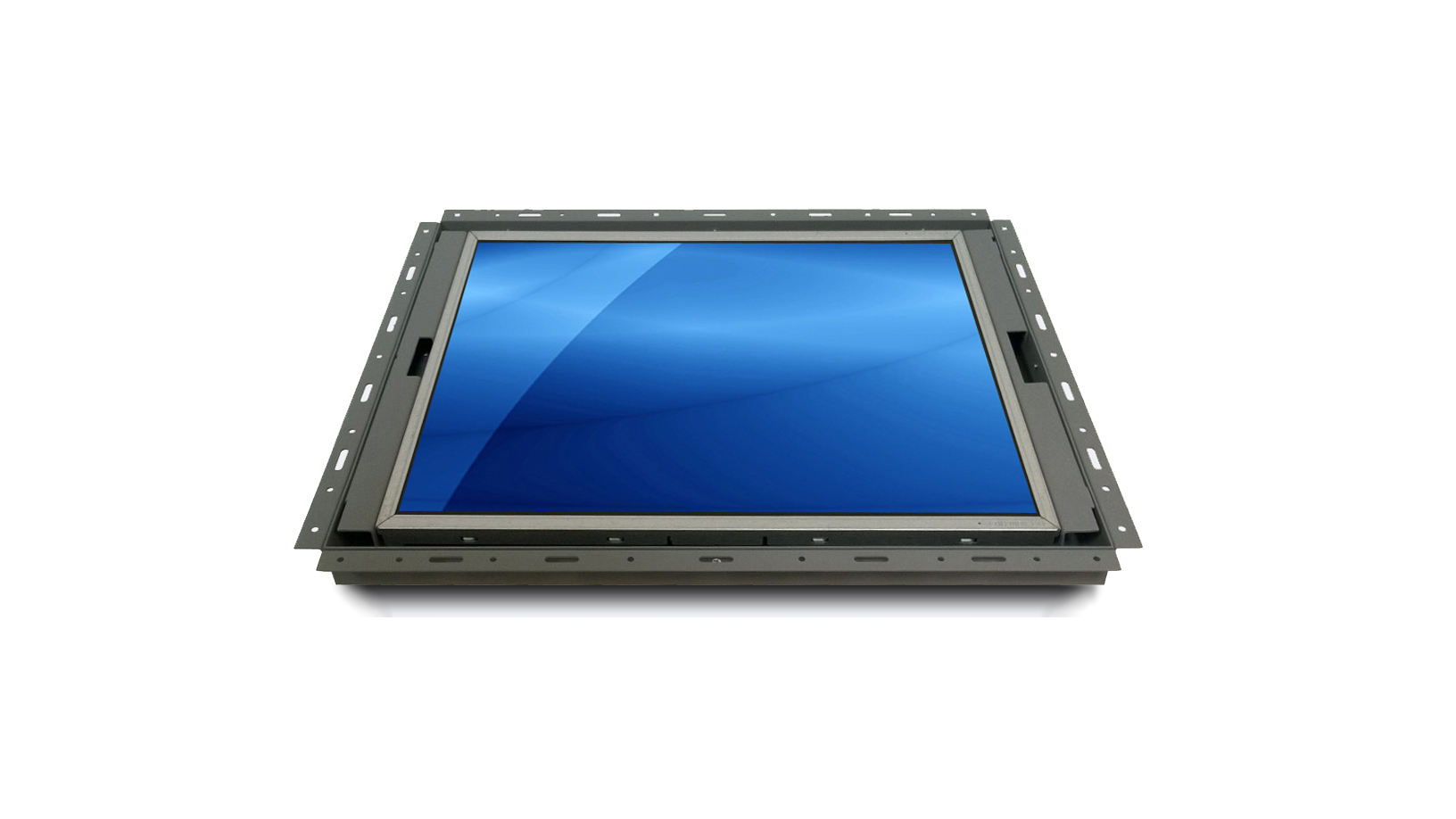

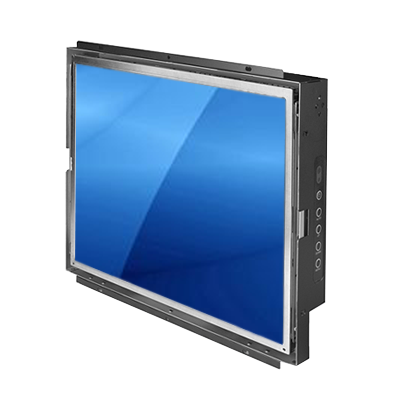

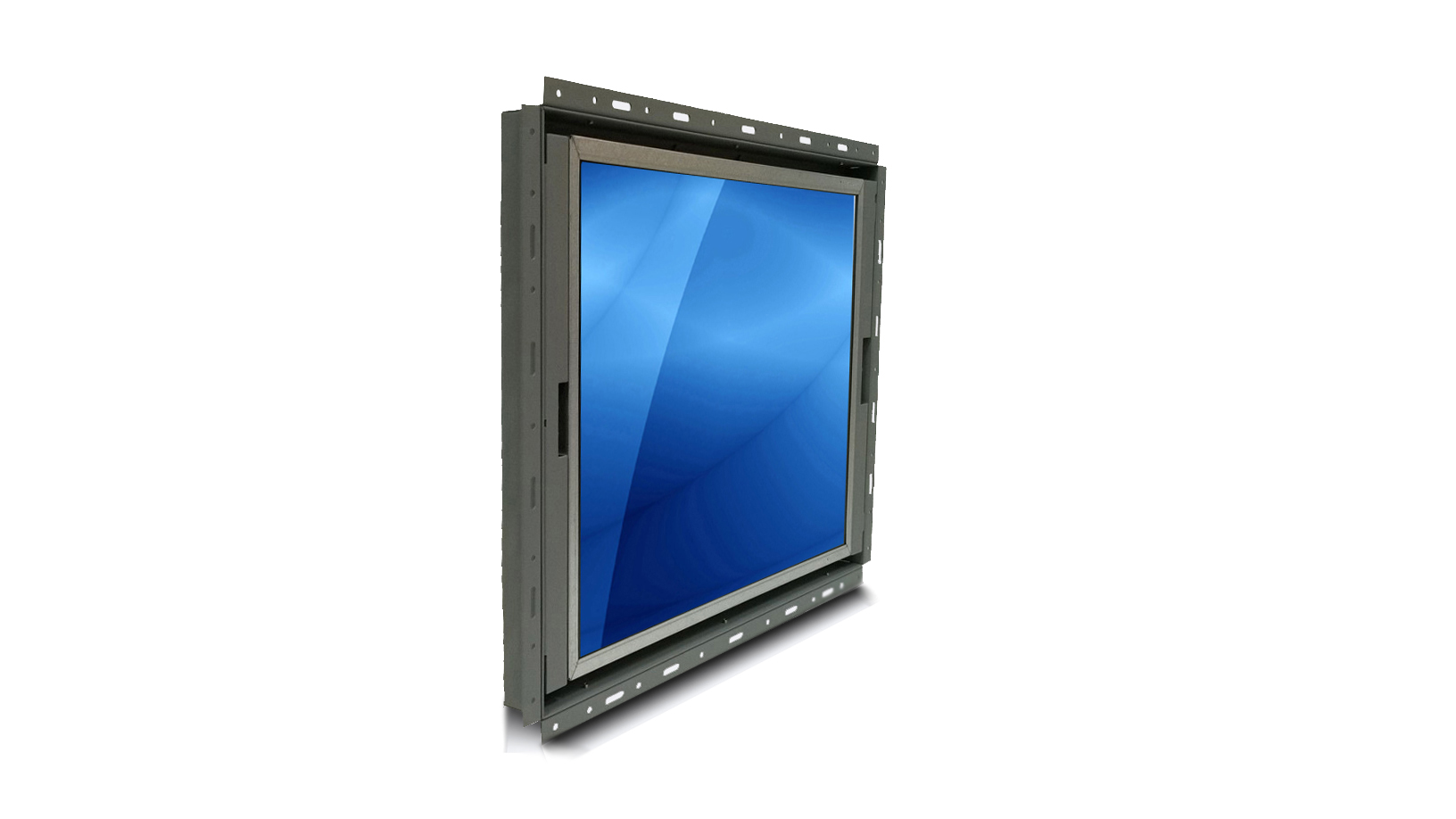

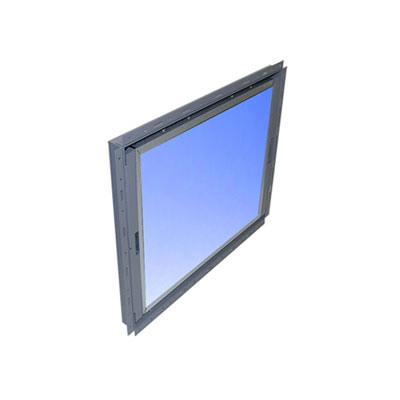

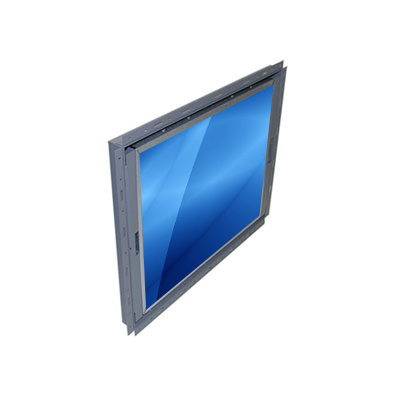

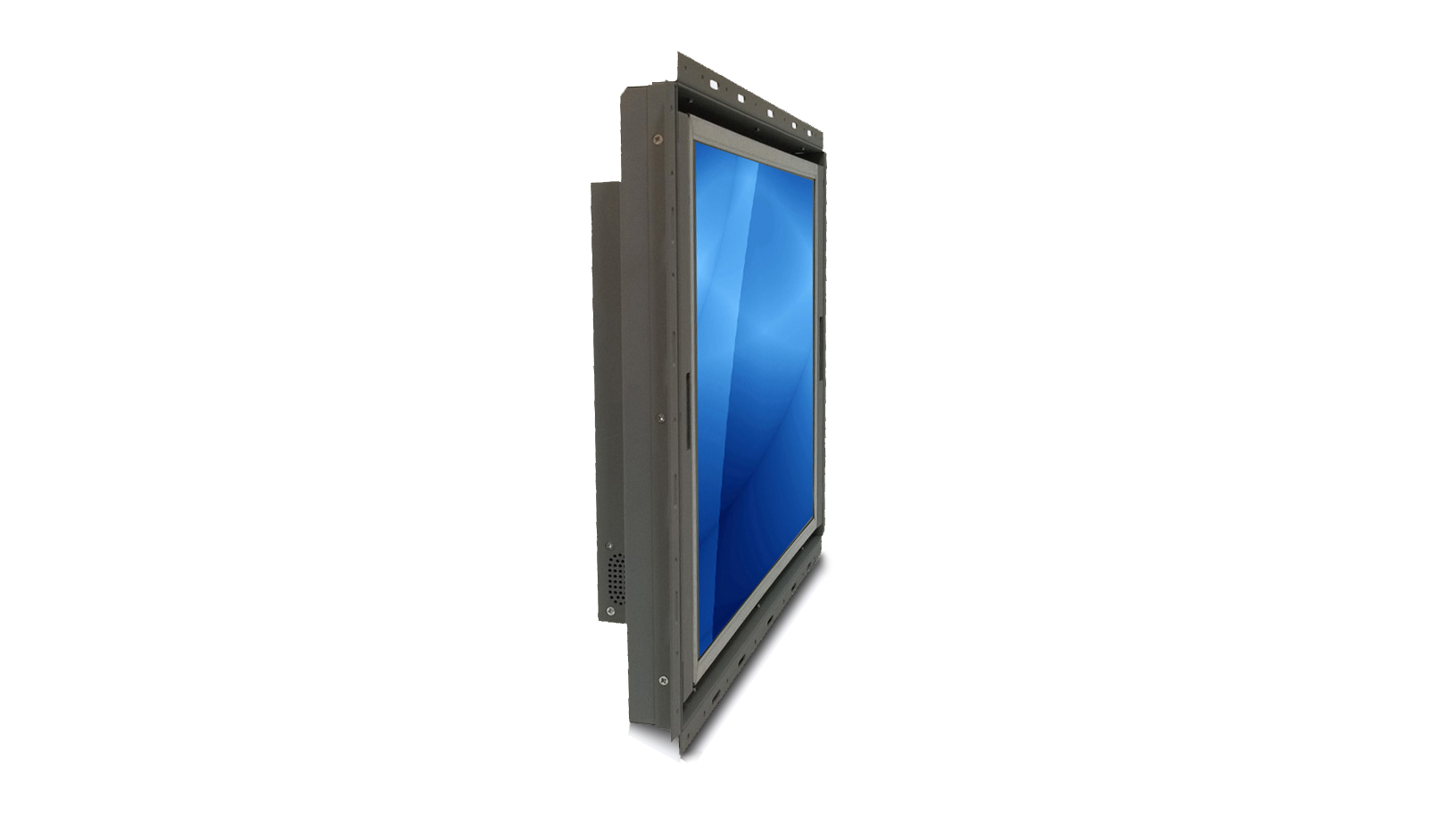

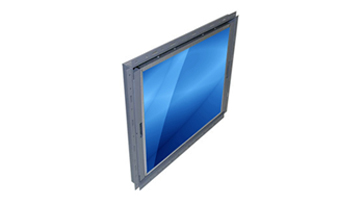

PM6170

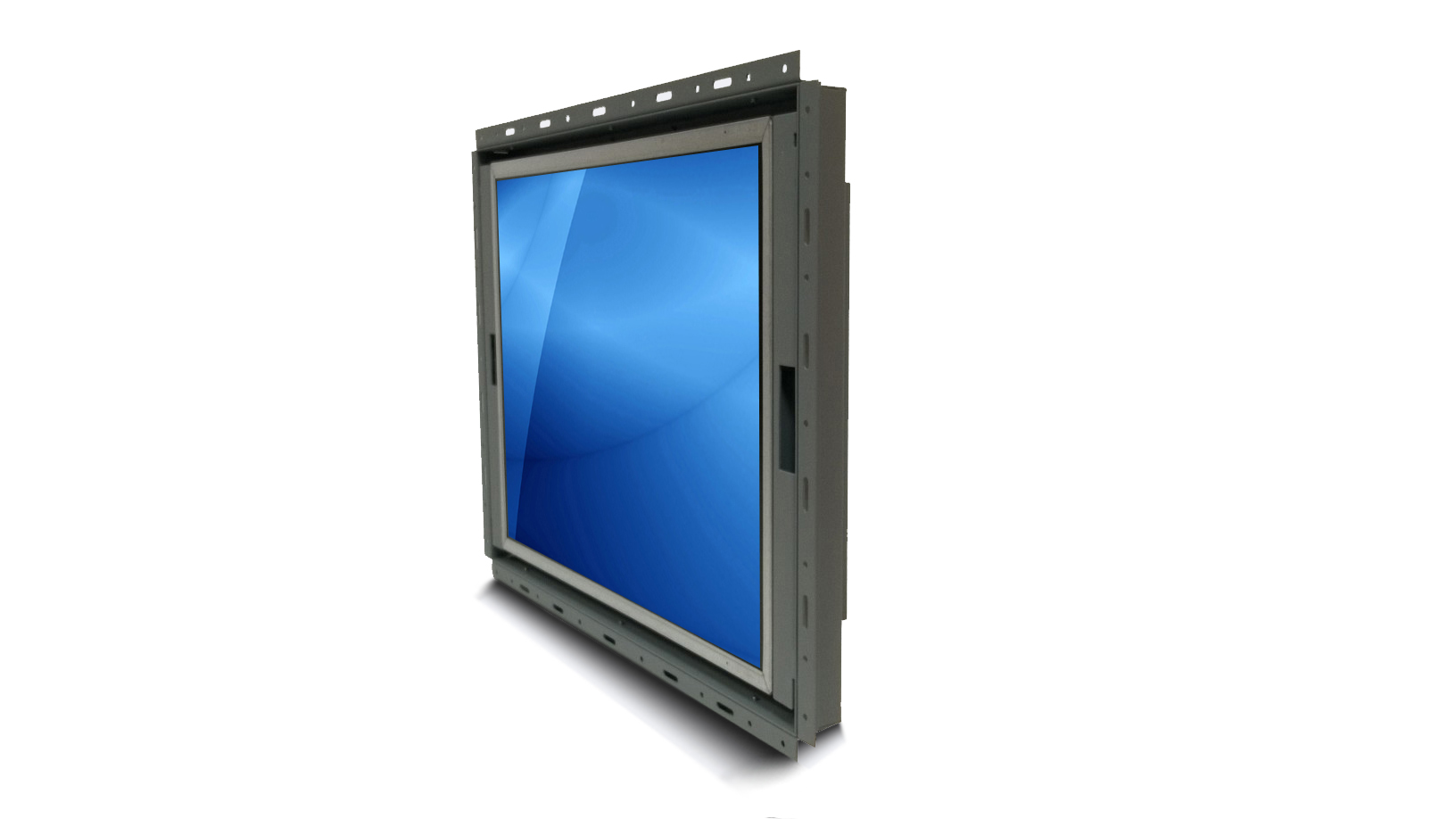

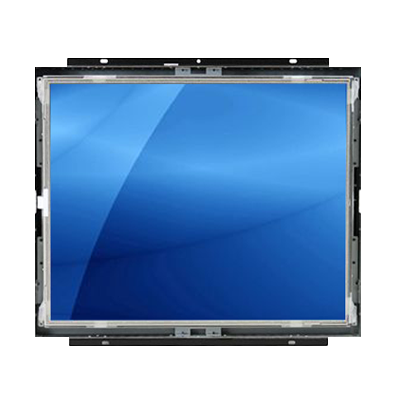

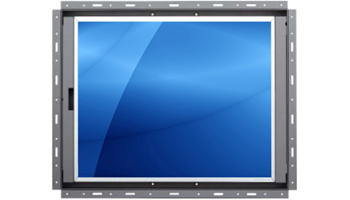

17" open frame monitor with 1280 x 1024 display resolution, VGA + HDMI + DVI video input, AC input with built-in power, VESA mount, and an open frame metal enclosure.
Key Features
- ✓17 inch open frame LCD monitor
- ✓Supports 1280 x 1024 display resolution
- ✓250-nits brightness, option for 1000-nits high brightness
- ✓VGA + HDMI + DVI input, option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch, Capacitive touch
- ✓Option for EMI mesh shielding, UV film, sensor, digital signage
- ✓Option for -30°C to 80°C wide working temperature
- ✓Wall and VESA (75 x 75mm) mount
- ✓AC input with built-in power

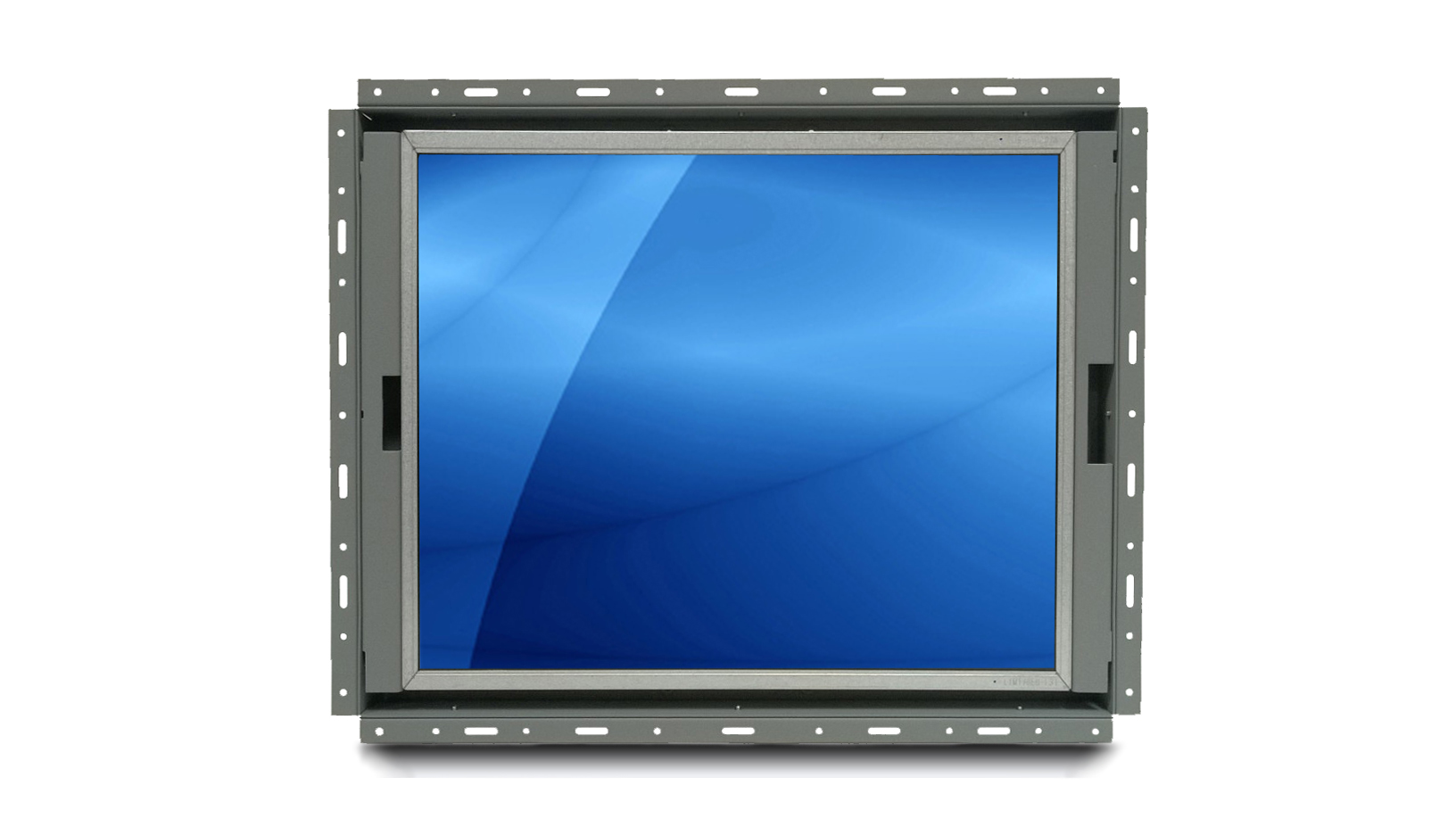

The PM6170 is a 17" open frame LCD monitor with 1280 x 1024 resolution and a 250-nit LED backlight display. The monitor features multiple video inputs including VGA, HDMI, DVI, or DP input. Designed with a heavy-duty steel enclosure, this 17" open frame monitor is ideal for industrial or commercial applications and POS systems. Options are available for Resistive or Capacitive touch, AG or AR glass, EMI mesh shielding or UV film, 1000-nits high brightness LCD screen, and -30°C to 80°C wide working temperature range.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17 inch Max Resolution: 1280 x 1024 Brightness (cd/m²): 250-nits / With wide temp: 350-nits, Option for 1000-nits high brightness display Contrast Ratio (typ.): 800:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 337.92(H) x 270.34(V) Pixel Pitch (mm): 0.264(H) x 0.264(V) Response Time: ≤ 5ms Backlight: LED Colors: 16.7M MTBF (hrs): 35,000 |
| LCD Enhancements(Option) | Option for EMI Mesh Shielding or UV film Option for AG Glass, AR Glass, Resistive touch, Capacitive touch |

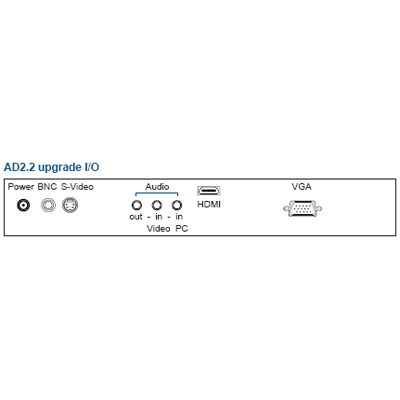

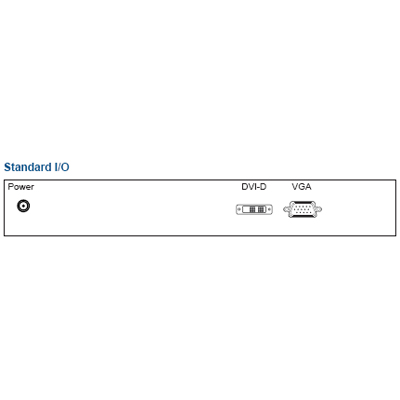

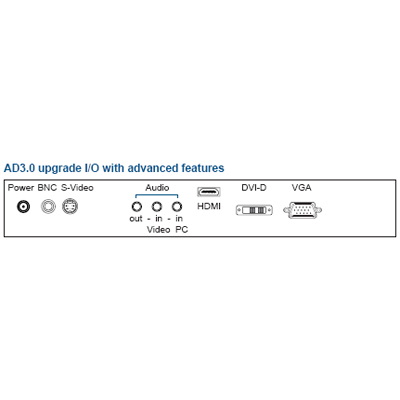

| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |
| OSD Buttons | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: AC-IN with built-in power Operation / Power Saving: 32.5 watt , < 2 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN |

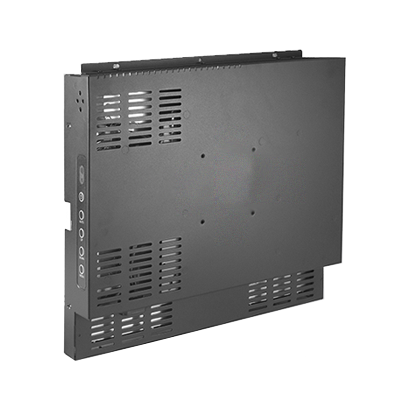

| Mounting | Wall and VESA (75mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C Option for -30°C to 80℃ wide range working temperature Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90%, non-condensation |
| Safety | FCC, CE |
| Weight | 11.02 lb / 5 kg |
| Dimension | 14.85"(W) x 13.31"(H) x 2.31"(D) |
