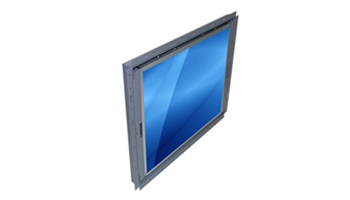

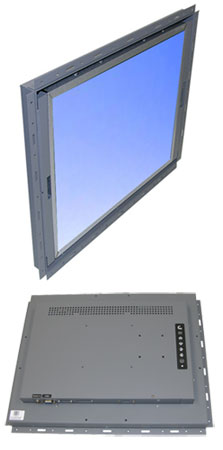

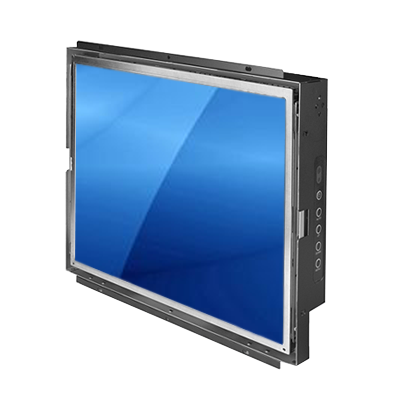

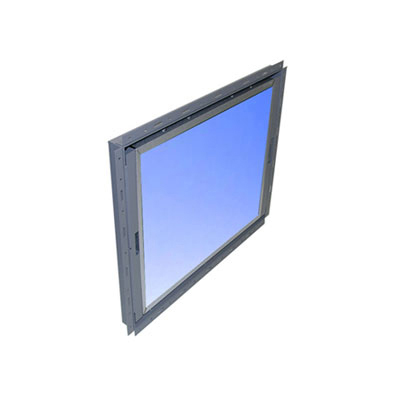

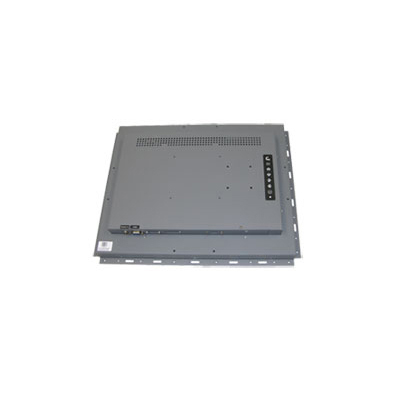

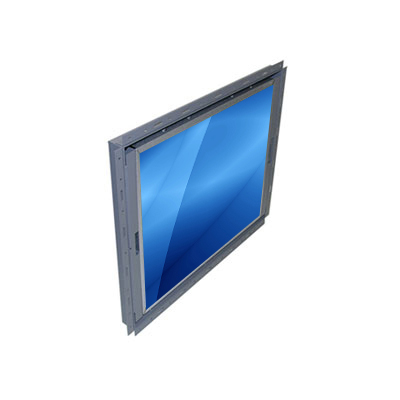

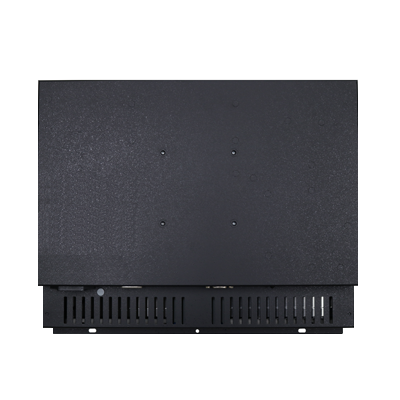

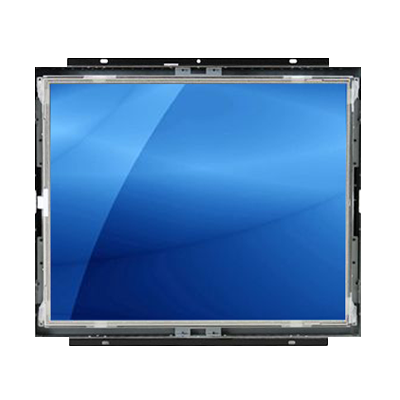

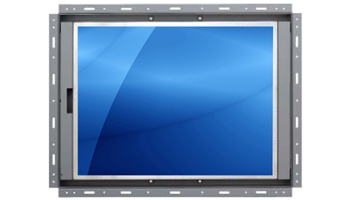

PM6150
15" open frame monitor with 1024 x 768 display resolution, VGA + HDMI + DVI video input, AC input with built-in power, VESA mount, and an open frame metal enclosure.
Key Features
- ✓15 inch open frame LCD monitor
- ✓Supports 1024 x 768 display resolution
- ✓250-nits brightness, option for 1000-nits high brightness
- ✓VGA + HDMI + DVI input, option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch, Capacitive touch
- ✓Option for EMI mesh shielding, UV film, sensor, digital signage
- ✓Option for -20°C to 70°C wide working temperature
- ✓Wall and VESA (75 x 75mm) mount
- ✓AC input with built-in power
The PM6150 is a 15-inch open frame LCD monitor supporting a 1024 x 768 resolution. The monitor provides multiple video inputs including VGA, HDMI, DVI, or DP for various applications. Designed with a heavy-duty steel enclosure, the PM6150 is a reliable monitor ideal for industrial or commercial applications and POS systems. Option for 1000-nits high brightness display, EMI mesh shielding or UV film, AG or AR glass, Resistive or Capacitive touch, light or motion sensor, and -20°C to 70°C wide working temperature range.
| Material | Heavy-duty steel |
| LCD Panel | Size: 15 inch Max Resolution: 1024 x 768 Brightness (cd/m²): 250-nits / With wide temp: 350-nits, Option for 1000-nits high brightness display Contrast Ratio (typ.): 700:1 Viewing Angle (H/V): 140° x 120° Active Area (mm): 304.13(H) x 228.10(V) Pixel Pitch (mm): 0.297(H) x 0.297(V) Response Time: ≤ 35 ms Backlight: LED Colors: 16.2M MTBF (hrs): 35,000 |
| LCD Enhancements(Option) | Option for EMI Mesh Shielding or UV film Option for AG Glass, AR Glass, Resistive touch, Capacitive touch |

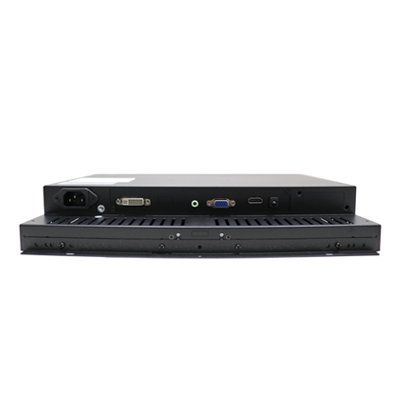

| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |

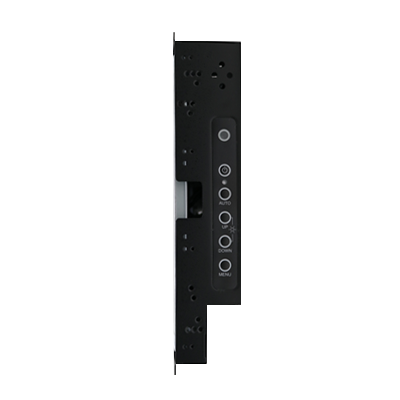

| OSD Buttons | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: AC-IN with built-in power Operation / Power Saving: 20 watt , < 2 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN |
| Mounting | Wall and VESA (75mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C Option for -20°C to 70℃ wide range working temperature Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90%, non-condensation |
| Safety | FCC, CE |
| Weight | 8.82 lb / 4 kg |
| Dimension | 13.59"(W) x 11.30"(H) x 2.28"(D) |
