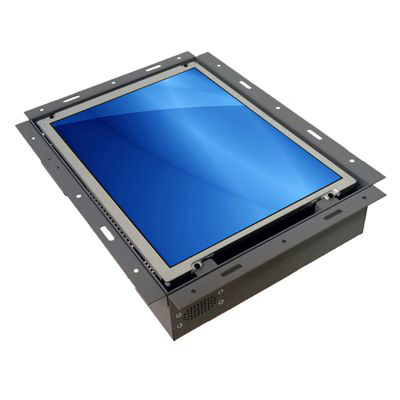

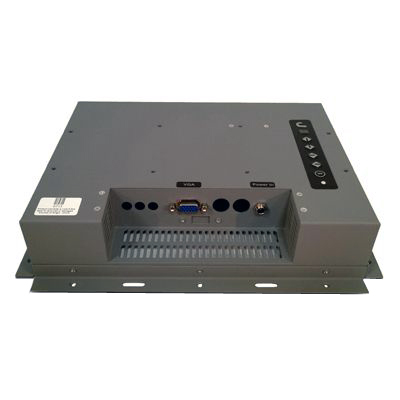

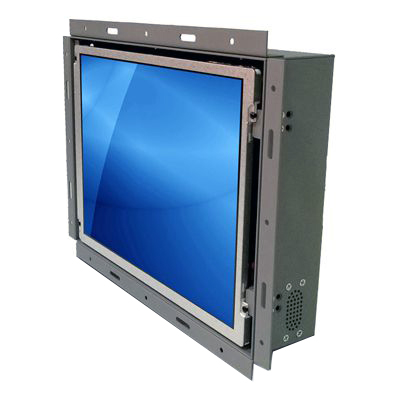

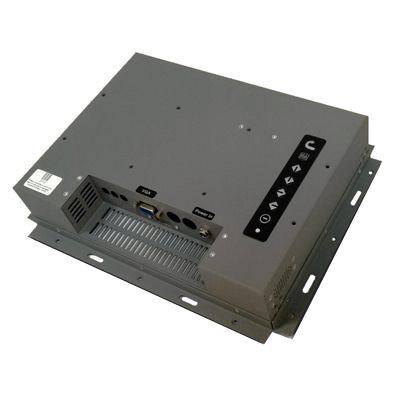

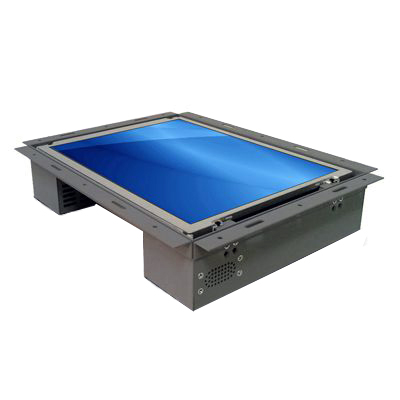

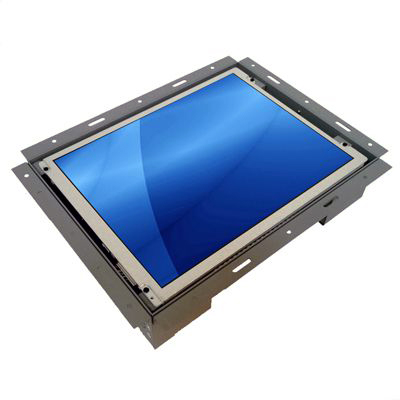

PM6104
10.4" open frame monitor with 800 x 600 display resolution, VGA + HDMI + DVI video input, 12V DC power input w/ an adapter, VESA mount, and an open frame metal enclosure.
Key Features
- ✓10.4 inch open frame LCD monitor
- ✓Supports 800 x 600 display resolution
- ✓350-nits brightness, option for 1000-nits high brightness
- ✓VGA + HDMI + DVI input, option for VGA + HDMI + DP input
- ✓Option for AG glass, AR glass, Resistive touch, Capacitive touch
- ✓Option for UV film, light/motion sensor, digital signage
- ✓Option for -30°C to 70°C wide working temperature
- ✓Wall and VESA (75 x 75mm) mount ready
- ✓12V DC input with adapter
The PM6104 is a 10.4-inch open frame LCD monitor supporting an 800 x 600 resolution with a 350-nit LED backlight display. The monitor provides multiple video inputs including VGA, HDMI, DVI, or DP for various applications. Designed with a heavy-duty steel enclosure, the PM6104 is a cost-effective reliable monitor for industrial automation, kiosk information systems, self-service, commercial, and many other POS systems. Options are available for Resistive or Capacitive touch, AG or AR glass, UV film, 1000-nits high brightness LCD screen, and -30°C to 70°C wide range working temperature.
| Material | Heavy-duty steel |
| LCD Panel | Size: 10.4 inch Max Resolution: 800 x 600 Brightness (cd/m²): 350-nits, option for 1000-nits high brightness Contrast Ratio (typ.): 600:1 Viewing Angle (H/V): 140° x 120° Active Area (mm): 211.2(H) x 158.4(V) Pixel Pitch: 0.264(H) x 0.264(V) Response Time: ≤ 35 ms Backlight: LED Colors: 262K MTBF (hrs): 35,000 |
| LCD Enhancements (Option) | Option for UV film Option for AG Glass, AR Glass, Resistive touch, Capacitive touch |
| Video Input | VGA + HDMI + DVI input Option for VGA + HDMI + DP input |
| OSD Buttons | 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box |
| Sensor (Option) | Option for light sensor or motion sensor |
| Digital Signage (Option) | Option for MP-1080P |
| Power Supply | Input: 12V DC power input with adapter Operation / Power Saving: 9.375 watt, < 2 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN |
| Mounting | Wall and VESA (75mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C Option for -30°C to 70℃ wide operating temperature Storage Temperature: -20°C to 60°C Humidity: 10% ~ 90%, non-condensation |
| Safety | FCC, CE |
| Weight | 7.72 lb / 3.5 kg |
| Dimension | 10.24"(W) x 8.62"(H) x 2.56"(D) |
