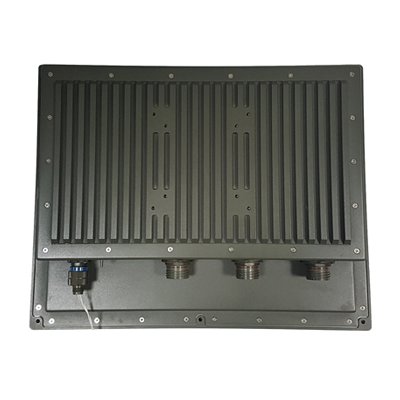

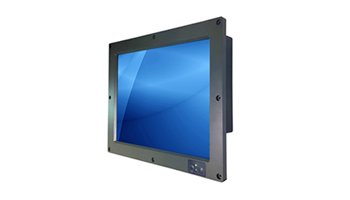

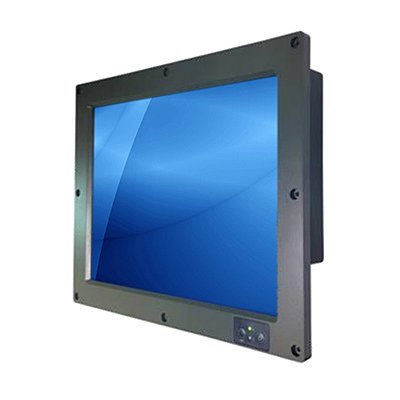

PCM8315
15" 1024 x 768 military-grade panel PC with the Core i7-6600U 2.6GHz CPU, resistive type touchscreen, fully IP66 rated enclosure, and MIL-STD-810G testing standards.
Key Features
- ✓Fully IP66 rated anti-corrosion aluminum housing
- ✓15 inch 1024 x 768 LED backlight monitor
- ✓5-wire resistive type touch screen monitor
- ✓1000-nit high brightness LCD panel
- ✓6th generation Core i7-6600U 2.6GHz CPU
- ✓1 x HDMI output, Dual LAN, 2 x COM, 2 x USB
- ✓MIL-STD-810G vibration, shock, and temperature
- ✓9~36V DC power input, option for AC power adapter
Military-grade panel PC with a 15 inch 1024 x 768 1000-nit high brightness touchscreen monitor and a fully IP66 rated anti-corrosion aluminum housing with MIL-STD-810G compliance. The PC is powered by the 6th generation Intel Core i7-6600U 2.6GHz CPU and supports dual LAN, HDMI output, and COM ports. Options are available for optical bonding, GPS module, front IP rated USB ports, speakers, and AC power adapter.
| Material | Anti-corrosion aluminum housing Full IP66 rated rugged enclosure |
| LCD panel | Size: 15 inch Resolution: 1024 x 768 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 700:1 Viewing Angle (H/V): 160° x 140° Backlight: LED Colors: 16.2M (8-bits/color) |
| Touch Screen | 5-wire resistive type touch screen monitor |
| System | CPU: 6th generation Core i7-6600U 2.6GHz Chipset: SoC Integrated Memory: DDR4L 2133Mhz 8GB, Max. 16GB Storage: mSATA SSD 128GB, Max. 512GB Ethernet Chipset: i219 LM Ethernet Connection Watchdog: 65535 levels, 1~65535 sec |
| Video Port | 1 x HDMI output |
| Speaker (Option) | 2 x 2W speakers |
| GPS Module (Option) | 1 x GPS module |
| Optical Bonding (Option) | Optical Bonding |
| Connectors | 2 x RJ45 GbE LAN 1 x HDMI 2 x USB 2 x RS-232 1 x 9~36V DC input 2 x 2W speakers (optional) 2 x front IP67 USB ports (optional) |
| OSD Buttons | On/Off, Reset buttons |
| System Indicator | 1 x Power LED, 1 x HDD LED |
| EMI Proof | Anti-EMI filter |
| Power Supply | 9 to 36V DC power input Option for external AC power adapter |
| Mounting | VESA or flush mount |
| Environmental | Operating Temperature: -20°C to 60°C Storage Temperature: -30°C to 80°C Relative Humidity: 5~95%, non-condensing MIL-STD-810G vibration, shock, & temperature |
| Weight | 19.84 lb / 9 kg |
| Dimension | 15.0"(W) x 3.18"(D) x 11.97"(H) |
