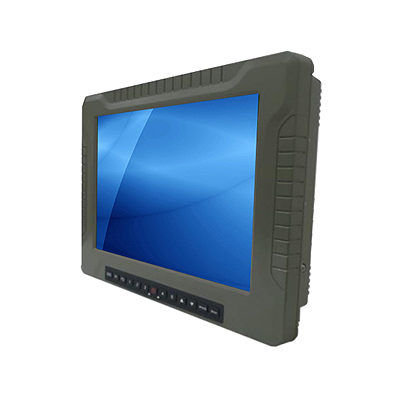

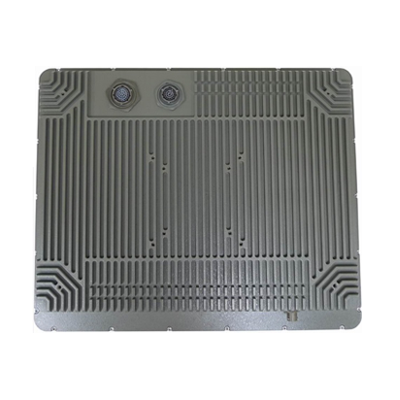

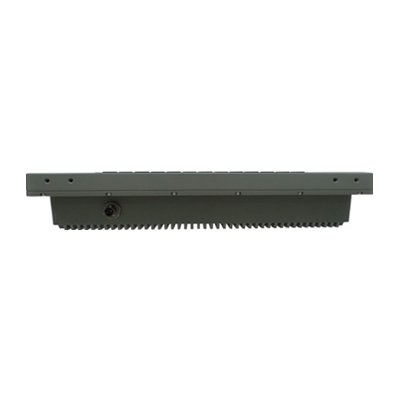

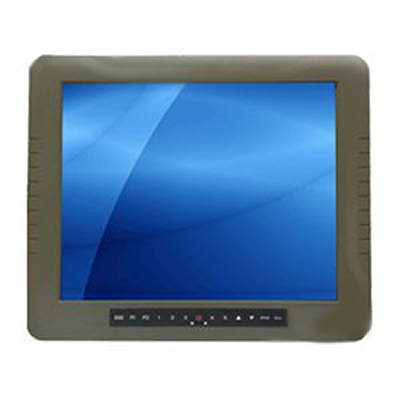

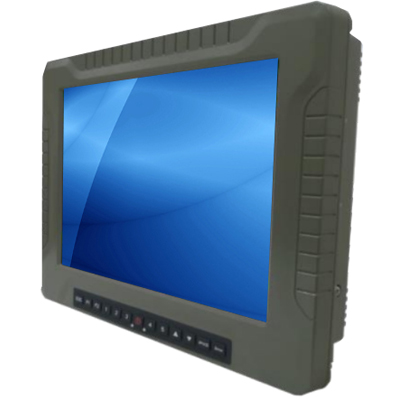

PCM8215
Military-grade panel PC with 15" 1024 x 768 1000-nit high brightness LCD touchscreen, Intel Core i5-6200U 2.3GHz CPU, fanless design, fully sealed IP65 rated rugged enclosure, and MIL-STD-810G testing standards.
Key Features
- ✓Fully IP65 rated rugged enclosure
- ✓15 inch 1024 x 768 LED backlight monitor
- ✓5-wire resistive type touch screen monitor
- ✓1000-nit high brightness LCD panel
- ✓6th generation Core i5-6200U 2.3GHz CPU
- ✓1 x HDMI output, 1 x GbE LAN, 2 x COM, 2 x USB 2.0
- ✓MIL-STD-810G -20°C to 60°C wide range working temperature
- ✓9~36V DC isolated DC power input, option for AC power adapter
Military-grade panel PC with a 15 inch 1024 x 768 1000-nit high brightness LCD monitor and a fully IP65 rated rugged enclosure with MIL-STD-810G compliance and -20°C to 60°C wide range working temperature. The PC is powered by the 6th generation Intel Core i5-6200U 2.3GHz CPU with 8GB memory and 125GB SSD. Option for stereo speakers, optical bonding, front IP rated USB ports, GPS module, and external AC power adapter.
| Material | Fully IP65 rated rugged enclosure |
| LCD panel | Size: 15 inch Max. Resolution: 1024 x 768 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 700:1 Viewing Angle (H/V): 160° x 140° Backlight: LED Colors: 16.2M (8 bits/color) |
| Touch screen | 5-wire resistive type touch screen monitor |
| System | CPU: 6th generation Core i5-6200U 2.3GHz Chipset: SoC Intergated Memory: DDR3L 1600MHz SO-DIMM 8GB, up to 16GB Storage: 1 x 2.5"SSD or 1 x mSATA SSD Graphics: Intel HD Graphics 520 Graphic Memory: 1.70GB |
| Ethernet | Intel i210 Ethernet Controller Intel i219 Ethernet Connection |
| Video Port | HDMI video output |
| Speaker (Option) | 2 x 2W speakers |
| GPS Module (Option) | 1 x GPS module |
| Optical Bonding (Option) | Optical Bonding |
| Connectors | 2 x USB 2.0 1 x GbE LAN 1 x RS-232 1 x RS-422 1 x 9~36V DC input 2 x 2W speakers (optional) 2 x front IP67 USB ports (optional) |
| System Indicator | 1 x Power LED, 1 x HDD LED |
| FN Key | On/Off, Reset, Brightness H/L, 3 x programmable FN keys |
| IP66 Latch Door | 1 x For SIM card accessible |
| Power supply | 9 to 36V DC power input Option for external AC power adapter |
| Mounting | VESA or flush mount |
| Environmental | Operating Temperature: -20°C to 60°C Storage Temperature: -30°C to 70°C Relative Humidity: 10~95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 Shock: MIL-STD-810G Method 516.6 Humidity: MIL-STD-810G Method 507.5-7 EMC: MIL-STD-461E (RE102, CE102) |
| Weight | 19.84 lb / 9 kg |
| Dimension | 15.75"(W) x 2.70"(D) x 12.99"(H) |
