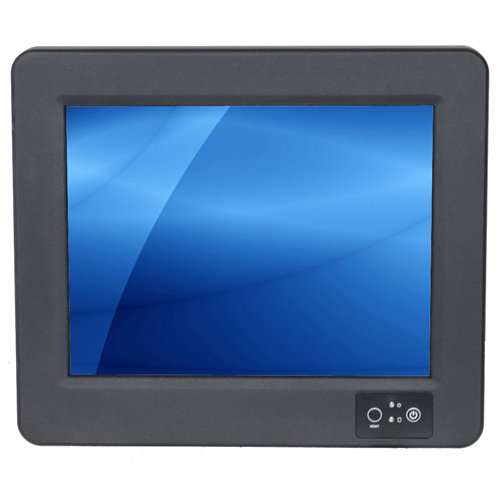

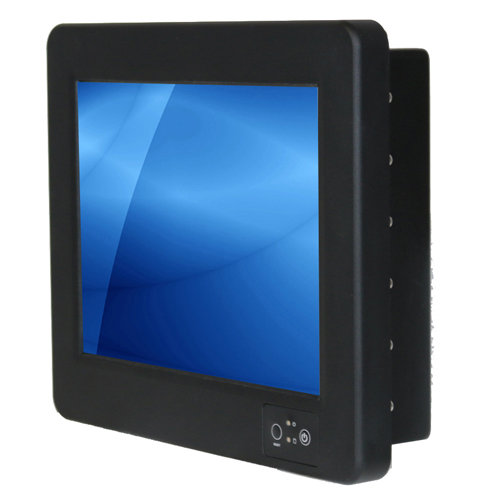

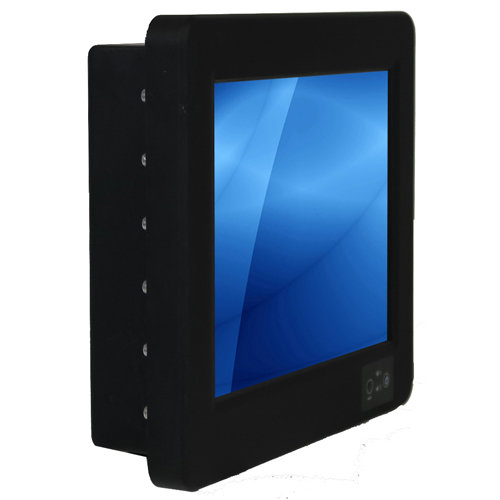

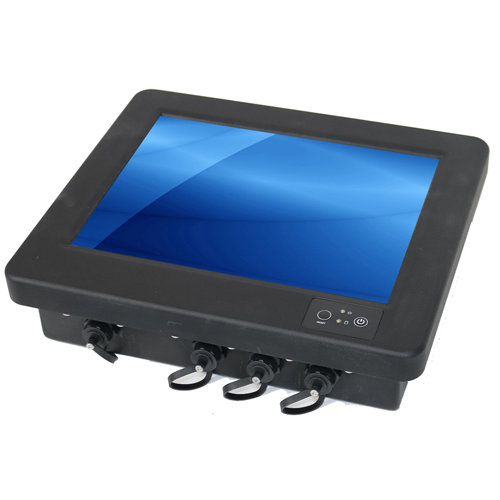

PCM8010
10.4" 1024 x 768 military-grade panel PC with resistive type touch screen, Celeron N2930 1.83GHz CPU, IP65 rated front rugged enclosure, and MIL-STD-810G compliance.
Key Features
- ✓Front IP65 rated rugged enclosure
- ✓10.4 inch 1024 x 768 LED backlight monitor
- ✓5-wire resistive type touch screen monitor
- ✓350-nits high brightness LCD panel, option for 1000-nits
- ✓Celeron N2930 1.83GHz embedded system
- ✓1 x GbE LAN, 1 x COM, 2 x USB 2.0
- ✓MIL-STD-810G -10°C to 60°C wide range working temperature
- ✓Wide range 9~36V DC power input
Military-grade panel PC with a 10.4 inch 1024 x 768 industrial LCD monitor, Resistive type touchscreen, dual LAN, one COM port, two USB ports, and the Intel Celeron N2930 1.83GHz CPU. The monitor comes with an IP65 rated front bezel with -10°C to 60°C wide range working temperature and MIL-STD-810G testing standards.
| Material | IP65 rated front bezel |
| LCD panel | Size: 10.4 inch Max. Resolution: 1024 x 768 Brightness (cd/m²): 350, option for 1000-nits Contrast Ratio (typ.): 1200:1 Viewing Angle (H/V): 176° x 176° Backlight: LED Colors: 16.2M |
| Touch Screen | 5-wire resistive type touch screen monitor |
| Optical Bond (Option) | Optical bonding |
| System | CPU: Intel Celeron N2930 1.83GHz CPU Memory Slot: DDR3 SO-DIMM 4GB Chipset: Fintek F81866 Graphic: Integrated Intel HD Graphics Ethernet: Intel WG82574L GbE Audio: Realtek ALC886 HD Audio Codec |
| Drive Bay | mSATA SSD 64GB, Max. 512GB SSD |

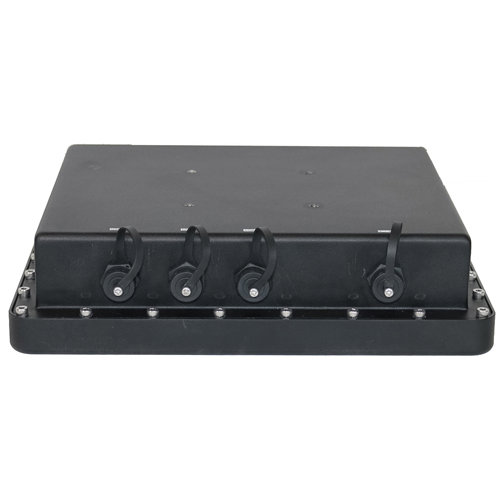

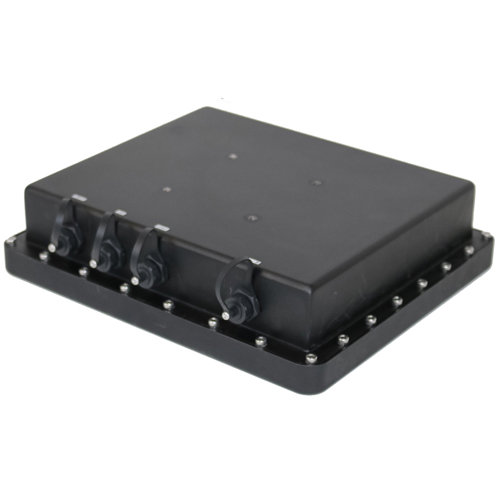

| Connectors | 1 x COM port (RS-232) 2 x USB 2.0 ports 1 x RJ45 GbE LAN 1 x 9~36V DC Input (D38999 connector) |
| Power supply | Wide range 9~36V DC power input Power Consumption: 40 watts (typical) Option for external AC power adapter |
| Power EMI Filter (Option) | EMI filter |

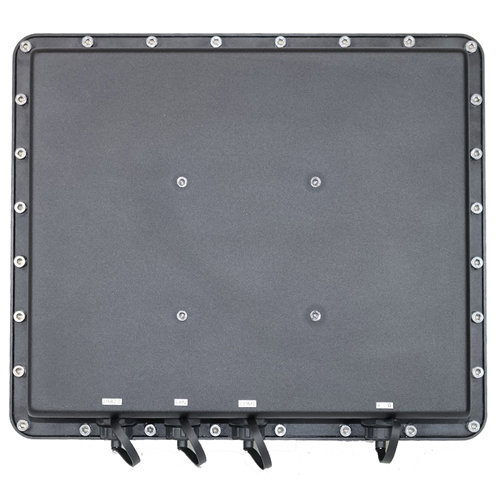

| Mounting | VESA (75 x 75mm) mount Option for panel mount (by request) |
| Environmental | Operating Temperature: -10°C to 60°C (14°F to 140°F) Storage Temperature: -30°C to 70°C (-22°F to 158°F) Relative Humidity: 10% to 95%, non-condensing Vibration: MIL-STD-810G Method 514.6C-3 Shock: MIL-STD-810G Method 516.6 |
| Weight | TBD |
| Dimension | 11.02"(W) x 9.45"(H) x 2.68"(D) |
This product does not have configurable options.
