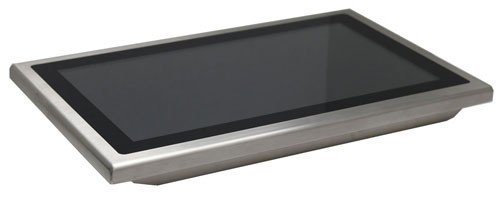

PCH8215
21.5 inch Panel PC with a capacitive type touch screen, Celeron N2930 embedded CPU, full IP67/69K rated stainless steel chassis & connector, and AC power input.
Key Features
- ✓Full IP67/69K rated rugged stainless steel enclosure
- ✓21.5 inch 1920 x 1080 LED backlight LCD monitor
- ✓Capacitive type touch screen
- ✓Intel Celeron N2930 1.83GHz processor
- ✓Option for Core i5 5200U / Core i7 6600U
- ✓2 x USB + 1 x LAN + 1 COM port
- ✓110/240VAC power input, option for DC power input
- ✓Extended working temperature -10°C to 55°C
Panel PC comes with a 21.5 inch full IP67/69K rated anti-corrosion stainless steel touch panel, Celeron N2930 fanless CPU, capacitive type touch screen, and extended working temperature of -10°C to 55°C. Option for Core i5 5200U / Core i7 6600U CPU and DC power input.
| Material | SUS316 stainless steel IP67/69K rated anti-corrosion stainless steel |
| LCD panel | Size: 21.5” Max Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): -85~85 (H); -80~80 (V) Colors: 16.7M, 8 bits Option for high brightness / optical bonding |
| Touch screen | Capacitive touch screen |
| System | CPU: Celeron N2930 1.83GHz (std) Option for Core i5 5200 / Core i7 6700 Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB) Storage: 1 x 128GB SSD (Max.250GB) Ethernet: 1 x Gigabit LAN Option for WiFi and Bluetooth module |
| Connectors - C16 / IP Rated | Serial Ports: 1 x RS232 (IP67) USB Ports: 2 x USB (IP67) Ethernet: 1 x RJ45 GbE LAN (IP67) Power: 1 x AC Input (IP66) IP66 rated 6ft extended cables included for each I/O |
| Power Supply | 110/240VAC power input Power consumption: 50W (typ) Option for 9 to 36V DC power input |
| Mounting | VESA mount (75mm /100mm / 200mm) Option for panel mount with gasket |
| Environmental | Operating Temperature: -10°C to 55°C (14°F to 131°F) Relative Humidity: 10% to 95%, non-condensing |
| IP Rating | Full-IP67/69K rated protection |
| Weight | 24.25 lb / 11 kg |
| Dimension | 23.03”(W) x 2.07”(D) x 14.80”(H) |
