PCH8150
15" full IP67/69K stainless steel panel PC with the Celeron N2930 1.83GHz processor, Resistive type touch screen, and extended working temperatures of -10°C to 55°C.
Key Features
- ✓Full IP67/69K rated rugged stainless steel enclosure
- ✓15 inch 1024 x 768 LED backlight LCD monitor
- ✓Option for high brightness display & optical bonding
- ✓5-wire Resistive type touch screen, option for Capacitive touch screen
- ✓Intel Celeron N2930 1.83GHz CPU, option for Intel Core i CPU
- ✓Extended working temperature of -10°C to 55°C
- ✓1 x LAN, 2 x USB, 1 x COM, 1 x AC Input (IP Rated Connectors)
- ✓VESA (100 x 100mm) mounting holes, option for panel mount w/ gasket
- ✓110/240V AC power input, option for 9 to 36V DC power input

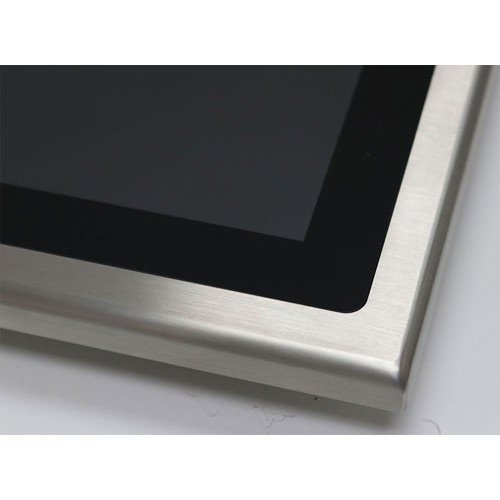

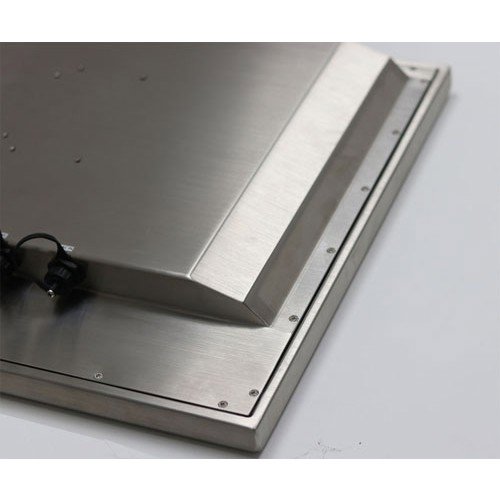

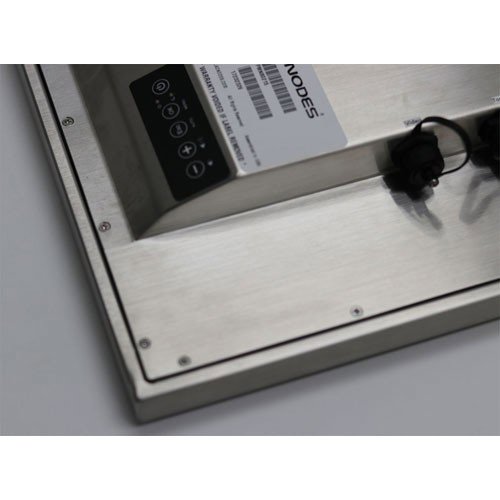

Stainless steel panel PC with a 15 inch 1024 x 768 LED backlight LCD monitor and full IP67/69K rated anti-corrosion stainless enclosure. The PC is powered by the Celeron N2930 1.83GHz CPU and features a 5-wire resistive type touchscreen and extended working temperatures from -10°C to 55°C. Option for Core i5 5200U/Core i7 6600U CPU, Capacitive type touch screen, high brightness display, optical bonding, and DC power input.
| Material | SUS316 stainless steel IP67/69K rated anti-corrosion stainless steel |
| LCD panel | Size: 15 inch Max Resolution: 1024 x 768 Brightness (cd/m²): 250 Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): -70~70 (H); -60~60 (V) Colors: 16.2M, 6 bits + FRC Option for high brightness / optical bonding |
| Touch screen | 5-wire Resistive type touch screen monitor Option for Capacitive type touch screen |
| System | CPU: Celeron N2930 1.83GHz (std) Option for Core i5 5200 / Core i7 6600 Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB) Storage: 1 x 128GB SSD (Max. 250GB) Ethernet: 1 x Gigabit LAN Option for WiFi and Bluetooth module |
| Connectors - C16 / IP Rated | Serial Ports: 1 x RS232 (IP67) USB Ports: 2 x USB (IP67) Ethernet: 1 x RJ45 GbE LAN (IP67) Power: 1 x AC Input (IP66) |
| Cables | IP66 rated 6ft extended cables included for each I/O |
| Power Supply | Power Input: 110/220VAC power input Power Consumption: 30W (typ) Option for 9 to 36V DC power input |
| Mounting | VESA mount (100 x 100mm) Option for panel mount with gasket |
| Environmental | Operating Temperature: -10°C to 55°C (14°F to 131°F) Relative Humidity: 10% to 95%, non-condensing IP Grade: Full-IP67/69K |
| Weight | 16.53 lb / 7.5 kg |
| Dimension | 16.14”(W) x 2.15”(D) x 12.20”(H) |
