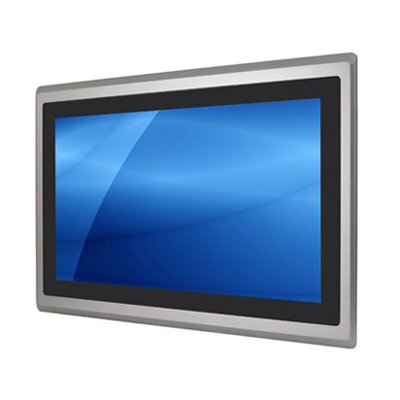

PC9156
15.6" 1366 x 768 industrial HMI computer with Intel Celeron or Core i CPU, DDR memory, SATA MO-297 SSD bay, and an aluminum die-casting chassis.
Key Features
- ✓15.6 inch 1366 x 768 industrial LCD panel
- ✓IP66 compliant aluminum die-casted front bezel
- ✓Integrated Intel Celeron or Core i processors
- ✓Multiple I/O ports including USB, COM, LAN, Audio, and DP
- ✓Resistive touch screen, option for Projective Capacitive touch screen
- ✓Option for 1000-nit high brightness display or optical bonding
- ✓Option for -20°C to 60°C wide range working temperature
- ✓Wide range 9 to 36V DC power input
The PC9156 is a 15.6" fanless panel PC featuring an aluminum die-casting chassis with IP66 rated waterproof flat front bezel for harsh working environments, such as manufacturing systems or the factory floor. Powered by the Intel Celeron or Core i CPU with the Soc Chipset, this panel PC is a low-power, cost-effective solution ideal for many industrial applications. The panel PC features a Resistive type touchscreen, multiple I/O ports, and a 9 to 36V DC power input. Option for PCAP touchscreen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, and Windows OS.
| Material | Solid aluminum die-casting chassis IP66 compliant front panel |
| LCD Panel | Size: 15.6 inch TFT LCD Resolution: 1366 x 768 Brightness (cd/m²): 300 (A & B model); 400 (C model) Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 160/160 (A & B model); 170/160 (C model) Color: 16.7M MTBF (hrs): 50,000 |
| Touch Screen | Type: Resistive touch (Standard) / Projected Capacitive touch (Option) Light Transmission: Resistive 80% / Projectived Capacitive 90% Interface: USB |
| System | CPU: Intel Celeron N2930 (A model) / 6th Gen Core i3-6100 CPU (B model) / Celeron J6412 (C model) System Chipset: SoC Memory: DDR memory, up to 32GB for select models |
| Storage | A & B model: 1 x SATA MO-297 SSD bay C model: 1 x M.2 B-Key slot (Support SATA3; 2242/2280, Default 2242) |
| Expansion Slot | A & B model: 1 x internal mini-PCIe slot full size C model: 1 x mini-PCIe slot, 1 x M.2 E-key, 1 x Nano SIM Card Holder |

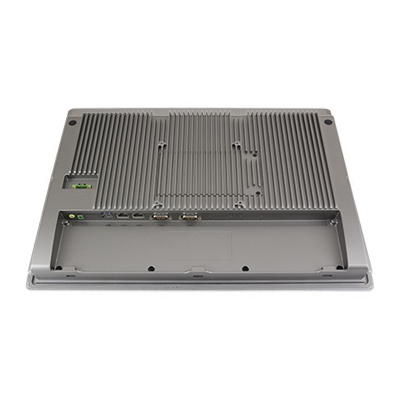

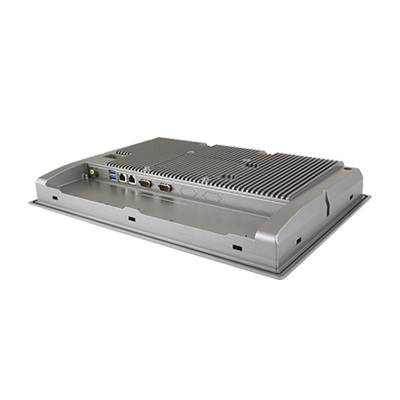

| Connectors | A & B model: 2 x USB 3.0 type A 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2 1 x Audio line out 2 x GbE LAN RJ-45 1 x 3-pin terminal block for DC power input 1 x 2-pin connector for power on/off button C model: 2 x USB 3.2 Gen2 Type A 2 x USB 2.0 Type A 1 x RS-232/422/485 (Default RS-232) 1 x Audio Line Out 2 x 2.5GbE LAN RJ-45 1 x DP 1 x 3-pin Terminal Block Connector 1 x 2-pin Power Switch Connector |
| Power Supply | Power Input: 9 to 36V DC power input Power Consumption: 34W (Max) Option for external AC power adapter |
| Mounting | Panel or VESA (100mm) mount |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 10 to 90% @ 40°C, non-condensing |
| Certification | CE, FCC Class A |
| Weight | 10.58 lb / 4.8 kg (estimated) |
| Dimension | 16.22"(W) x 2.32"(D) x 10.93"(H) |
This product does not have configurable options.
