PC9101

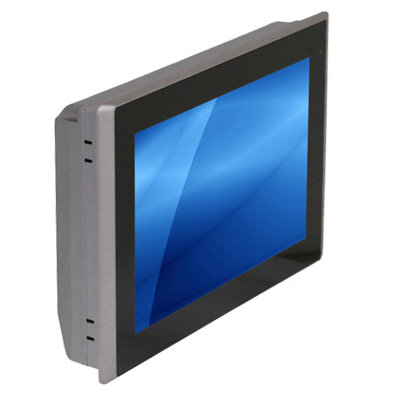

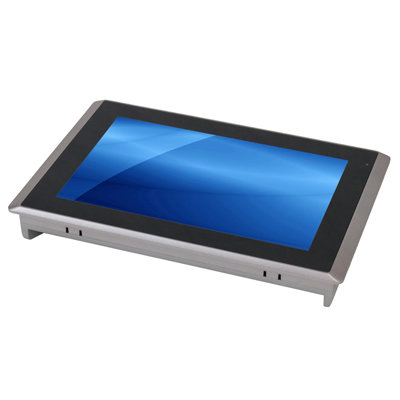

10.1" 1280 x 800 fanless industrial touch panel PC comes with Celeron N2930 CPU, 4GB DDR3L memory, IP66 rated flat front bezel, and an aluminum die-casting chassis.
Key Features
- ✓10.1 inch 1280 x 800 350-nit industrial LCD panel
- ✓Die-cast aluminum bezel with IP66 rated waterproof front bezel
- ✓Intel Celeron N2930 1.83GHz quad-core CPU with DDR3L memory
- ✓2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
- ✓Resistive type touch screen, option for Projected Capacitive touch screen
- ✓Option for 1000-nit high brightness display or optical bonding
- ✓Option for -20°C to 60°C wide range working temperature
- ✓Wide range 9 to 36V DC power input
The PC9101 is a 10.1 inch fanless industrial panel PC powered by the Intel Celeron N2930 1.83GHz CPU with DDR3L memory and SATA MO-297 SSD bay. The panel PC features an aluminum die-casting chassis with IP66 rated waterproof front bezel, various I/O ports, and a 9 to 36V DC power input. Option for a PCAP touch screen / 1000-nit high brightness / optical bonding, mini PCIe slot, -20°C to 60°C wide operating temperature, and external AC power adapter.
| Material | Aluminum die-casting chassis IP66 compliant front panel |
| LCD panel | Size: 10.1 inch TFT LCD Max. Resolution: 1280 x 800 Brightness (cd/m²): 350 Contrast Ratio (typ.): 800:1 Viewing Angel (H/V): 170° x 170° MTBF (hrs): 25,000 Color: 16.7M |
| Touch Screen | Resisitve type touch screen Light Transmission: 80% Interface: USB Projected Capacitive type touch screen (option) Light transmission: 90% Interface: USB |
| System | CPU: Celeron N2930 1.83GHz Memory: Onboard 4GB DDR3L 1333MHz Chipset: SoC |
| Storage | 1 x SATA MO-297 SSD bay |
| Expansion Slot | 1 x internal mini-PCIe slot full size |

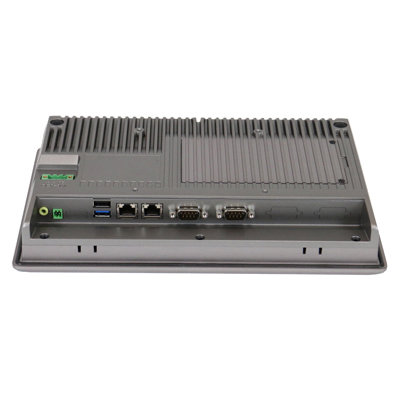

| Connectors | 2 x USB 3.0 type A 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2 1 x Audio Line Out 2 x GbE LAN RJ-45 1 x 3-pin terminal block for DC power input 1 x 2-pin connector for power on/off button Option for additional I/O ports |
| Power Supply | Power Input: 9 to 36V DC power input Power Consumption: 28W (Max) Option for external AC power adapter |
| Mounting | Panel or VESA (100mm) mount |
| Operating System | Supports Windows 7, Windows Embedded Standard 7, Windows 10 |
| Environmental | Operating Temperature: 0°C to 50°C Option for -20°C to 60°C wide range working temperature Storage Temperature: -30°C to 70°C Relative Humidity: 10 to 90% @40°C, non-condensing |
| Certification | CE, FCC Class A |
| Weight | 4.41 lb / 2 kg |
| Dimension | 11.22”(W) x 1.93”(D) x 7.44”(H) |
