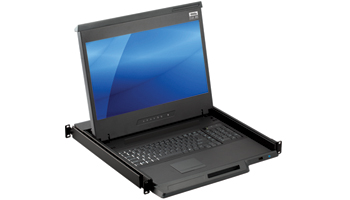

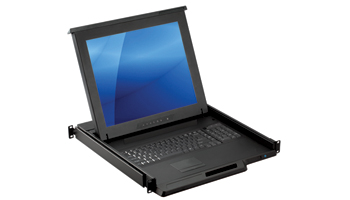

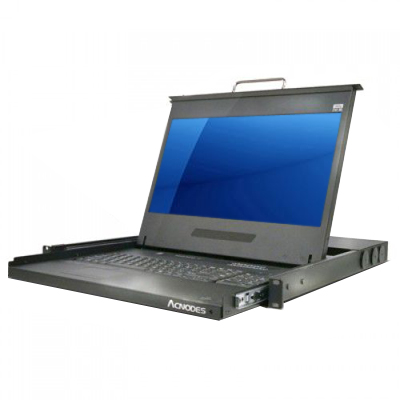

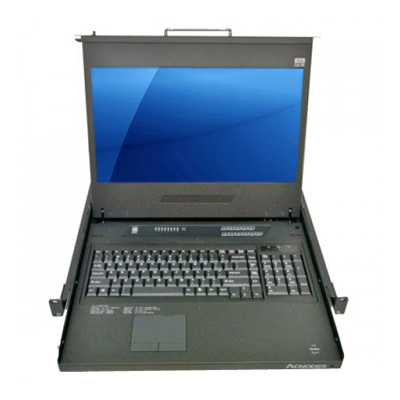

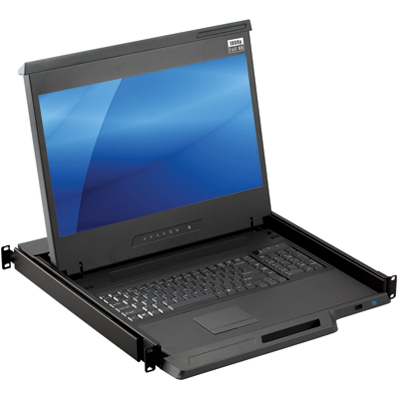

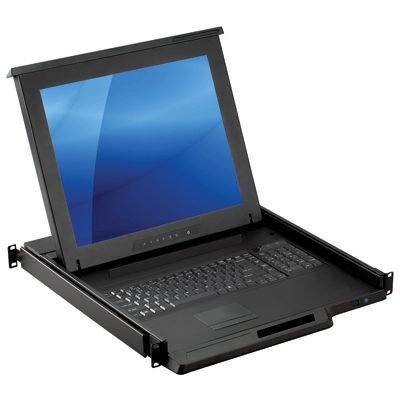

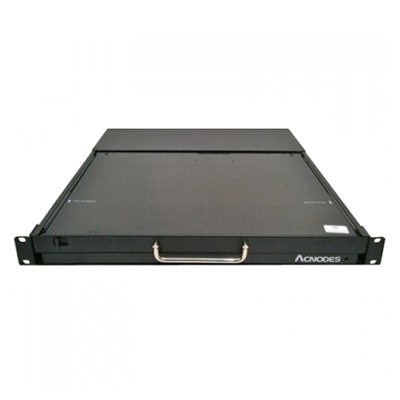

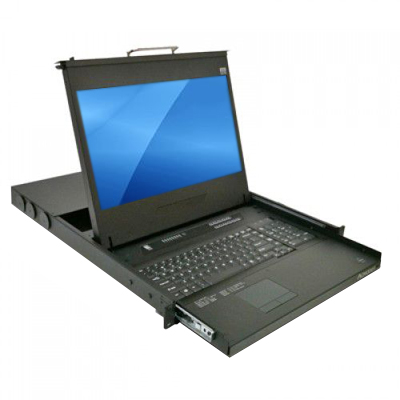

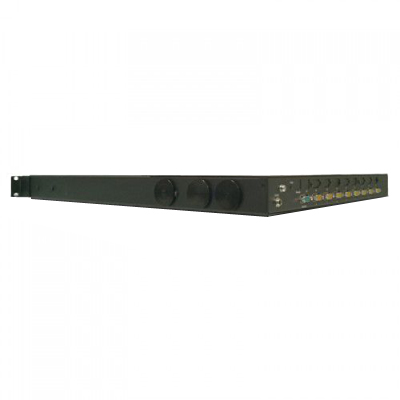

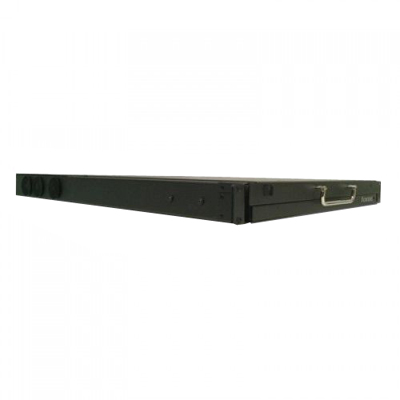

MKD6117
17.3" 1920 x 1080 FHD rackmount LCD console drawer with an 8 port KVM switch and 104-key keyboard with touchpad in a 1U high 22.8" depth rackmount drawer.
Key Features
- ✓1U high 22.8 inch depth rackmount drawer
- ✓17.3 inch 1920 x 1080 Full HD LCD monitor
- ✓VGA video input
- ✓8 port KVM switch
- ✓1 x local user console
- ✓104-key keyboard with touchpad pointing device
- ✓Option for 6ft VGA + USB KVM cables
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
The MKD6117 is a 17.3" rack KVM console supporting 1920 x 1080 FHD resolution with 16.7M colors. The console features a short-depth design that allows you to mount into only a 1U standard 19" rack mount space. The rack console features an integrated 8-port VGA KVM switch and keyboard with a touchpad pointing device. Users can easily control the monitor using the front OSD controls and keyboard hotkeys. Designed to meet professional and environmental demands, the MKD6117 is designed to allow users to control and switch between computers in an environment from a convenient 1U rack mount solution.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000:1 Viewing Angle: 178° x 178° Display Aarea (mm): 381.888H x 214.812V Colors: 16.7 M, 8-bit Backlight: LED MTBF (hrs): 15,000 |
| Video Input | VGA video input |
| Keyboard & Pointing device | 104-key keyboard with 2-button touchpad |

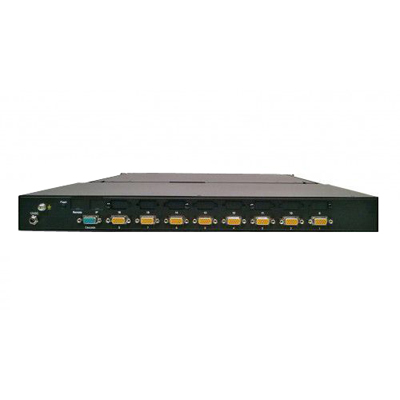

| KVM Port | 8 x KVM ports (1 x VGA, USB or PS/2 for keyboard & mouse) |
| KVM switch | Advanced user profiles and configurable on screen display (OSD) & hotkey combination Multilingual on screen display menu Supports eight characters password protection |
| Local Console | 1 x VGA port (resolution up to 1600 x 1200) 2 x USB ports for Keyboard & Mouse |
| Cascade port | 1 x in / out proprietary cascade KVM port Extended up to 128 servers by 8-level cascade |
| Color | Black (RAL 9005) |
| Front Panel Control | Power on/off switch OSD (on screen display) 1 x bank number LED indicator 8 x KVM ports LED indicators for On-line / Active / Remote 10 x KVM channel membrane buttons 1 x bank membrane button |
| KVM Cables (Option) | Option for 6ft / 10ft / 15ft VGA + USB KVM cables |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 34W |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity:5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 25.5 lb / 11.6 kg |
| Dimension | 17.4"(W) x 22.8"(D) x 1.73”(H) |
