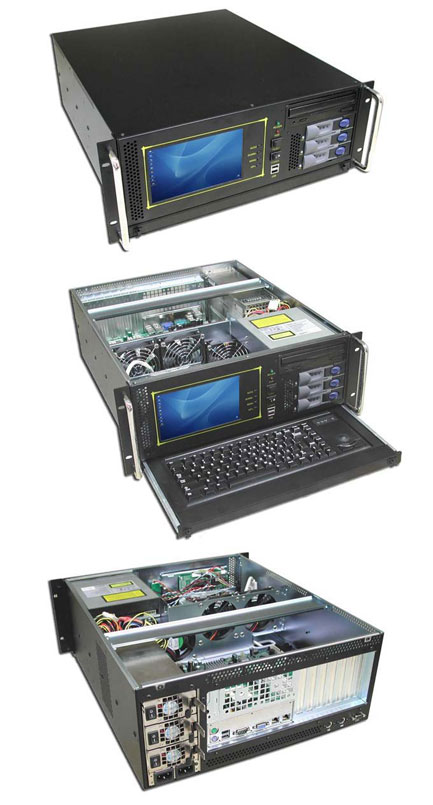

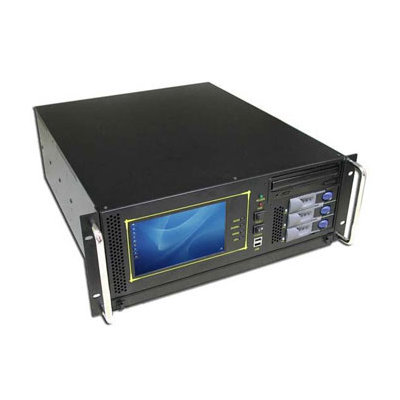

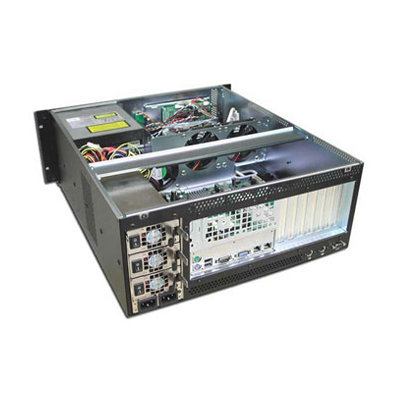

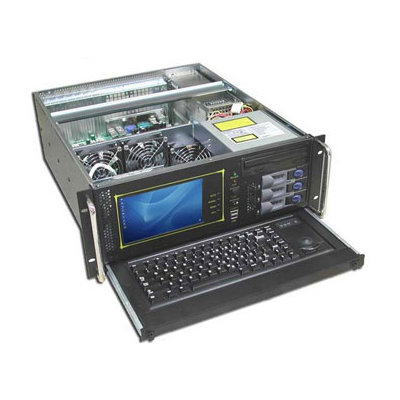

LW8441A
4U rackmount LCD workstation with a 6.4" 640 X 480 LCD monitor with touch screen, long-life ATX M/B, 3 x hot-swappable SATA HD trays, and an 84-key keyboard with trackball.
Key Features
- ✓4U 20.6" depth rackmount computer
- ✓6.4" 640 x 480 LCD panel with touch screen
- ✓Built-in 84-key keyboard with 2-button trackball
- ✓Intel 10th generation processors
- ✓Long-life industrial ATX motherboard
- ✓3 x 3.5" hot-swappable SATA HD trays
- ✓1 x 5.25" external & 3 x 3.5" internal drive bay
- ✓7 x PCI/PCIe open expansion slots
- ✓380W ATX power supply
The LW8441A is a 4U rackmount workstation with a 6.4-inch 640 x 480 LCD touch screen panel. The system utilizes the 10th generation Intel processors with a long-life industrial ATX motherboard. It has 7 x PCI/PCIe open expansion slots, 3 x hot-swappable SATA HD trays, 1 x DVD-RW open bay, 84-key keyboard with 2-button trackball, and front USB ports in a 4U high 20.6" depth rack chassis.
| Material | Heavy duty cold rolled electroplated steel EIA RS-310C 19" rackmount standard |
| LCD Panel W/ Touch screen | Size: 6.4 inch Resolution: 640 x 480 Front 5 button monitor control & rear VGA input Resistive-type touch screen with USB connector |
| Keyboard and trackball | 84-key keyboard that slides from the bottom of the chassis (rear PS/2 type connector) 2-button trackball (rear PS/2 connector) |
| Standard ATX M/B(Long Life Cycle) | CPU: Intel 10th generation processors Memory: 4 x DDR4 memory socket (up to 64GB) On-board Intel Graphic On-board Ethernet LAN / Audio SATA hard drive 4 x USB ports 1 x Parallel port 2 x PS/2 ports for keyboard / mouse |
| Drive Capacity | 3 x hot-swappable SATA trays 1 x 5.25” external drive bay 3 x 3.5" internal hard drives |
| Expansion slot | 7 x open expansion slots |
| Front panel controls | Power on/off switch System reset button 2 x USB ports 2 x LED indicator for Power & HD Activity |
| Cooling fan | Front Chassis: 2 x 92mm (51CFM each) Rear Chassis: Optional for 2 x 60mm (23.5CFM) |
| Power supply | 380W ATX power supply Option for 500W or 650W ATX power supply |
| Cable | 1 x 6' cable for VGA connector 1 x 8' cable for keyboard and trackball |
| Color | Black |
| Environmental | Operation Temperature: 0°C to 50°C Humidity: 5% ~ 95%, non-condensing |
| Weight | 50 lb / 22.7 kg |
| Dimension | 19"(W) x 20.6"(D) x 7"(H) |
