LW8330A

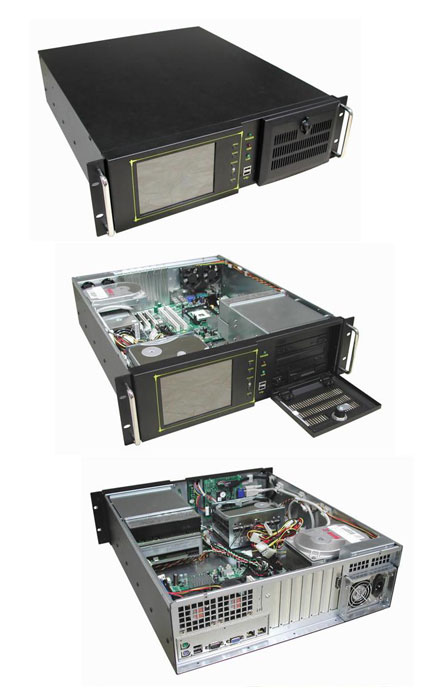

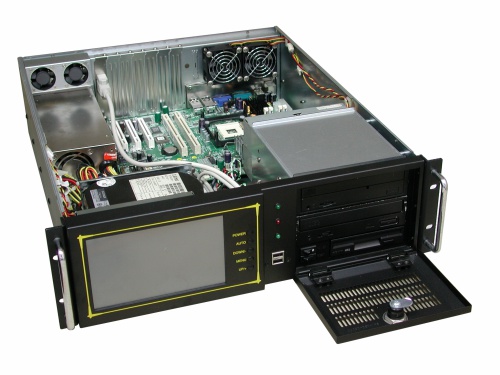

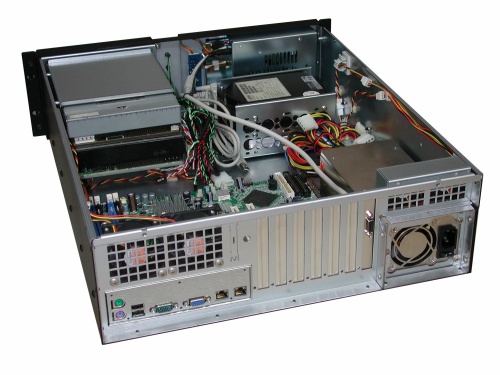

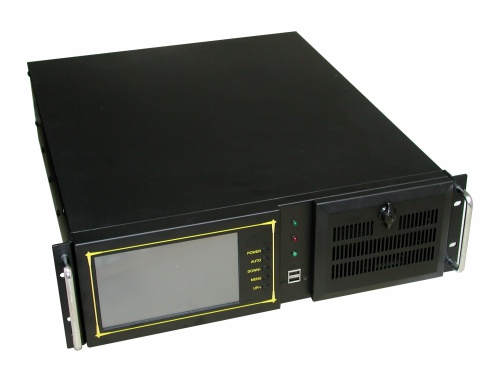

Rackmount LCD workstation with a 7" 800 x 480 LCD monitor, 10th generation Intel processors, long-life industrial ATX M/B in a 3U high 20.6" depth rack chassis.
Key Features
- ✓3U 20.6" depth rackmount computer
- ✓7" 800 x 480 TFT LCD panel
- ✓Front door with thumb twist keylock
- ✓Intel 10th generation processors
- ✓Long-life industrial ATX motherboard
- ✓2 x 5.25" & 1 x 3.5" external drive bay
- ✓3 x 3.5" internal drive bays
- ✓7 x PCI/PCIe expansion slots
- ✓500W 2U single ATX power supply
The LW8330A is a 3U rackmount workstation with a 7-inch 800 x 480 TFT LCD monitor. The system utilizes the 10th generation Intel processors with a long-life industrial ATX motherboard. It has 7 x expansion slots, 2 x 5.25" external, 1 x 3.5" external, and 3 x 3.5" internal drive bays in a 3U high 20.6" depth rack chassis.
| Material | Heavy duty cold rolled electroplated steel EIA RS-310C 19" rackmount standard |
| LCD Panel W/ Touch Screen | Size: 7 inch Resolution: 800 x 480 Display Colors: 262,144 Colors Front 5 button monitor control and rear VGA input Resistive-type touch screen with USB connector |
| Standard ATX M/B(Long Life Cycle) | CPU: Intel 10th generation processors Memory: 4 x DDR4 memory socket (up to 64GB) On-board Intel Graphic On-board Ethernet LAN / Audio SATA hard drive 4 x USB ports 1 x Parallel port 2 x PS/2 ports for keyboard / mouse |
| Drive Capacity | 2 x 5.25" external drive bays 1 x 3.5” external drive bay 3 x 3.5" internal hard drive bays |
| Expansion slot | 7 x expansion slots |
| Video connector | 1 x VGA D-Sub 15pin |
| Cooling fan | Front Chassis: 2 x 60mm (23.5CFM each) Rear Chassis: 2 x 40mm (7CFM each) |
| Front Door | Single door with thumb twist keylock |
| Front panel controls | Power on/off switch System reset button 2 x USB ports |
| System Indicator | LED indicators for Power ON/OFF, HDD Activity, LAN |
| Power supply | 500W 2U single ATX power supply Option for 550W 2U redundant ATX power supply |
| Cable | 1 x 6' cable for VGA connector |
| Color | Black |
| Environmental | Operating Temperature: 0ºC to 50ºC Humidity: 5% ~ 95%, non-condensing |
| Weight | 40 lb / 18.14 kg |
| Dimension | 19"(W) x 20.6"(D) x 5.2"(H) |
This product does not have configurable options.
Request Custom Quote →
