KDS6198
KDS6198
KDS6198
KDS6198

KDS6198

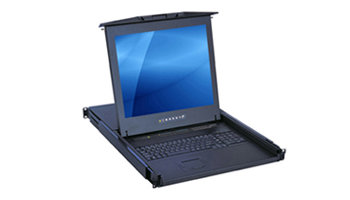

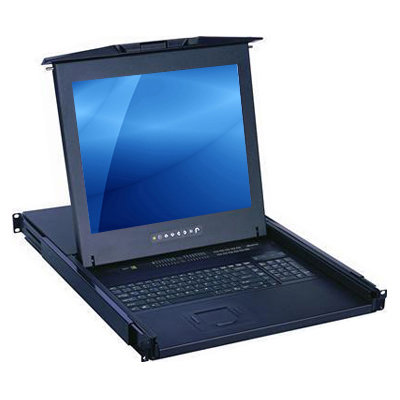

19 inch 1280 x 1024 / 1152 x 900 rack LCD console with a 104-key keyboard with Sun keys, 8 port KVM switch, and a 1U high 24.5 inch depth rackmount drawer.

Key Features

  • ✓1U high & 24.5 inch depth rackmount drawer
  • ✓19 inch 1280 x 1024 industrial LCD panel
  • ✓Supports 1152 x 900 Sun native resolution
  • ✓104-key keyboard with Sun function keys & 10-key keypad
  • ✓3-button touchpad, option for trackball
  • ✓8 port USB KVM switch
  • ✓110/220VAC power supply adapter

NOTICE: PRODUCT CURRENTLY UNAVAILABLE. PLEASE VISIT SUN MICRO RACK LCD CONSOLE FOR RELATED PRODUCTS.

Rack KVM console supporting 1280 x 1024 and 1152 x 900 display resolution with an 8 port KVM switch and Sun function keyboard designed for industrial IPC applications.
MaterialHeavy-duty steel
Keyboard and TouchpadSUN-compatible keyboard integrated with 3-button touchpad Option for keyboard with trackball
LCD PanelSize: 19" Resolution: 1280 x 1024 Sun resolution: 1152x900 Auto switch between Sun and PC display resolution Brightness: 300nit Contrast Ratio: 1000 : 1 Response time: Tr=1.3ms Display Area: 338 x 270mm Viewing Angle: 160° Horizontal and 160° Vertical Backlight: 4 CCFTs Colors: 16.7M colors MTBF: 50,000 hours
Video InputAnalog RGB, 0.7Vp-p
Plug & Play DDCEDID 1.3
Resolution720 x 400, 70Hz 640 x 480, 60/ 70/ 72/ 75 Hz 800 x 600, 60/ 70/ 72/ 75Hz 1024 x 768, 60/ 70/ 75 Hz 1152 x 864, 60/ 70/ 75Hz 1280 x 720, 60/ 75Hz 1280 x 1024, 60/ 70/ 75 Hz 1152 x 900, 66/ 76Hz
KVM Switch8 port USB KVM switch Connector type: proprietary DB-15 KVM connector Cascades level: 8 levels, up to 128 servers Resolution: 1,600 x 1,200 Supprot hot-plug cable and built-in KVM switch buttons Multi-platform: Mix PCs, Suns, PCs, IBMs, HPs, Compaq & DELL O/S support: Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix
KVM ManagementMultilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese Hot key combination: Scroll-lock, Cap-lock, Num-Lock, Alt, Ctrl & Win Security: Password enable & disable, up to 8 users profile for port access PC Selection: Front button, OSD menu & hotkey
KVM switch Connector8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse (Combo Interface, USB or PS/2) 1 x D-sub 15 pin for cascades port
Cable8 x 6' 4-in-1 KVM cable for VGA / Keyboard /mouse Option for 10' or 15' KVM side: 1 x D-sub 15 pin proprietary KVM connector Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Drawer DesignHigh load-rating slide rail with angle bracket Extension up to 31.1inch depth Option for extension bracket up to 36 inch depth
Power supplyAuto-sensing 100 to 240VAC, 50/60Hz Max. 48Watt, Standby 5W
DC Power (Option)DC Power input with 12V, 24V, 48V selection
ColorBlack
EnvironmentalOperating Temperature: 0ºC to 50ºC Storage Temperature: -5ºC to 60ºC Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 5~500Hz 1G RMS random vibration
SafetyFCC, CE
Weight33 lb
Dimension17.4"(W) x 24.5"(D) x 1.73"(H)
LCD monitor *
8 port KVM switch *
keyboard + Point Device *
Power Supply *
