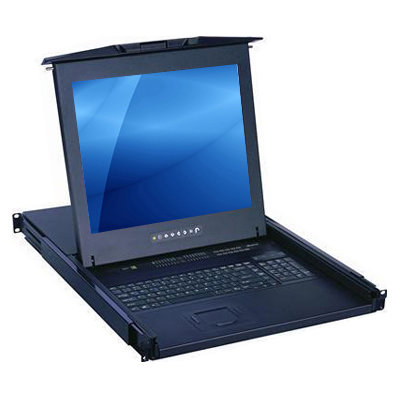

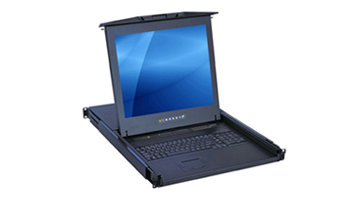

17 inch 1280 x 1024 / 1152 x 900 LCD console with a 104-key keyboard with Sun function keys, 8 port KVM switch, and a 1U high and 22.84 inch depth rackmount drawer.
Key Features
✓1U high & 22.84 inch depth rackmount drawer
✓17 inch 1280 x 1024 industrial LCD display
✓Supports 1152 x 900 Sun native resolution
✓104-key keyboard with built-in Sun keys & 10-key keypad
Rack KVM console with 17 inch 1280 x 1024 and 1152 x 900 industrial monitor, 104-key keyboard with SUN function keys and 3-button membrane touchpad, 8 port KVM switch, and a 1U high 22.84 inch depth rackmount drawer.
Material
Heavy-duty steel
LCD Panel
Size: 17 inch
Resolution: 1152 x 900 (Direct) / 1280 x 1024 (Native)
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Response Time (ms): 5
Display Area (mm): 337.92H x 270.33V
Viewing Angle (H/V): 170° x 160°
Backlight: LED
Colors: 16.7M
MTBF (hrs): 30,000
Keyboard & Pointing Device
104-key keyboard with full numerical pad and SUN function - USB interface
Pointing Device: 3-button touchpad (standard)
Option for keyboard with trackball
Video Input
Analog RGB, 0.7Vp-p
Plug & Play DDC
EDID 1.3
KVM Switch
Number of Ports: 8
Connector: Proprietary DB-15 KVM connector
Cascades Level: Up to 128 servers by 8-level cascade
Hardware Compatibility: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
O/S Support: Windows / Linux / Unix / Mac OS
KVM Management
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey Combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey
KVM switch Connector
8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port
Cable
8 x 6' 4-in-1 KVM cable for VGA / Keyboard / Mouse
Option for 10' or 15' KVM cable
KVM Side: 1 x D-sub 15 pin proprietary KVM connector
Server Side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Drawer Design
High load-rating slide rail with angle bracket
Extension up to 31.1” depth
Option for extension bracket up to 36" depth
Power supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 55W, Standby 34W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
