KDN9192

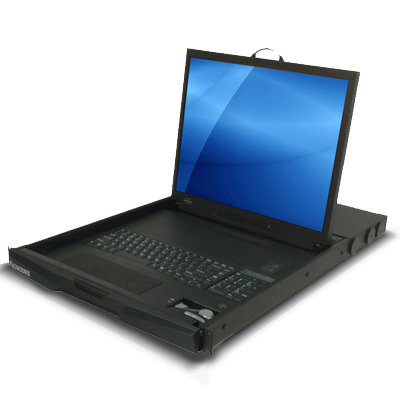

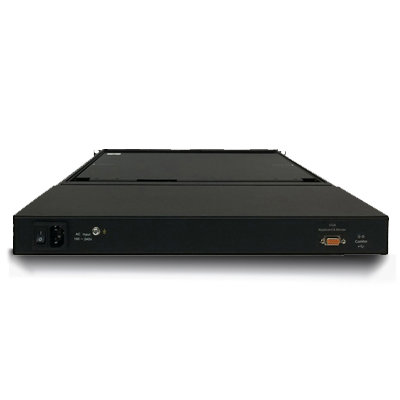

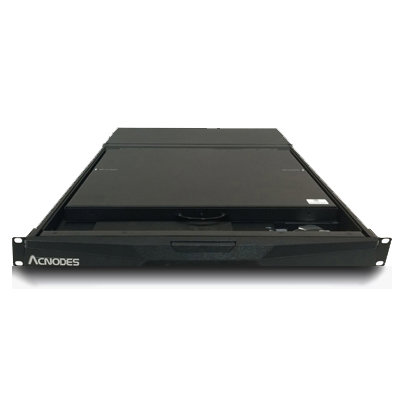

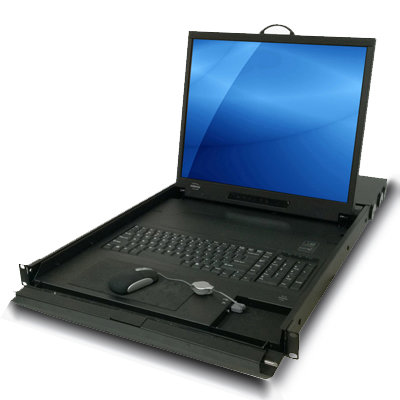

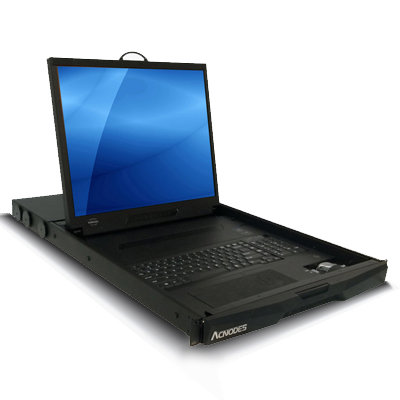

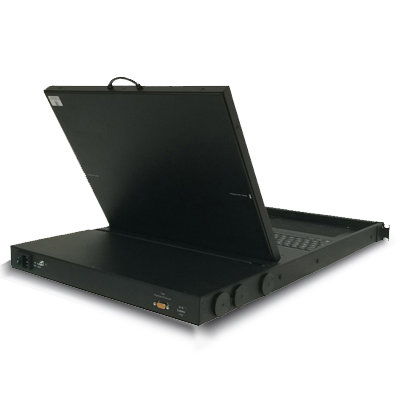

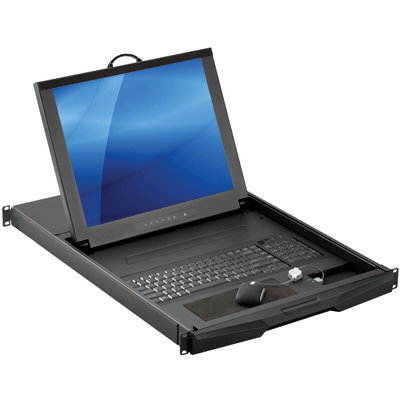

19" 1280 x 1024 rack LCD console with a 104-key keyboard with standard optical mouse and VGA video input in a 1U high 27.6" depth rackmount drawer.
Key Features
- ✓19" rack LCD console drawer
- ✓Supports 1280 x 1024 native resolution
- ✓VGA video input
- ✓104-key keyboard with a true optical mouse
- ✓Option for DVI-D, HDMI, BNC, or 3G-SDI input
- ✓27.6" (700mm) drawer design for standard racks
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The KDN9192 is a 19" rack LCD console drawer supporting 1280 x 1024 native resolution, VGA video input, and a 104-key keyboard with a true optical mouse in a 1U high 27.6" depth rack drawer. The console features a 1U slim design with a front handle and 2-point lock and front OSD buttons, providing users with a convenient way to control device settings.
| Material | Heavy-duty steel |
| LCD Monitor | Size: 19 inch Native Resolution: 1280 x 1024 Brightness (cd/m²): 250 Contrast Ratio (typ): 1000:1 Colors: 16.7 M Viewing Angle: 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.294 Display Area (mm): 376.32H x 270.33V Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 |
| Keyboard & Optical Mouse | 104-key keyboard integrated with wired optical mouse |
| Video input | VGA video input |
| Integrated KVM (Option) | Integrated KVM switch is only available upon request Option for VGA KVM, DVI-D KVM, Cat6 KVM, or Matrix Cat6 KVM integration |
| Cable | 1 x 6ft VGA USB console cable included |
| Mounting Distance | 28 ~ 36.2 inch (710 ~ 920 mm) |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50/60Hz Power Consumption: Max. 22W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | FCC, CE, RoHS, TAA Compliant |
| Weight | 33.7 lb / 15.3 kg |
| Dimension | 17.4"(W) x 27.6"(D) x 1.73"(H) |
