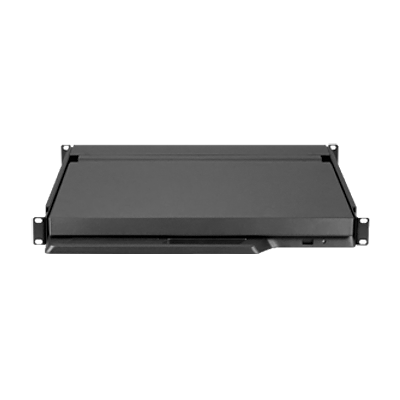

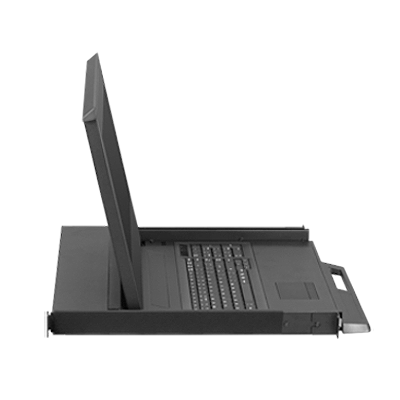

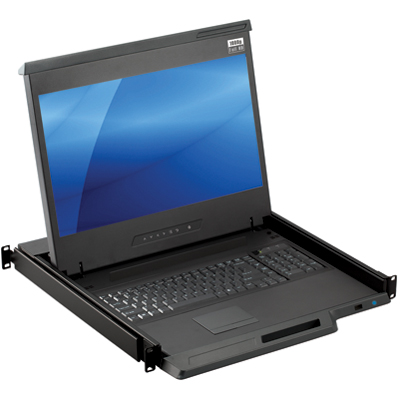

KDF81712
17.3" 1920 x 1080 FHD rackmount LCD console drawer with a 12-port DVI-D KVM switch, 104-key keyboard with touchpad, and a 1U high 22.8" depth sliding drawer.
Key Features
- ✓17.3" Full HD rack LCD console drawer
- ✓Supports 1920 x 1080 native resolution
- ✓104-key keyboard with 2-button touchpad - USB
- ✓Integrated 12-port DVI-D KVM switch
- ✓1 x local console
- ✓Option for 6ft or 15ft DVI-D USB KVM cables
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
- ✓1U high 22.8" (580mm) depth rackmount drawer
Rackmount LCD console drawer with a 17.3 inch 1920 x 1080 Full HD LED backlight LCD monitor, 104-key keyboard with 2-button touchpad, and a 1U high 22.8 inch depth rackmount drawer. The rack console is integrated with a 12-port DVI-D KVM switch with 1 x local console. Option for DVI-D + USB KVM cables.
| Material | Heavy-duty steel |
| LCD Panel | Size: 17.3" Native Resolution: 1920 x 1080 Brightness (cd/m²): 300 Contrast Ratio (typ.): 1000: 1 Colors: 16.7 M, 8-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.1989 Display Area (mm): 381.888H x 214.812V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Backlight: LED MTBF (hrs): 15,000 |
| Keyboard & pointing device | 104-key keyboard with 2-button touchpad - USB |
| KVM Port | Number of Ports: 12 x DVI KVM ports Connector: DVI-D connector + USB 3.0 connector (for keyboard, mouse & audio) |
| KVM Usage | Advanced user profiles and configurable on- screen display (OSD) & hotkey combination Multilingual on-screen display menu Supports eight character password protection |
| Front Panel Control | Power on/off switch OSD (on screen display) 1 x bank number LED indicator 12 x KVM ports LED indicators for on-line / Active / Remote 10 x KVM channel membrane buttons 1 x bank membrane button |
| KVM Cables (Option) | Option for 6ft or 15ft DVI-D + USB KVM cables |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 34W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black (RAL 9005) |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 25.5 lb / 11.6 kg |
| Dimension | 17.4"(W) x 22.8"(D) x 1.73”(H) |
