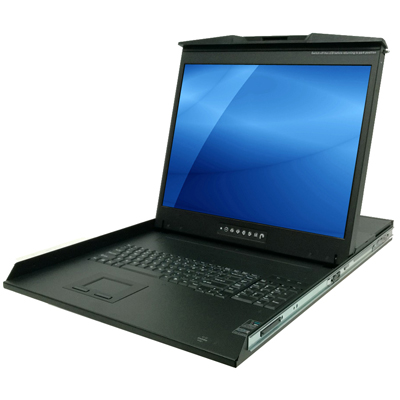

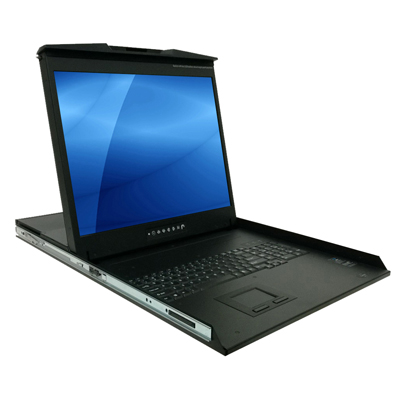

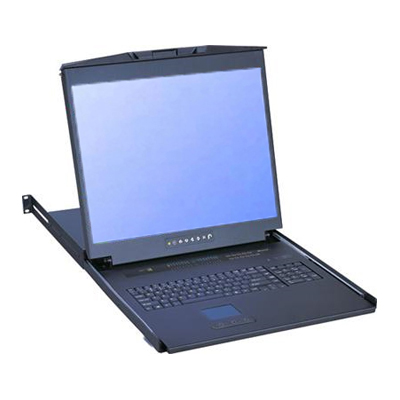

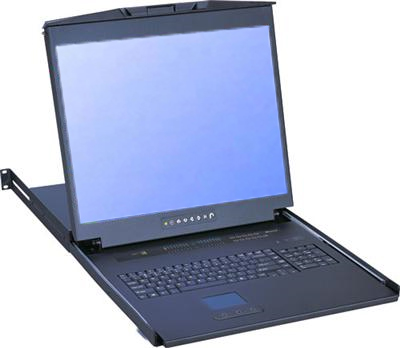

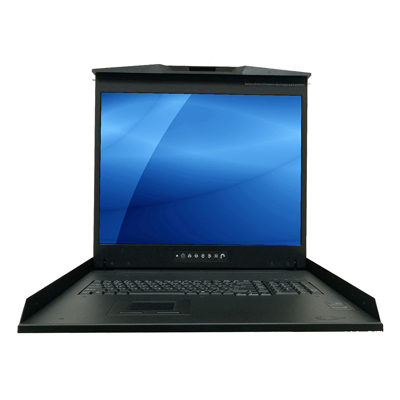

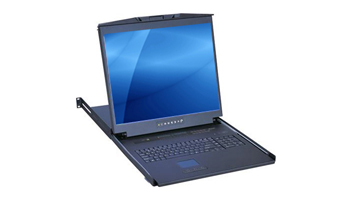

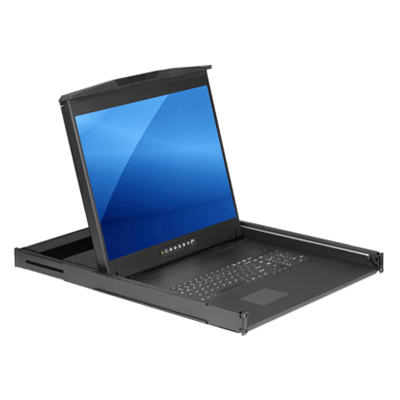

KD8220
20.1" 1600 x 1200 rack LCD console with VGA video input and 104-key keyboard with touchpad in a 1U high 25.6" depth rackmount drawer with pullout sliding rail.
Key Features
- ✓20.1" rack LCD console drawer
- ✓Supports 1600 x 1200 native resolution
- ✓VGA video input
- ✓Option for DVI-D, HDMI, BNC, or 3G-SDI input

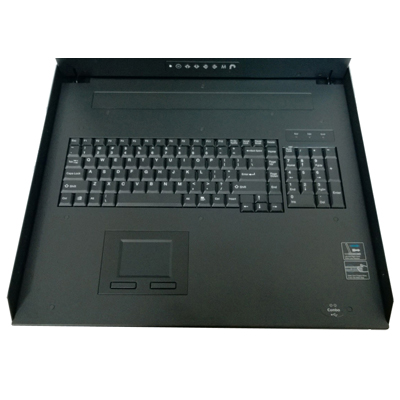

- ✓104-key keyboard with touchpad
- ✓Two point lock and one man installation design
- ✓1U high 25.6" (650mm) depth drawer design
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input
The KD8220 is a 1U 20.1" rack LCD console drawer supporting 1600 x 1200 native resolution, VGA video input, and a 100/240VAC power input in a 1U high 25.6" depth rack drawer designed for a standard 19" rack mount space. The console features a 2-point lock with an LCD membrane that provides users with a convenient way to control device settings.
| Material | Heavy-duty steel |
| LCD Monitor | Size: 20.1 inch Native Resolution: 1600 x 1200 Brightness (cd/m²): 300 Contrast Ratio (typ.): 800:1 Colors: 16.7 M Viewing Angle (H/V): 178° x 178° Response Time (ms): 16 Dot Pitch (mm): 0.255 Display Area (mm): 408H x 306V Surface Treatment: Anti-glare, Hard-coating Surface Hardness: 3H Blacklight: CCFL MTBF (hrs): 45,000 |
| Keyboard & Touchpad | 104-key keyboard with 2-button touchpad Option for keyboard with SUN keys |
| Video Input | VGA video input Option for DVI-D + HDMI, BNC + S-Video, or 3G-SDI input |
| Front Panel Control | Power on/off switch OSD (On Screen Display) |
| Mounting Distance | 26 ~ 34.3 inch (660 ~ 870 mm) |
| Cable | 1 x 6ft VGA USB console cable included |
| Power Supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 45W, Standby 2W Option for 12V / 24V / 48V / 125V DC power input |
| Color | Black |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | FCC, CE, RoHS, TAA Compliant |
| Weight | 31.9 lb / 14.5 kg |
| Dimension | 17.4"(W) x 25.6"(D) x 1.73”(H) * All dimensions stated are subject to change if options are selected / integrated to base mode |
