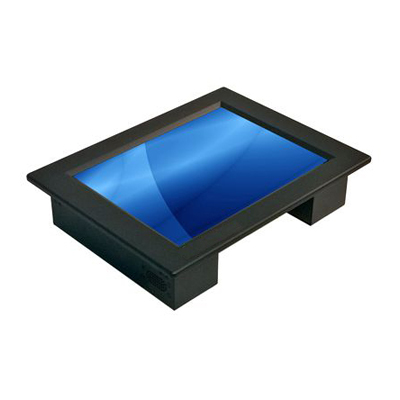

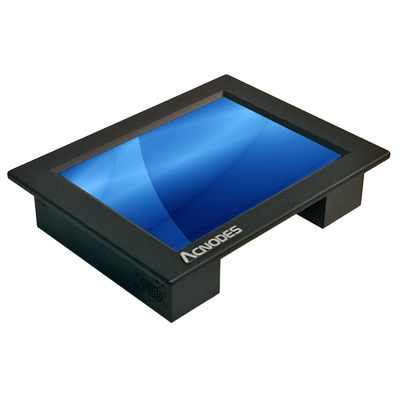

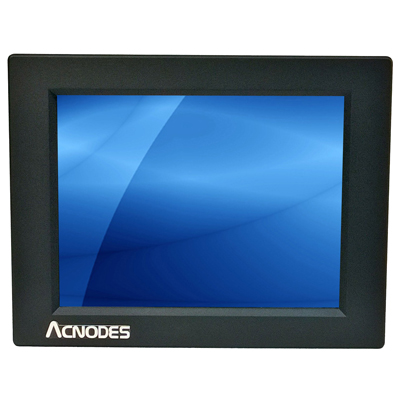

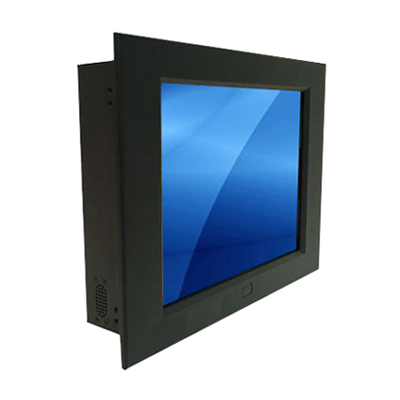

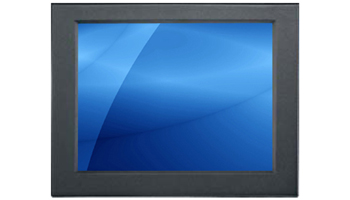

APM5104
10.4" industrial LCD monitor supporting 800 x 600 native resolution, VGA video input, VESA (75 x 75mm) mount, 100/240VAC power input, and an aluminum front bezel.
Key Features
- ✓10.4" industrial LCD monitor
- ✓Supports 800 x 600 native resolution
- ✓VGA video input
- ✓Option for HDMI, Audio, 3G-SDI, or MCS
- ✓Option for Resistive or PCAP touch screen - USB
- ✓Option for front IP65 / NEMA4 rated protection
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- ✓Option for 12V / 24V / 48V / 125V DC power input

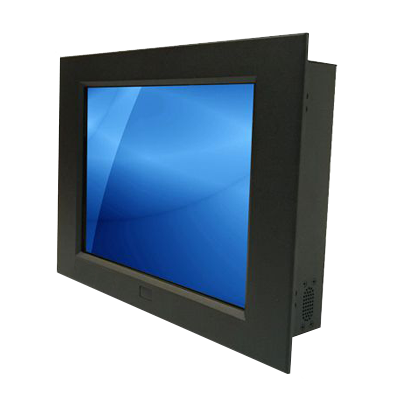

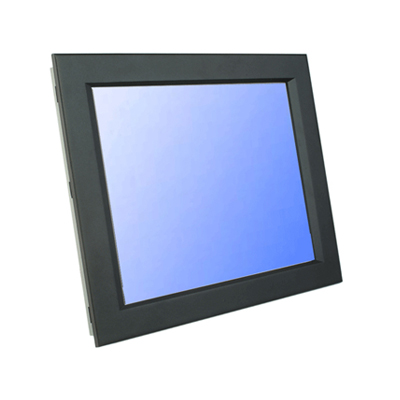

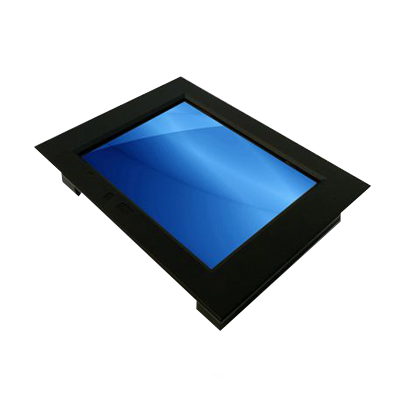

The APM5104 is a 10.4" industrial LCD monitor supporting 800 x 600 resolution and VGA video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5104 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology embedded modules, and DC power input.
| Material | 8mm aluminum front bezel Rear rugged heavy-duty metal construction Option for IP65/NEMA4 rated front bezel |
| LCD Panel | Size: 10.4 inch Native Resolution: 800 x 600 Brightness (cd/m²): 230 Contrast Ratio (typ) : 500:1 Colors: 262 K Viewing Angle (H/V): 160° x 130° Response Time (ms): 35 Dot Pitch (mm); 0.213 Display Area (mm): 211.2H x 158.4V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 30,000 |

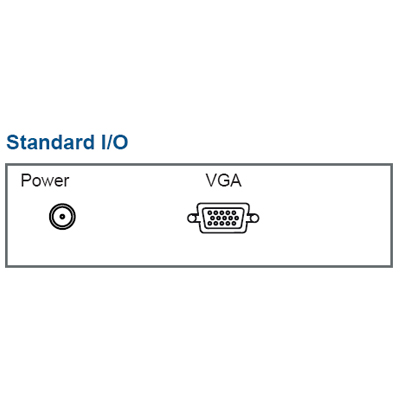

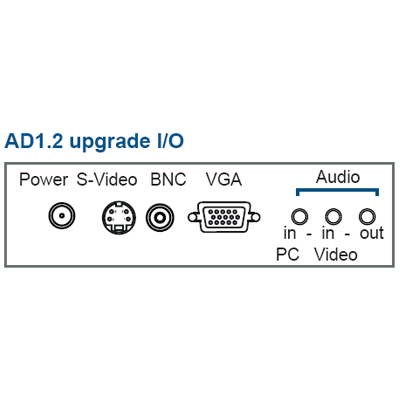

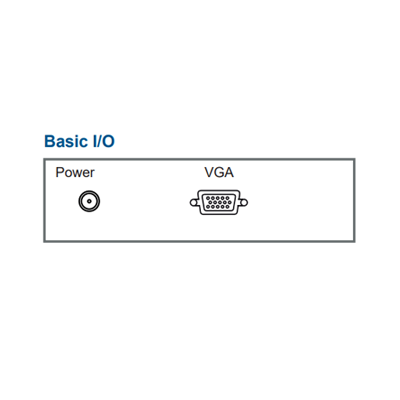

| Video input | Standard: VGA Option: DVI-D, HDMI, Audio, 3G-SDI, or MCS multi-display control |
| Touch screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port Lockable USB connector |

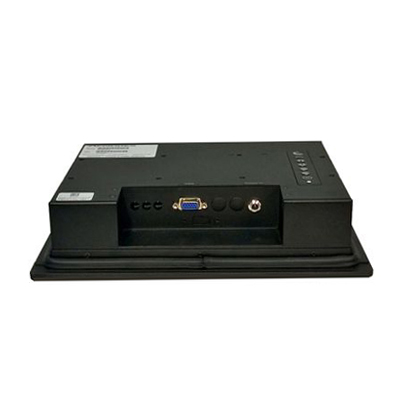

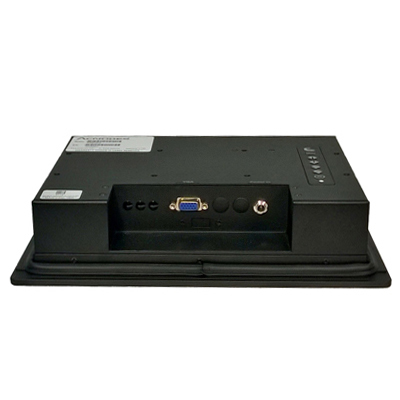

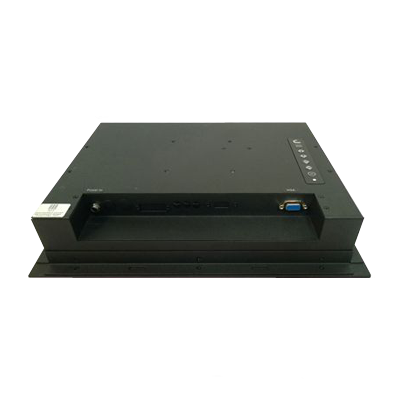

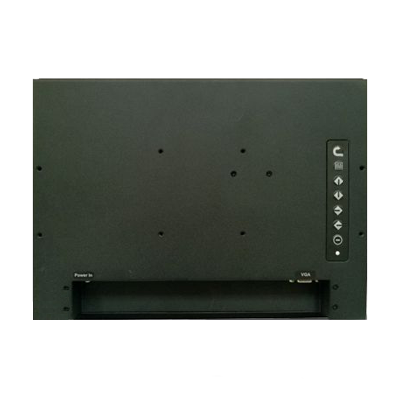

| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | VESA (75 x 75mm) mount |

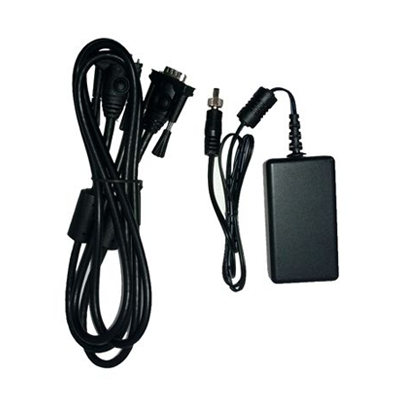

| Cable | 1 x 6ft VGA cable included 1 x Power adapter included 1 x Power cord included |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 11W, Standby 4W Option for 12V / 24V / 48V /125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 5.7 lb / 2.6 kg |
| Dimension | 11.2"(W) x 2.5"(D) x 8.7"(H) |
