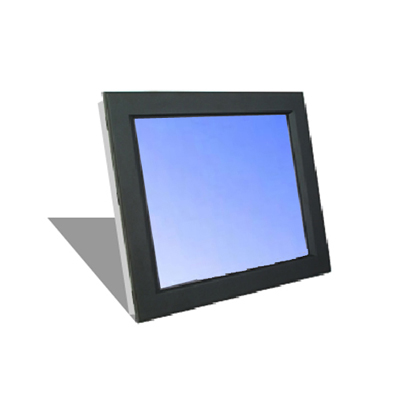

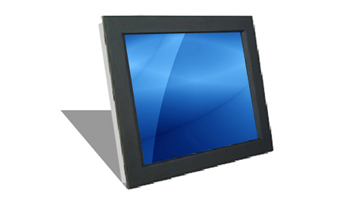

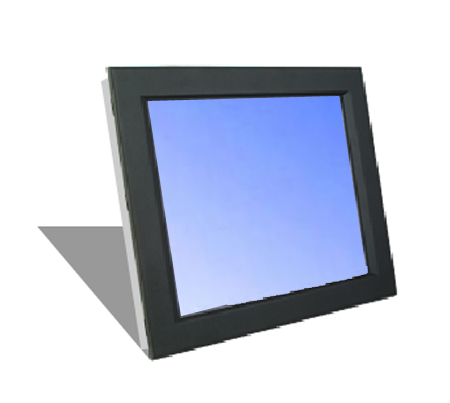

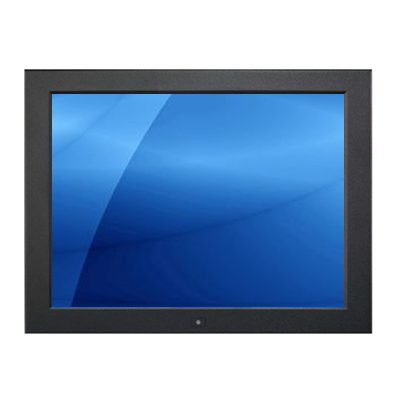

APH8190
19" sunlight readable display with 1280 x 1024 resolution, VGA + HDMI(no speaker) input, panel or VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.
Key Features
- ✓19" high brightness industrial LCD monitor
- ✓Supports 1280 x 1024 native resolution
- ✓1000-nits high brightness sunlight readable display
- ✓VGA + HDMI(no speaker) video input
- ✓Option for BNC, Audio, 3G-SDI, or MCS control
- ✓Option for Resistive or PCAP touch screen - USB
- ✓VESA (100 x 100mm) mount ready
- ✓Auto-sensing 100 to 240VAC, 50 / 60Hz power input
The APH8190 is a 19" high brightness sunlight readable monitor supporting 1280 x 1024 resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH8190 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input.
| Material | 8mm aluminum front bezel Rear rugged heavy-duty metal construction Option for IP65/NEMA4 rated front bezel |
| LCD Panel | Size: 19 inch Native Resolution: 1280 x 1024 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 1000:1 Colors: 16.7 M Viewing Angle (H/V): 170° x 160° Response Time (ms): 5 Dot Pitch (mm): 0.294 Display Area (mm): 376.32H x 301.06V Surface Treatment: Haze 25%, Hard-coating Surface Hardness: 3H Backlight Type: LED MTBF (hrs): 30,000 |
| Video input | Standard: VGA + HDMI(no speaker) Option: BNC, 3G-SDI input, or MCS multi-display control |
| Touch screen (Option) | Resistive 1-pt touch screen - USB port Projected Capacitive 10-pt touch screen - USB port Lockable USB connector |
| Dimming (Option) | Auto dimming or Dimming switch with IP54 protection |

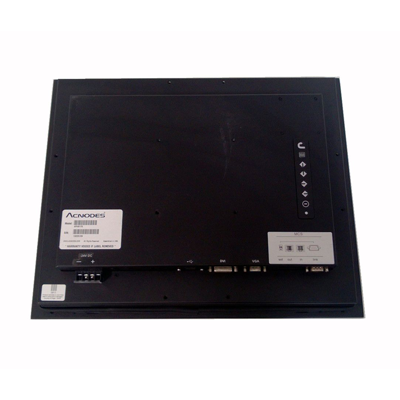

| Rear Panel Control | Power on/off switch OSD membrane switch |
| Mounting Type | VESA (100 x 100mm) mount |
| Cable | 1 x 6ft VGA cable included 1 x Power adapter 1 x Power cord |
| Power supply | Input: Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption: Max. 39 Watt, Standby 4 Watt Option for 12V / 24V / 48V / 125V DC power input |
| Environmental | Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5~90%, non-condensing Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft Shock: 10G acceleration (11ms duration) Vibration: 10~300Hz 0.5G RMS random vibration |
| Compliance | CE, FCC, RoHS, TAA Compliant |
| Weight | 16.9 lb / 7.7 kg |
| Dimension | 18.8"(W) x 2.5"(D) x 15.1"(H) |
