APH8185
18.5" sunlight-readable display with 1920 x 1080 FHD resolution, VGA + HDMI(no speaker) input, panel or VESA mount, 12VDC power input, and an IP65-rated aluminum front bezel.
Key Features
- ✓18.5" high brightness industrial LCD monitor
- ✓Supports Full HD (1920 x 1080) native resolution
- ✓1000-nits high brightness sunlight readable display
- ✓VGA + HDMI(no speaker) video input
- ✓Option for S-Video + Composite
- ✓Panel or VESA (75mm / 100mm) mount ready
- ✓-10°C to 55°C wide range working temperature
- ✓12V DC power input with external AC power adapter

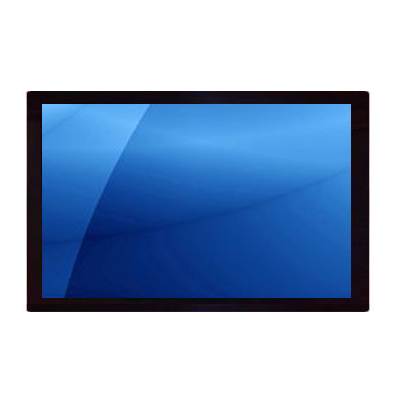

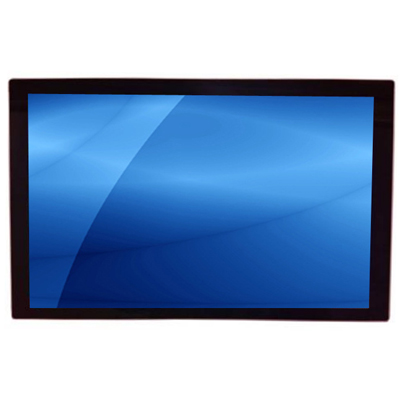

The APH8185 is an 18.5" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed for harsh environments, the display features an IP65-rated aluminum front bezel, an I/O cover for safety and dustproof protection, and a wide working temperature range from -10°C to 55°C. Options are available for a Resistive or Capacitive touch screen and S-Video + Composite video input.
| Material | IP65 rated aluminum front bezel |
| LCD Panel | Size: 18.5 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 409.8 x 230.4 Pixel Pitch (mm): 0.3 x 0.3 Colors: 16.7M, 6 bits + FRC Backlight: LED |
| Video input | VGA + HDMI(no speaker) video input Option for VGA + DVI + S-Video + Composite Option for VGA + DVI |
| OSD menu control | OSD Input: 5-key OSD buttons OSD function: Contrast, Color, Position, Auto-adjustment, Factory Setting |
| Touch screen (Option) | Resistive or Capacitive touch screen - USB |
| Connector | 1 x VGA D-Sub 15 pin 1 x DVI-I input 1 x HDMI (no speaker) input (Option) 1 x S-Video, Composite (Option) 1 x USB for touch screen (Option) 1 x DC input w/ external power adapter |
| Mounting Type | Panel mount or VESA (75 x 75mm / 100 x 100mm) mount |
| Power supply | Input: 12V DC power input with external AC power adapter Consumption: 20 W typical, normal operation |
| Environmental | Operating Temperature: -10°C to 55°C Storage Temperature: -30°C to 80°C Relative Humidity: 10~95%, non-condensing Shock: 15G acceleration (11 ms duration) Vibration: 5~500Hz / 1 Grms / 3 Axis |
| Weight | 17.64 lb / 8.0 kg |
| Dimension | 17.73"(W) x 10.85"(H) x 1.07"(D) |
This product does not have configurable options.
