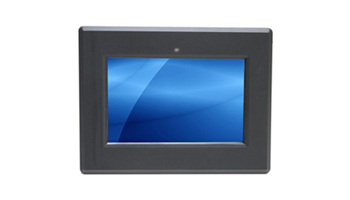

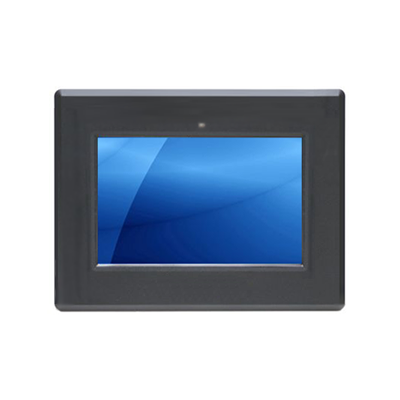

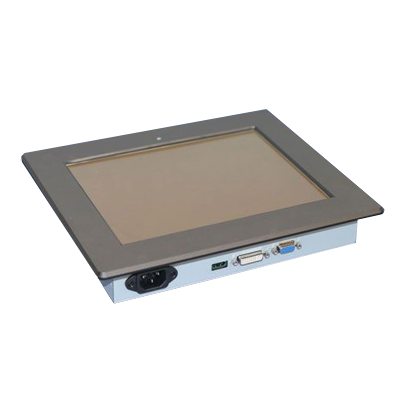

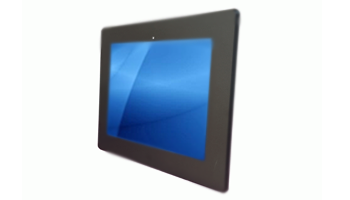

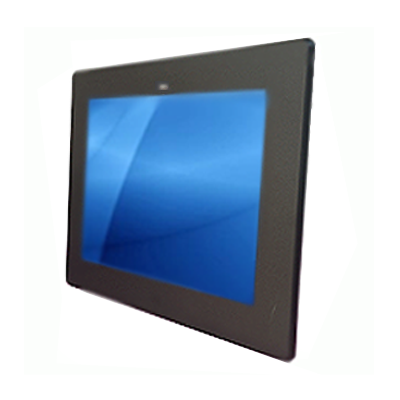

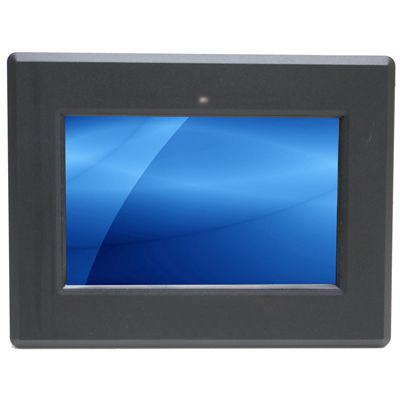

APH8104X
10.4" 1024 x 768 1000-nit high brightness sunlight readable LCD monitor with an IP65 rated front bezel, extended working temperatures, and AC power input.
Key Features
- ✓10.4" high brightness industrial LCD monitor
- ✓Supports 1024 x 768 native resolution
- ✓1000-nits high brightness sunlight readable display
- ✓VGA + HDMI(no speaker) video input
- ✓Panel or VESA (75 x 75mm) mount ready

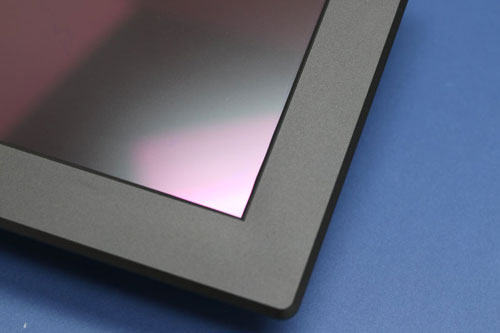

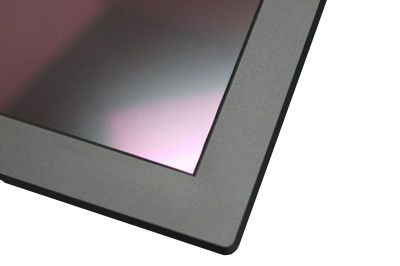

- ✓IP65 dust & water resistant aluminum front bezel
- ✓-20°C to 60°C wide range working temperature
- ✓15W AC power input
The APH8104X is a 10.4" high brightness monitor supporting 1024 x 768 resolution, 1000-nits high brightness display, and VGA + HDMI(no speaker) video input. Designed for harsh environments, the display features an IP65-rated aluminum front bezel and wide working temperature ranges from -20°C to 60°C. The APH8104X offers upgradable options including S-Video + Composite, Resistive or Capacitive touch screen, and an auto-dimming light sensor.
| Material | IP65 rated rugged metal front bezel |
| LCD Panel | Size: 10.4 inch Max Resolution: 1024 x 768 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 1200:1 Viewing Angle (H/V): 178° x 178° Active Area (mm): 211.2H x 158.4V Colors: 16.2M Backlight: LED |
| LCD Protection | AR glass protection (AR glass will be removed if touch screen option is selected) |
| Touch Screen (Option) | Resistive or Capacitive type touch screen |
| Light Sensor (Option) | Auto dimming light sensor (light sensor at front bezel) |
| Video input | VGA + HDMI(no speaker) video input Option for VGA + DVI-D + S-Video + Composite |
| OSD menu control | OSD Input: 5-key OSD buttons OSD function: Contrast, Color, Position, Auto-adjustement, Factory Settings |
| Mounting Type | Panel mount or VESA mount |
| Power supply | Power Input: AC power input-Auto-sensing 100 to 240 VAC, 50/60Hz. Consumption: 15W typical, normal operation |

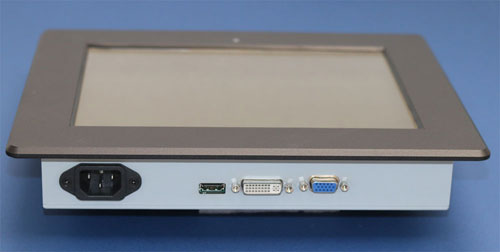

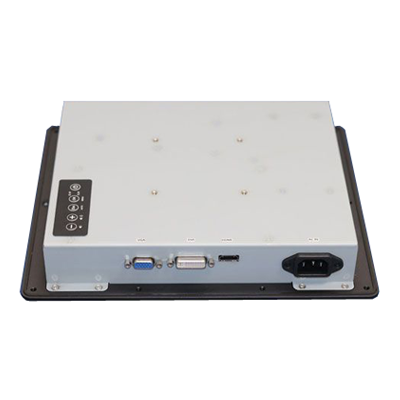

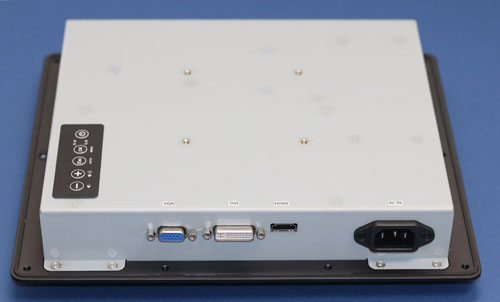

| Connector | 1 x VGA D-Sub 15 pin 1 x DVI-I input 1 x HDMI(no speaker) input 1 x S-Video, Composite (Option) 1 x RS232 for touch screen (Option) 1 x AC input |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Storage Temperature: -30°C to 80°C (-22°F to 176°F) |
| Weight | TBD |
| Dimension | 290 x 240 x 47 (mm) |
