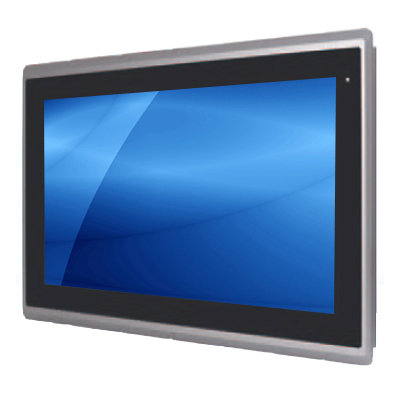

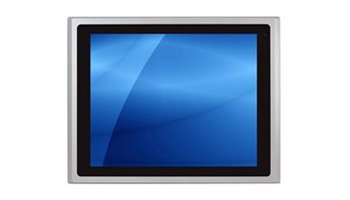

APA9156
15.6" 1366 x 768 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, and 9 to 36V DC power input with external AC power adapter.
Key Features
- ✓Aluminum die-casting enclosure
- ✓Features flat front bezel with IP66 design
- ✓15.6 inch 1366 x 768 Resistive type touch screen monitor
- ✓2.32" short depth metal rugged construction
- ✓Option for Projected Capacitive type touch screen monitor
- ✓VGA, DVI, HDMI, and DP video input
- ✓Panel mount or VESA (100mm) mount ready
- ✓9 to 36V DC power input w/ external AC power adapter
Industrial monitor with a 15.6 inch 1366 x 768 resistive type touchscreen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. Built with an aluminum die-casting chassis and IP66 waterproof flat front bezel, APA9156 can withstand the harsh conditions commonly found in industrial settings. Option for Projected Capacitive type touch screen and 1000-nits high brightness.
| Material | Solid aluminum die-casting chassis IP66 compliant flat front panel |
| LCD Panel | Size: 15.6 inch Max Resolution: 1366 x 768 Brightness (cd/m²): 300, option for 1000-nit Contrast Ratio (typ) : 500:1 Viewing Angle (H/V): 160° x 160° Colors: 16.7M MTBF (hrs): 50,000 |
| Video input | 1 x VGA 1 x DP 1 x DVI-D (share with HDMI) 1 x HDMI (share with DVI-D) |
| Touch screen | Resistive type touch screen monitor with USB port (std) Option for Projected Capacitive type touch screen monitor with USB port |
| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | Panel mount or VESA (100mm) mount |
| Connectors | 1 x VGA port 1 x DP port 1 x DVI-D port (share with HDMI) 1 x HDMI port (share with DVI-D) 1 x USB Type B for touchscreen 1 x 3-pin terminal block DC power input 1 x 2W speaker (option) |
| Power supply | Power Input: 9~36V DC power input with external AC power adapter Power Consumption: Max. 13W |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temeprature: -30°C to 70°C (-22°F to 158°F) Relative Humidity: 10~90% @ 40°C, non-condensing |
| Certification | CE/FCC, Class A |
| Weight | 9.70 lb / 4.4 kg |
| Dimension | 16.22"(W) x 10.93"(H) x 2.32"(D) |
