APA9080
8" 800 x 600 HMI touch screen panel with an IP66 rated flat panel, aluminum die-casting chassis, VGA + DP + DVI-D + HDMI video input, and panel or VESA (75mm) mount.
Key Features
- ✓Aluminum die-casting chassis
- ✓Features flat front bezel with IP66 design
- ✓8 inch 800 x 600 Resistive type touch screen
- ✓Option for Projected Capacitive type touch screen
- ✓Option for 1000-nits high brightness display
- ✓VGA, DVI, HDMI, and DP input
- ✓Panel or VESA (75mm) mount ready
- ✓2.0" short depth metal rugged construction
- ✓9 to 36V DC power input w/ external AC power adapter

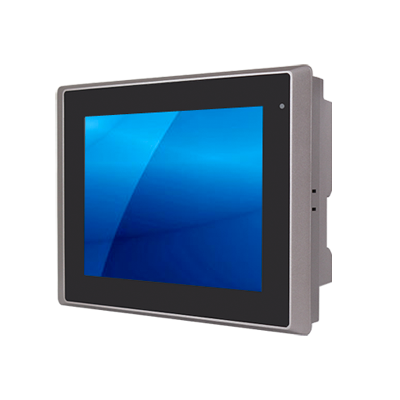

The APA9080 is an 8 inch industrial LCD display supporting 800 x 600 resolution, a Resistive type touch screen, and VGA + DP + DVI-D + HDMI video input. Weighing less than 4 lbs, this compact display features an aluminum die-casting chassis and a flat front bezel with IP66 protection. The display can be mounted into a cutout in an enclosure or it can be mounted with the panel and VESA (75mm) mounting holes. Options are available for a Projected Capacitive touch screen, 1000-nits high brightness display, speakers, and extended working temperature.
| Material | Solid aluminum die-casting chassis IP66 compliant flat front panel |
| LCD Panel | Size: 8 inch Max Resolution: 800 x 600 Brightness (cd/m²): 350-nit, option for 1000-nit high brightness Contrast Ratio (typ.): 500:1 Viewing Angle (H/V): 140° x 120° Colors: 16.2M MTBF (hrs): 40,000 |
| Video input | 1 x VGA 1 x DP 1 x DVI-D (share with HDMI) 1 x HDMI (share with DVI-D) |
| Touch screen | Resistive type touch screen - USB port Option for Projected Capacitive type touch screen - USB port |
| Rear panel control | Power on/off switch OSD membrane switch |
| Mounting Type | Panel mount or VESA (75mm) mount |

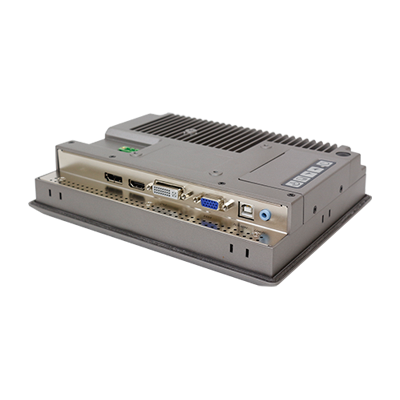

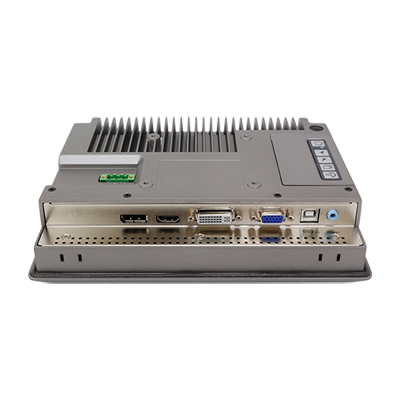

| Connectors | 1 x VGA port 1 x DVI-D port (share with HDMI) 1 x DP port 1 x HDMI port (share with DVI-D) 1 x Audio line-in phone jack 1 x USB Type B for touch screen 1 x 3-pin terminal block for DC power input Option for 1 x 2W speaker |
| Power supply | Power Input: 9~36V DC power input with external AC power adapter Power Consumption: Max. 6W |
| Environmental | Operating Temperature: 0°C to 50°C Storage Temperature: -30°C to 70°C Relative Humidity: 10~90% @ 40°C, non-condensing Option for -20°C to 60°C wide operating temperature (for standard brightness) |
| Certification | CE/FCC Class A |
| Weight | 4.0 lb / 1.8 kg |
| Dimension | 9.10"(W) x 6.93"(H) x 2.0"(D) |
