Panel PC comes with a 15 inch 1024 x 768 350-nits LCD touch screen, Atom D510 1.66GHz embedded CPU, fanless PC cooling system, fully IP67 rated rugged enclosure, 18 to 32V DC input, MIL-STD-810G testing standards, and -20° to 60° wide range working temperature.
PCM8015
- Fully IP67 rated rugged enclosure
- 15 inch 1024 x 768 LED backlight monitor
- P-Cap or 5-wire resistive type touch screen monitor
- 350-nits high brightness LCD panel, option for 650-nits
- Atom Dual-Core D510 1.66GHz embedded system
- MIL-STD-810G -20ºC to 60ºC wide range working temperature
- 1 LAN, 1 USB, 2 COM & VGA video port
- Wide range 18~32V DC power input
- Material
- Fully IP67 rated rugged enclosure
- LCD panel
- Size: 15”
Max. Resolution: 1024 x 768
Brightness (cd/m²): 350
Contrast Ratio: 700:1
Viewing Angle (H/V): 160'(H)/ 140'(V)
Backlight: LED
Colors: 16.2M, 8-bit
- Touch Screen
- P-Cap or 5-wire resistive type touch screen monitor
- System
- CPU: Atom Dual-Core D510 1.66GHz CPU
Memory Slot: DDR2-667 SO-DIMM 2GB
Chipset: ICH8M
- Video input
- VGA video output
- Drive Bay
- SSD 64GB
- Mounting
- Panel / VESA mount
- Connectors
- 2 x COM ports, RS-232
1 x USB 2.0
1 x Ethernet ports, 10/100/1000Mbps
1 x VGA video out port
1 x DC Power plug
- Power supply
- Wide range 18~32V DC power input
Option for 9~36V DC power input
- Weight
- 19.84 lb / 9 kg

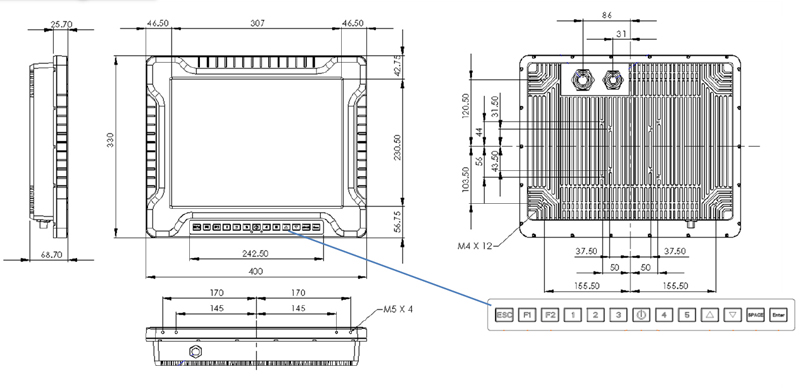

- Dimension
- 15.75"(W) x 2.70"(D) x 12.99"(H)
- Environmental
- Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
Humidity: MIL-STD-810G Method 507.5-7
High Temperature: MIL-STD-810G Method 501.5-11
Low Temperature: MIL-STD-810G Method 502.5
EMC: MIL-STD-461F, RE102, RS103, CE101, CE102
PCM8015:
15 inch industrial Panel PC with fully IP67 rated rugged enclosure, Atom Dual-Core D510 1.66GHz embedded computer, 2GB DDR2 memory, 64GB SDD, onboard Gigabit LAN, and resistive type touch screen monitor.
Price: Call for price
PCM8015-SP.pdfPCM8015-UM.pdfPRODUCT DESCRIPTION
Designed for durability, reliability, and optimal performance in extreme environments, military-grade LCD monitor PCM 8015 is ideal for military, mission-critical applications. Features include an extended range of operating temperature capabilities, IP ratings (including IP67 waterproof and dustproof enclosures), touch screen monitors, and are MIL-STD-810G rated. This feature-rich series offers options for specific applications; including airborne, ground mobile, and shipboard (submarine and surface warship). At 15” and of 1024 x 768 resolutions, this Panel PC involves a projected capacitive or 5-wire resistive type touch screen monitor. An option for added 3mm protective glass is available. The CPU is Atom Dual-Core D510 1.66GHz with DDR2-667 SO-DIMM 2GB memory and ICH8M chipset. The drive bay uses SSD 64GB and the video is of VGA output. The connectors include two COM ports, USB 2.0, Ethernet port, VGA out port, and DC power plug. The power supply of a wide range 18~32V DC power input has an option for a 9~36V DC adapter. With dimensions of 15.75"(W) x 2.70"(D) x 12.99"(H) and 19.84lbs, this unit can be panel or VESA mounted. The wide range of operating temperatures of -4°F to 140°F, MIL-STD-810G rated for vibration, shock, humidity, high temperature, low temperature, and EMC contribute to the stable conditions it can withhold in severe and harsh environments.
