Military-grade panel PC with a 12.1 inch 1024 x 768 resistive type touch screen monitor powered by the Intel Celeron N2930 1.83GHz CPU. The panel PC supports 2 x LAN + 2 x USB + 1 x RS-232 (D38999), a fully IP67 rated rugged enclosure, and MIL-STD-461F/810G military testing compliance.
10.4

PCM8011

PCM8012

  • Fully IP67 rated rugged enclosure
  • 12.1 inch 1024 x 768 industrial LCD panel
  • 5-wire resistive type touch screen with EMI mesh filter
  • 400-nits LCD panel, option for 1000-nits high brightness
  • Intel Celeron N2930 1.83GHz embedded system
  • 2 x LAN + 2 x USB + 1 x RS-232 (D38999 connectors)
  • MIL-STD-810G -10°C to 60°C wide range working temperature
  • Wide range 9~36V DC power input with EMI filter
$3,385.00
Availability: In stock
SKU
PCM8012
12.1" 1024 x 768 military-grade panel PC with Intel Celeron N2930 1.83GHz CPU, Resistive type touch screen, and MIL-STD-461F/810G military testing compliance.
Construction
Fully IP67 rated rugged enclosure
LCD Panel
Size: 12.1 inch
Max. Resolution: 1024 x 768
Brightness (cd/m²): 400-nits, option for 1000-nits high brightness
Contrast Ratio (typ.): 700:1
Viewing Angle: -88 ~88(H); -70~70(V)
Active Area: 245.76(H) x 184.32(V)
Colors: 16.2M (8 bits/color)
LCD Enchancement
Optical bonding
Option for optical bonding + EMI filter + UV protection
Touch Screen
5-wire resistive type touch screen with EMI mesh filter
Front Panel Controls
Power ON/OFF & Reset button
LED indicators for power and storage
System
CPU: Intel Celeron N2930 1.83GHz
Memory: DDR3 SO-DIMM 4GB, Max.8GB
Graphic: Integrated Intel HD Graphics
Ethernet: Intel WG82574LGbE
Audio: Realtek ALC886 HD Audio Codec
Chipset: Fintek F81866
Storage
mSATA SSD 64GB, max. 128GB
Power Supply
Wide range 9~36V DC power input with EMI filter
Option for external AC power adapter
Connectors (D38999)
2 x LAN
2 x USB, 1 x USB Type A
1 x RS232
1 x 9~36V DC input
Mounting
VESA (75 x 75mm, 100 x 100mm) and panel mount ready
Weight
15.43 lb / 7 kg

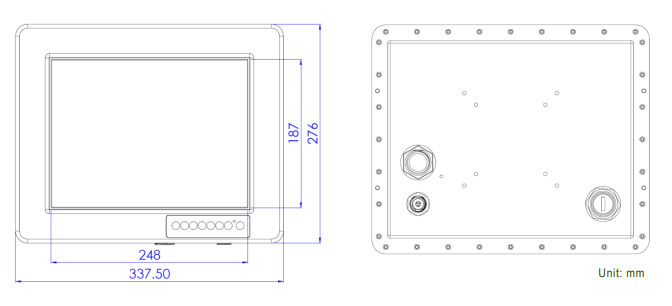

Dimension
12.99"(W) x 10.63"(H) x 3.35"(D)
Environmental
Operating Temperature: -10°C to 60°C
Relative Humidity: 5 to 95%, non-condensing
Shock: MIL-STD-810G Method 516.6
Vibration: MIL-STD-810G Method 514.6C-3
Humidity: MIL-STD-810G Method 507.5-7
High Temperature: MIL-STD-810G Method 501.5-II
Low Temperature: MIL-STD-810G Method 502.5
EMC Compliance: MIL-STD-461F, RE101, RE102

PCM8012:
12.1" 1024 x 768 400-nits military-grade panel PC, Resistive type touch screen, Celeron N2930 1.83GHz CPU, 4GB DDR3 memory, 2 x LAN + 2 x USB + 1 x RS232 + 1 x USB Type A, fully IP67 rated rugged enclosure, MIL-STD-461F / 810G compliance, wide range 9~36V DC power input.

Lead Time: 14 Weeks

Document
Description
Download Link
file iconPCM8012-SP.pdf
Spec Sheet
