The PMW6215 21.5" open frame monitor is a reliable, cost-effective industrial solution designed for kiosk information systems, industrial automation, self-service, and commercial applications. The monitor supports 1920 x 1080 FHD display resolution, VGA + DVI + HDMI input, an optional built-in touch screen for interactive applications, and AC input w/ built-in PWR. With an open frame modularized design, it provides flexible product configuration and mounting that allows you to custom design enclosures for specific applications and OEM customers.





  • 21.5 inch widescreen open frame LCD monitor
  • Supports 1920 x 1080 Full HD display resolution
  • 250-nits brightness, option for 1000-nits high brightness
  • VGA + HDMI + DVI input
  • Option for VGA + HDMI + DP input
  • Option for AG glass, AR glass, Resistive touch, Capacitive touch
  • Option for EMI mesh shielding, UV film, sensor, digital signage
  • Option for -10°C to 65°C wide working temperature
  • Wall and VESA (100 x 100mm) mount ready
  • AC input w/ built-in PWR, option for DC-IN
Availability: In stock
21.5" open frame LCD monitor with 1920 x 1080 resolution, VGA + HDMI + DVI video input, VESA mount, AC input with built-in power, and an open frame metal enclosure.
Heavy-duty steel
LCD Panel
Size: 21.5 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 250-nits
Option for 1000-nits high brightness
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.248(H) x 0.248(V)
Response Time: ≤ 5ms
Backlight: LED
Colors: 16.7M
MTBF (hrs): 35,000
LCD Enhancements
Option for EMI Mesh Shielding or UV film
Option for AG Glass, AR Glass, Resistive touch, or Capacitive touch
Video Input
VGA + HDMI + DVI input
Option for VGA + HDMI + DP input
On-Screen Display
5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu
Option for external OSD box
Sensor (Option)
Option for light sensor or motion sensor
Digital Signage (Option)
Option for MP-1080P
Power Supply
Input: AC power input with built-in power
Operation / Power Saving: 26.25 watt, < 1 watt (Support DPMS)
Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN
Wall and VESA (100mm) mount
17.64 lb / 8 kg
20.94"(W) x 13.54"(H) x 2.48"(D)
Operating Temperature: 0°C to 50°C
Option for -10°C to 65°C wide operating temperature
Storage Temperature: -20°C to 60°C
Humidity: 10% ~ 90% (no condensation)

21.5 inch 1920 x 1080 Full HD LCD monitor, 250-nits brightness, VGA + HDMI + DVI video input, AC-IN with built-in power, VESA (100 x 100mm) mount, open frame metal enclosure.

Download Link
file iconPMW6215-SP.pdf
Spec Sheet

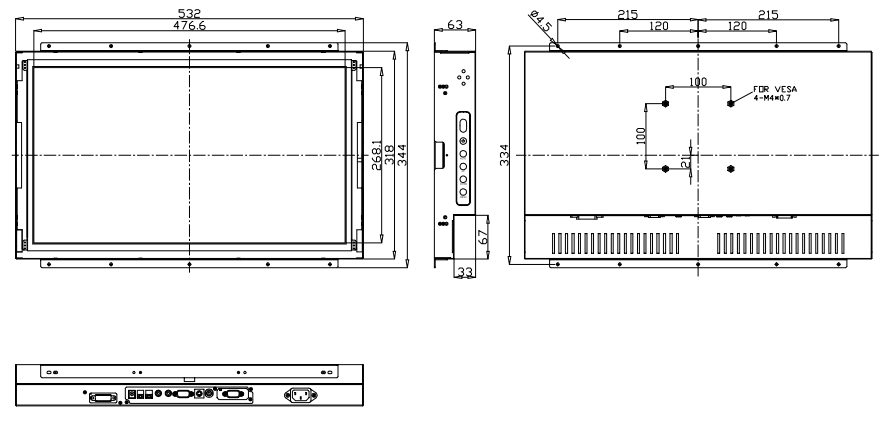

file iconPMW6215-DIM.pdf
