Panel mount monitor comes with a 15 inch 1024 x 768 250-nit industrial LCD panel, P-cap multi touch screen, VGA video input, and an IP66 rated anti-corrosion stainless steel housing. Option for a 1000-nit high brightness display, resistive type touch screen, DVI / HDMI video input, and DC power input.
12.1

PMN80120

17

PMN80170

PMN80150

  • Anti-corrosion stainless steel housing
  • Full IP66 rated rugged enclosure
  • 15 inch 1024 x 768 250-nit LCD Monitor
  • Option for 1000-nit high brightness display
  • VGA video input, option for DVI / HDMI
  • P-cap multi-touch screen with USB
  • -20°C to 60°C wide range working temperature
  • 110/240VAC power input
$1,240.00
Availability: In stock
SKU
PMN80150
15 inch 1024 x 768 LCD panel mount monitor with a fully IP66 rated anti-corrosion stainless steel housing, VGA video input, P-cap multi-touch screen, and AC power input.
Material
Stainless Steel SUS316
Anti-corrosion stainless steel housing
LCD Panel
Size: 15 inch
Resolution: 1024 x 768
Brightness (cd/m²): 250
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 140° x 120°
Colors: 16.2M (6-bit)
Option for 1000-nit high brightness display
Option for optical bonding
Video Input
VGA video input
Option for DVI or HDMI
Touch Screen
P-cap multi-touch screen - USB
Option for 5-wire resistive type touch screen - USB
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position, Auto-adjustment, and Factory Settings
Power Supply
110 to 240VAC power input
Consumption: 20W (typ.)
Option for 9~36V DC power input
Connectors
1 x VGA
1 x USB for touch screen
1 x 110~240VAC power input
Cables
IP66 rated cables for touch screen, video input, and power
Weight
16.5 lb / 7.5 kg

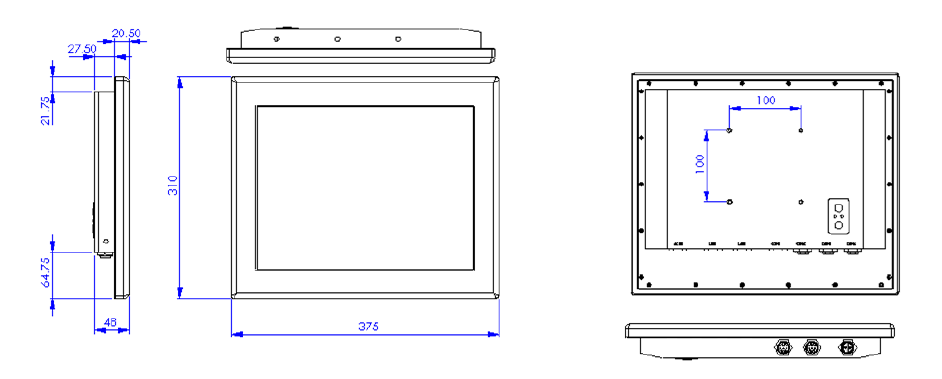

Dimension
14.7"(W) x 12.2"(H) x 1.8"(D)
Mounting
VESA mount (100 x 100mm)
Environmental
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 80°C
Relative Humidity: 10~95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
IP Protection
Full IP66 rated protection

PMN80150:
15 inch 1024 x 768 250-nit brightness LCD panel, full IP66 rated anti-corrosion stainless steel housing, P-cap multi-touch screen monitor, VGA video input, and 110/240VAC power input. Option for 1000-nit high brightness display, DVI / HDMI video input, and optical bonding.

Document
Description
Download Link
file iconPMN80150-SP.pdf
Spec Sheet (Coming Soon)
