The APH9220 is a 21.5" high brightness sunlight readable monitor supporting 1920 x 1080 FHD resolution, 1000-nits high brightness display, and VGA + DVI-D video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, a sunlight-readable display, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APH9220 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive touch screen), auto or manual dimming, additional video signals, MCS multi-screen control, and DC power input.
Loading...
19

APH9190

18.5

APH8185

APH9220

  • 21.5" high brightness industrial LCD monitor
  • Supports 1920 x 1080 native resolution
  • 1000-nits high brightness sunlight readable display
  • VGA + DVI-D video input
  • Option for HDMI, DP, BNC, Audio, 3G-SDI, or MCS control
  • Option for Resistive or PCAP touch screen - USB
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,436.00
Availability: In stock
SKU
APH9220
Email
21.5" sunlight readable display with 1920 x 1080 FHD resolution, VGA + DVI-D input, panel or VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.
Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 21.5 inch
Native Resolution: 1920 x 1080
Brightness (cd/m²): 1000
Contrast Ratio (typ.): 5000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Tiem (ms): 5
Dot Pitch (mm): 0.248
Display Area (mm): 476.64H x 268.11V
Colors: 16.7M
Backlight: LED
MTBF (hrs): 50,000
Video input
Standard: VGA + DVI-D
Option: HDMI, DP, BNC, 3G-SDI input, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
Dimming (Option)
Auto dimming or Dimming switch with IP54 protection
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter
1 x Power cord
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 32 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Weight
19.8 lb / 9 kg

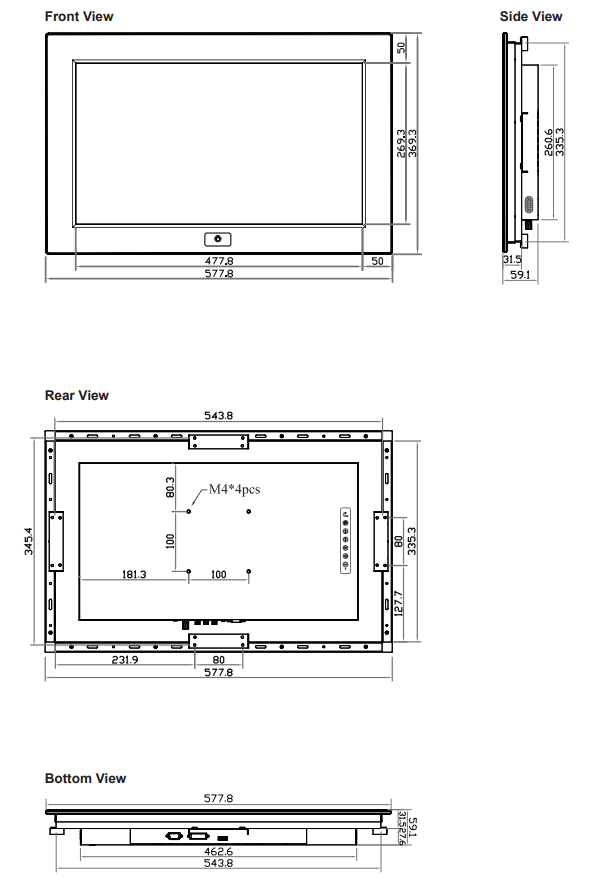

Dimension
22.7"(W) x 2.3"(D) x 14.5"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APH9220:
21.5" panel mount monitor, 1920 x 1080 FHD resolution, 1000-nits high brightness panel, VGA + DVI-D video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPH9220-SP.pdf
Spec Sheet
file iconAPH9220-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
