The APW5185 is a 18.5 " Full HD panel mount LCD monitor supporting 1920 x 1080 native resolution, VGA + HDMI (no speaker) video input, and 100/240VAC power input. Designed to meet professional and environmental demands, the monitor features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APW5185 has a variety of optional upgrades and modules available including IP65 rated front bezel, touch screen technology (Resistive or Projected Capacitive), additional video input modules, video decoding capability up to 1080P, portrait mode module, and DC power input.

28

APW5280

APW5185

  • 18.5" Full HD industrial LCD monitor
  • Supports 1920 x 1080 native resolution
  • VGA + HDMI (no speaker) video input
  • Option DP, BNC, 3G-SDI, or MCS control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,036.00
Availability: In stock
SKU
APW5185

18.5" FHD panel mount LCD monitor with 1920 x 1080 native resolution, VGA + HDMI (no speaker) video input, VESA (100 x 100mm) mount, and an aluminum front bezel.

Construction
8mm aluminum front bezel
Option for IP65 / NEMA4 rated front bezel
LCD Panel
Size: 18.5 inch
Native Resolution: 1920 x 1080
Brightness (cd/m²): 350
Contrast Ratio (typ.): 1000:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178°x 178°
Response Time (ms: 25
Dot Pitch (mm): 0.213
Display Area (mm): 408.96H x 230.04V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video Input
Standard: VGA + HDMI (no speaker)
Option: DP, BNC, 3G-SDI, or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch
OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 12W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
15.4 lb / 7 kg

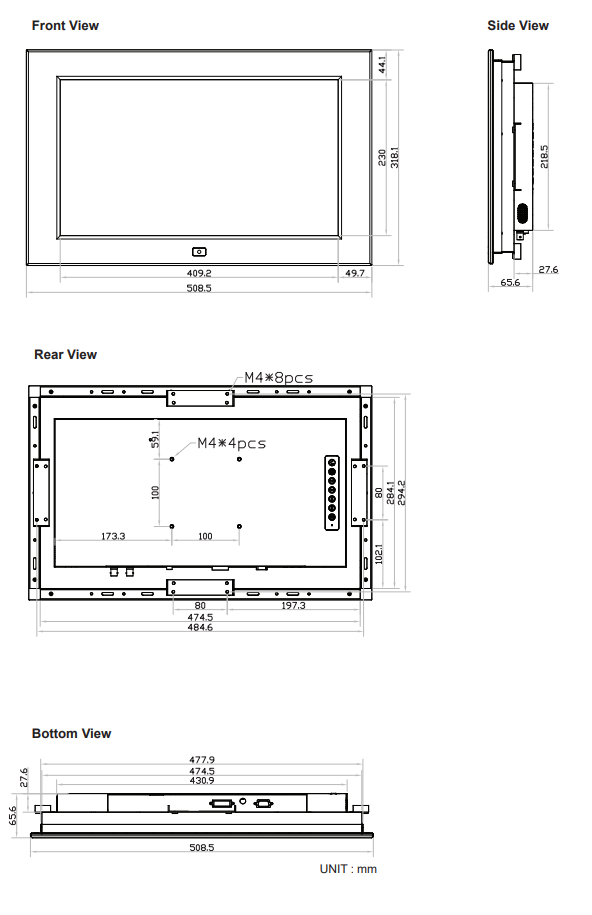

Dimension
20"(W) x 2.6"(D) x 12.5"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APW5185:
18.5" Full HD panel mount LCD monitor, 1920 x 1080 native resolution, VGA + HDMI (no speaker) input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPW5185-SP.pdf
Spec Sheet (Coming Soon)
