The MKD6117 is a 17.3" rack KVM console supporting 1920 x 1080 FHD resolution with 16.7M colors. The console features a short-depth design that allows you to mount into only a 1U standard 19" rack mount space. The rack console features an integrated 8-port VGA KVM switch and keyboard with a touchpad pointing device. Users can easily control the monitor using the front OSD controls and keyboard hotkeys. Designed to meet professional and environmental demands, the MKD6117 is designed to allow users to control and switch between computers in an environment from a convenient 1U rack mount solution.
MKD6017D 1U 17

MKD6017D

MKD6117

  • 1U high 22.8 inch depth rackmount drawer
  • 17.3 inch 1920 x 1080 Full HD LCD monitor
  • VGA video input
  • 8 port KVM switch
  • 1 x local user console
  • 104-key keyboard with touchpad pointing device
  • Option for 6ft VGA + USB KVM cables
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,085.00
Availability: In stock
SKU
MKD6117
17.3" 1920 x 1080 FHD rackmount LCD console drawer with an 8 port KVM switch and 104-key keyboard with touchpad in a 1U high 22.8" depth rackmount drawer.
Material
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Viewing Angle: 178° x 178°
Display Aarea (mm): 381.888H x 214.812V
Colors: 16.7 M, 8-bit
Backlight: LED
MTBF (hrs): 15,000
Video Input
VGA video input
Keyboard & Pointing device
104-key keyboard with 2-button touchpad
KVM Port
8 x KVM ports (1 x VGA, USB or PS/2 for keyboard & mouse)
KVM switch
Advanced user profiles and configurable on screen display (OSD) & hotkey combination
Multilingual on screen display menu
Supports eight characters password protection
Local Console
1 x VGA port (resolution up to 1600 x 1200)
2 x USB ports for Keyboard & Mouse
Cascade port
1 x in / out proprietary cascade KVM port
Extended up to 128 servers by 8-level cascade
Color
Black (RAL 9005)
Front Panel Control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
8 x KVM ports LED indicators for On-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
KVM Cables (Option)
Option for 6ft / 10ft / 15ft VGA + USB KVM cables
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 45W, Standby 34W
Weight
25.5 lb / 11.6 kg

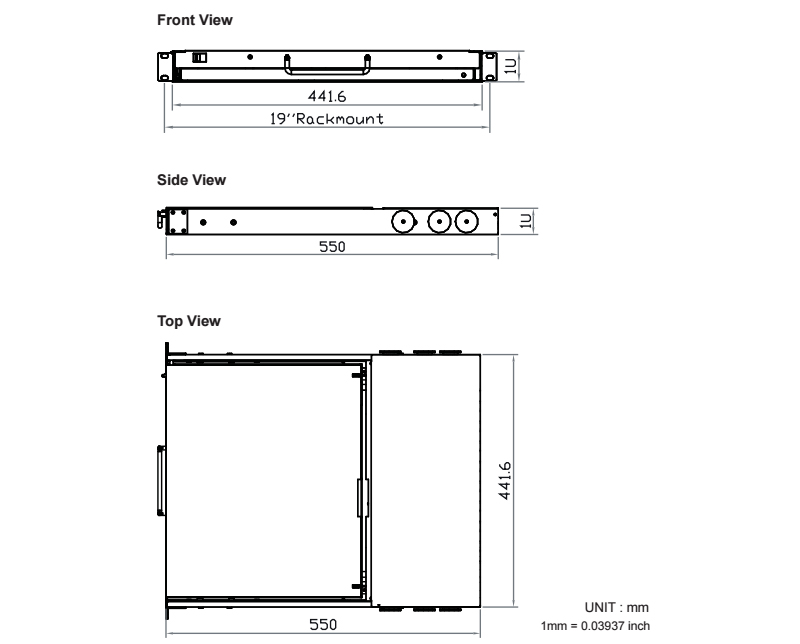

Dimension
17.4"(W) x 22.8"(D) x 1.73”(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity:5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant


MKD6117:
17.3 inch 1920 x 1080 full HD industrial LCD monitor, 104-key keyboard with touchpad, 8-port KVM switch, 1 x local user console, 1U high 22.8" depth rackmount terminal, Black color.

Document
Description
Download Link
file iconMKD6117-SP.pdf
Spec Sheet
file iconMKD6117(-0816)-UM.pdf
User Manual
