4U rack mount workstation, 7-inch 800 x 480 LCD monitor and resistive-type touch screen (USB port). The embedded computer provides ATX mother board with Dual-core or Quad-Core processor and 6 PCI / PCI-express open expansion slots. The rack chassis comes with 3 open hot-swappable SATA HD tray, 1 DVD-RW open bay, 84-key keyboard with track ball drawer and front USB ports. 4U high 20.6" depth rackmount chassis and color is black.
Heavy Duty Cold Rolled Electroplated Steel EIA RS-310C 19" Rackmount Standard
LCD Panel W/touch screen
Size: 7” Resolution: 640x480 Front 5 button monitor control and rear VGA input Resistive-type touch screen with USB connector
Standard ATX mother board
Processor: Intel Socket-775 Core 2 Duo processor, 667/1066/1333FSB Memory: 4 x DDR2 memory socket (up to 8GB) On board Intel Graphic On board Ethernet LAN / Audio Integrated one IDE / 6 SATA port 4 x USB ports 1 x parallel port 2 x PS/2 ports mouse/keyboard
3 open hot-swappable SATA tray 1 x 5.25” open drive bay
7 x open expansion slots 1xPCI-E(x16), 3xPCI-E(x1), 3xPCI
Front panel controls
Power on/off switch System reset button 2 x USB ports 2 x LED indicator for power/HD-activity
Keyboard and track ball
84 key Keyboard that slides from the bottom of the chassis (rear PS/2 type connector) 2-buttons trackball (rear PS/2 connector)
Front chassis: 2 x 92mm (51CFM each) Rear chassis: Optional for 2 x 60mm (23.5CFM)
300W PS/2 ATX power supply Optional for 400W/500W power supply
The Housing : LW 8441A is a 4U high rackmount LCD workstation that comes with a built-in 7-inch 800 x 480 LCD monitor and a resistive-type touchscreen with a USB-type connector. The rack mount chassis is made of a heavy-duty steel to meet the EIA RS-310C 19" rackmount standard. The rackmount chassis also offers a front pull-out 84-key keyboard with a track-ball keyboard drawer, 2 x front USB ports and 2 x 60mm (23.5CFM each) ball-bearing cooling fans.
Storage Devices : The rack mount chassis provides 3 x SATA HDD swappable HDD tray, 1 x optical drive open bay. Standard configuration includ one 500GB SATA hard drive and DVD-RW optical drive.
System Board : It takes a standard ATX mother board with up to a 10.5" depth. The ATX motherboard is powered by a Dual-Core or Quad-Core processor, 4 x DIMM memory up to 8GB memory, Ehternet LAN, Audio and Video, Standard ATX mother board's I/Os included 2 x PS/2, 4 x USB 2.0, 1 x RJ-45, 1 x VGA and line-in, speaker-out and microphone jacks. Standard configuration includ a Dual-Core processor and 1GB memory. Optional: on-board RAID controller or add on RAID PIC-E card.
Expansion Slots : Standard configuration includes 3 x PCI, 1 x PCI-E (16X) and 3 x PCI-E (1X). Other configurations are available (depond on ATX M/B expansion slots layout).
Power Supply : All systems come with a PS/2 type 300W ATX power supply. Available: 460W/500W power supply.

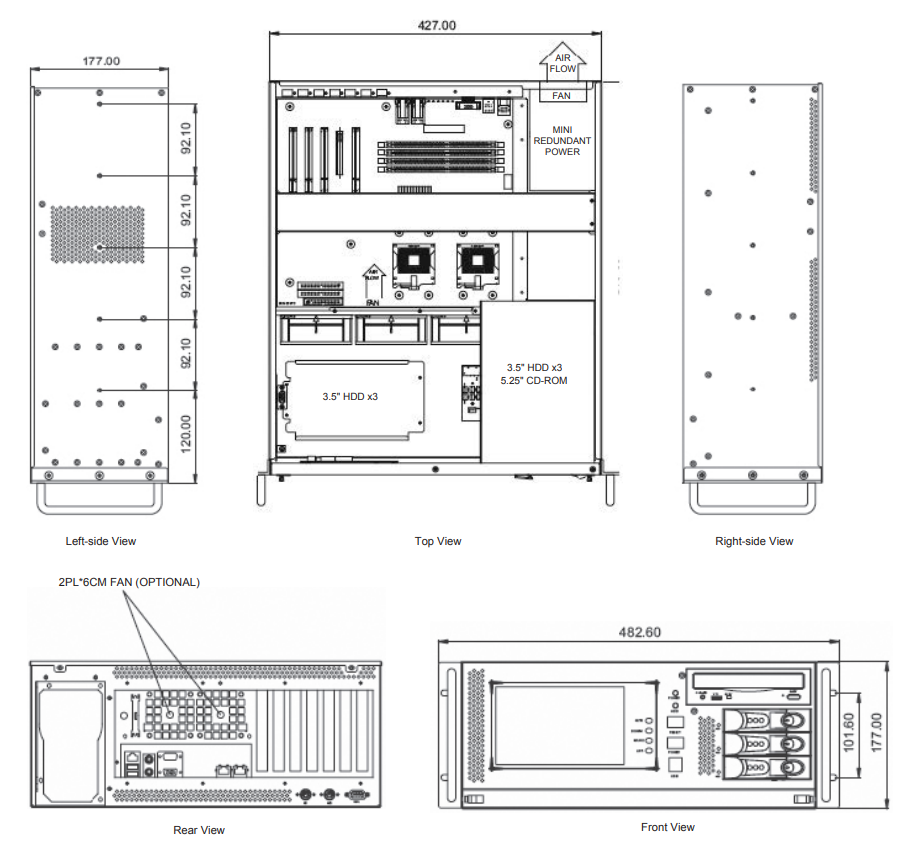

Mounting : Front ears come with the standard 19-inch rackmount mounting holes that allow for front mounting to any standard 19-inch rack. The rack mount chassis has a 20.6-inch depth.
