NOTICE! : PRODUCT EOL. PLEASE VISIT PANEL PCS FOR RELATED PRODUCTS.
fanless panel PC with a 21.5" 1920 x 1080 Full HD LCD panel, projected capacitive type touch screen, ABS plastic, 4GB DDR4 memory, built-in 802.11 a/b/g/n/ac wireless module, IP64 rated front panel, and -20°C to 50°C extended working temperature. Option for Core i5-6300U CPU and panel mounting kit.
FPC80215
- 21.5" 1920 x 1080 LED LCD monitor
- Projected capacitive type touch screen with anti-glare
- Intel Celeron 3955U Dual-Core 2.0GHz CPU
- 4GB DDR4 memory, max. 8GB
- 128GB mSATA SSD
- Built-in 802.11 a/b/g/n/ac wireless module
- -20°C to 50°C extended working temperature
- 36W 90~264VAC external power adapter
- IP64 rated front bezel
Availability:
In stock
SKU
FPC80215
21.5" 1920 x 1080 fanless touch panel PC with Celeron 3955U CPU, 4GB memory, IP64 rated front panel, and -20°c TO 50°C extended working temperature.
- Material
- PC + ABS plastic on front panel
- LCD Panel
- Size: 21.5 inch
Resolution: 1920x 1080
Brightness (cd/m²): 250
Contrast Ratio:1000:1
Viewing Angle (H/V): 170° / 160°
Pixel Pitch (mm): 248.25(H) x248.25(V)
Colors: 16.7M
MTBF (hrs): 30,000
- System
- CPU: Celeron 3955U Dual Core 2.0GHz CPU
Option for 6th generation Core i5-6300U 2.4GHz CPU
Memory: 4GB DDR4 memory, max. 8GB
Storage: 128GB mSATA SSD
- Touch Screen
- Projected capacitive type touch screen with anti-glare coating, USB interface
- Connectors
- 1 x RS-232 (DB-9)
1 x RS-232/422/485 (DB-9)
2 x GbE LAN
4 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9~30V lockable power jack
- Audio
- AMP 3W + 3W internal speakers
- Camera & Microphone
- 2-megapixel with low light function, digital microphone
- Wireless
- IEEE 802.11 a/b/g/n/ac, Bluetooth V4.1
- Mounting
- Option for panel mounting kit
- Power Supply
- 36W 90~264VAC external power adapter
- Color
- Black
- Weight
- 24.85 lb / 11.27 kg

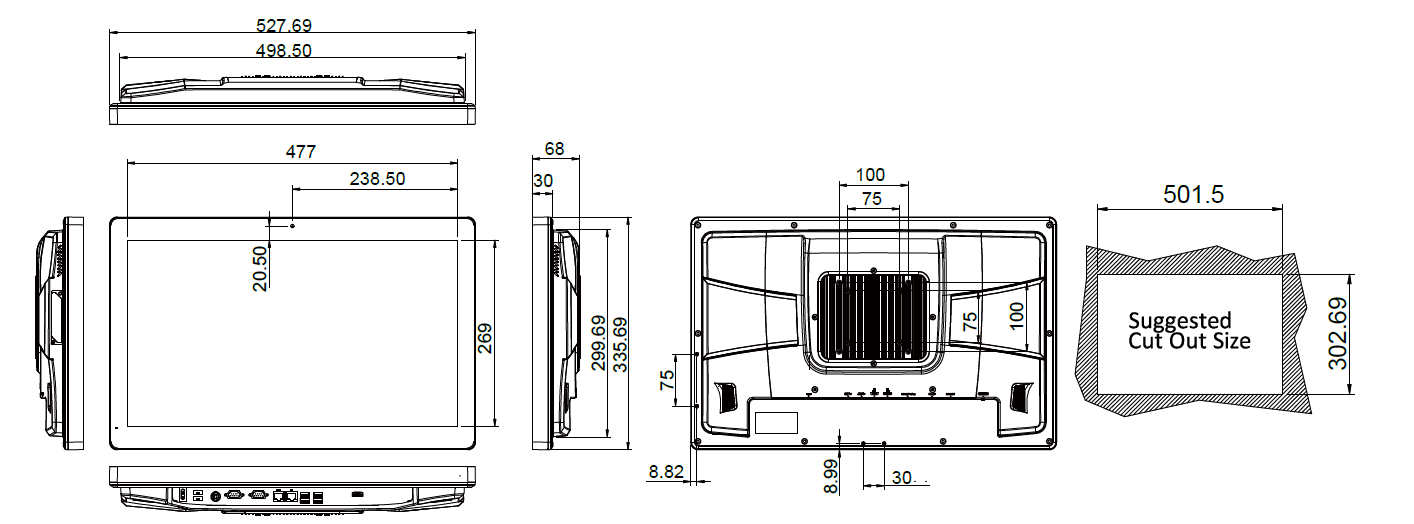

- Dimension
- 20.79"(W) x 13.23"(H) x 2.68"(D)
- Environmental
- Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10% to 95%, noncondensing
- IP Protection
- IP64 compliant front panel
- Certification
- CE / FCC
FPC80215:
21.5" 1920 x 1080 fanless panel PC with Celeron 3955U 2.0GHz CPU, 4GB DDR4 memory, 128GB mSATA SSD, built-in 802.11 a/b/g/n/ac wireless module, projected capacitive type touch screen, anti-glare coating, 90 to 264VAC external power adapter, and -20°C to 50°C extended working temperature.
Document
Description
Download Link
FPC80215-SP(V2-1).pdfSpec Sheet
