High performance expandable embedded system with 6th / 7th Generation Core i7 / i5 CPU, VGA display, 2 x GbE LAN, 5 x USB 3.0, 4 x COM, 3 x PCI & 1 x PCIe x16 expansion slots, 100~240VAC power input, and wide range operating temperature. Option for DVI-D / DP video inputs, LPT port, and 4 x extra COM ports.
FES8912 industrial PC

FES8912

FES7471

FES7471

FES7470

  • High performance expandable embedded computer
  • 6th / 7th generation Core i7 / i5 processor
  • 4 x RS-232/422/485 port, 5 x USB ports, 2 x GbE LAN
  • Two high performance DDR4 SO-DIMM max. 32GB
  • Extended working temperature from -20°C to 55°C
  • MIL-STD-810G vibration and shock
  • Two SATA 3.0, swappable box
  • Supports 3 x PCI and 1 x PCIe x 16 expansion slots
  • 100~240VAC power supply
$1,560.00
Availability: In stock
SKU
FES7470

Expandable embedded system with 6th / 7th generation Core i7 / i5 CPU, VGA, 2 x GbE LAN, 5 x USB 3.0, 4 x COM, 3 x PCI & 1 x PCIe x 16 expansion slots, AC power input, and wide range operating temperature.

Material
Aluminum
Embedded board
CPU: Core i7-7700T (8M, 3.8GHz),
Core i7-6700TE (8M, 3.4GHz),
Core i5-7500T (8M, 3.3GHz),
Core i5-6500TE (6M, 3.3GHz)
Chipset: H110
Memory Type: Dual channel (Non-ECC) DDR4 2133MHz
Memory Socket: 2 DDR4 260-pin SO-DIMM, Max. 32GB
I/O Port
2 x RS232 (COM1/2)
2 x RS422/485 (COM3/4)
2 x GbE, 10/100/1000 Mbps
5 x USB 3.0
1 x VGA, up to 1920 x 1200 pixel at 60Hz
1 x PS/2 Y cable supports 1 keyboard & mouse
4 Ports RS-422/485 module (Option)
4 Ports RS-232 module (Option)
1 x DVI-D, up to 1920 x 1200 pixel at 60Hz (Option)
1 x DP, up to 4096 x 2304 pixel at 60Hz (Option)
1 x LPT (Option)
Storage
2 x SATA 3.0 (600 MB/sec), Swappable Box
Thermal Dissipation
Fan
Expansion Slot
3 x PCI expansion slots
1 x PCIe x 16 expansion slot
32-channel isolated DIO PCIe Card (Option)
Expansion Slot Size: 6.69"(H) x 3.86"(D)
Power Supply
100~240VAC, 4-2 A, 60-50 Hz, 250W AT/ATX
Power Consumption: Typically 0.28A @ 110V (26W)
Max. 0.41A @ 110V (42W)
OS Support
Windows 7/8.1/10, WES7-E/P, WE8S, 4.04, Linux
Weight
11.48 lb

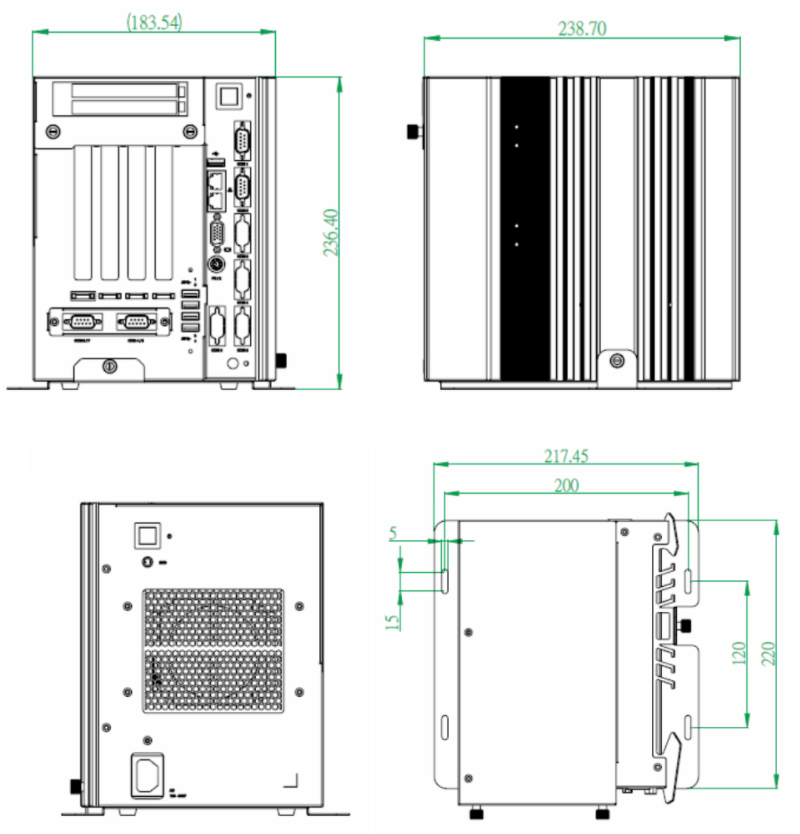

Dimension
7.34"(W) x 9.31"(H) x 9.54"(D)
Environmental
Operating Temperature: -20°C ~ 55°C (-4°F ~ 131°F)
Storage Temperature: -30°C ~ 70 °C (-22°F ~ 158°F)
Vibration: MIL-STD-810G, Method 514.6
Shock: MIL-STD-810G, Method 516.6
Certification
CE, FCC Class A

FES7470:
Expandable embedded system with 6th / 7th generation Core i7 / i5 CPU, VGA, 2 x GbE LAN, 5 x USB 3.0, 4 x COM, DDR4 memory, 3 x PCI & 1 x PCIe x 16 expansion slots, AC power input, wide range operating temperature

Document
Description
Download Link
file iconFES7470-SP.pdf
Spec Sheet
file iconFES747X-UM.pdf
User Manual
