Introduction

Acnodes provide durable and rugged constructions in their panel PC’s and excellent technology to meet the industrial demands of everyday operations. The clear benefits of incorporating panel PC’s is getting rid of the need to integrate computer and monitor, and of course its flexibility to be mounted where you want them to be. These panel PC’s include an embedded processor that allow for up to 7 years of product life support. Different applications call for different sizes of screen sizes. This segments offers various touch screen sizes ranging from 7 to 21.5”. They also feature network ready interfaces for your next IoT applications. The panel PC’s are designed to run for 7-24 hours with industrial grade components with a fanless design.

Fanless Design

The system’s fanless design is a major benefit for the industrial application. A fanless system eliminates noise and dissipates heat more efficiently with heat sinks. This prevents the computer from overheating like most fan systems do.

Environmental

Acnodes Fanless PC’s are designed specifically for industrial environments and harsh environments. All computers feature a standard industrial IP65 ingress protection and constructed with a solid aluminum die-casting chassis. The material is durable and lightweight. Aluminum is known for dissipating heat effectively to prevent the system from overheating. Aluminum die-casting shields the computer from radio frequency and electromagnetic interference.

The panel PC is flexible to be convenient for wherever you need to be. It features an ultra slim enclosure with an all-in-one design function to meet specific requirements in various locations.

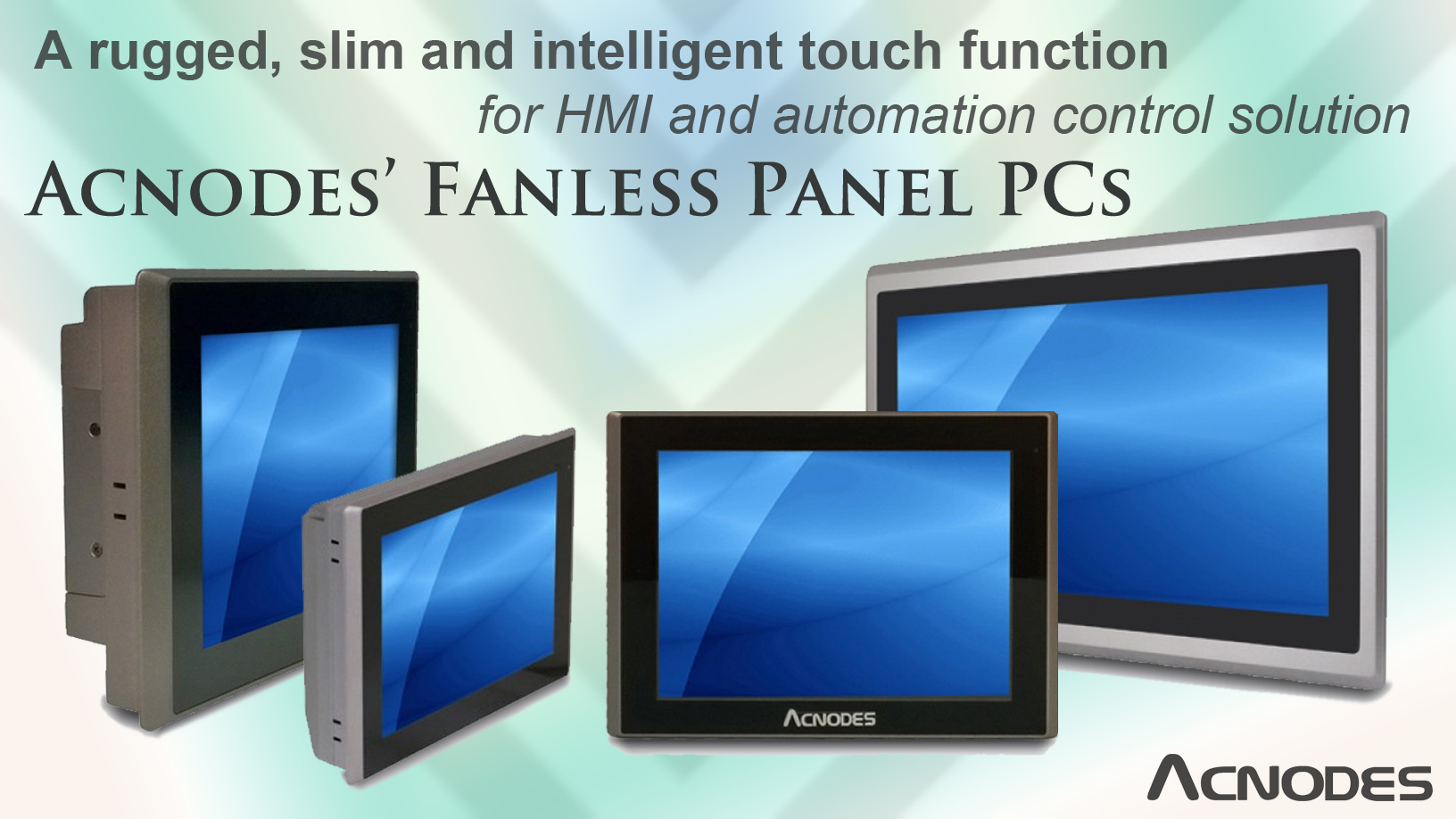

Fanless Panel PC

→  Fanless Panel PCs below 15 inch  ←                         →  Fanless Panel PCs above 15 inch  ←

Model PC9070 PC9080 PC9120 PC9101
LCD Panel 7 inch

800X480

 8 inch

800x600

 12.1 inch

800x600

 10.1 inch

1280x800
Touch Screen



 5-wire Resistive



 5-wire resistive 5-wire resistive 5-wire resistive
CPU Bay Trail N2930 1.83GHz Bay Trail N2930 1.83GHz Bay Trail N2930 1.83GHz Bay Trail N2930 1.83GHz
Memory On board 4GB 1600 Mhz DDR-III SODIMM On board 4GB 1600 Mhz DDR-III SODIMM On board 4GB 1600 Mhz DDR-III SODIMM 4GB 1600 Mhz DDR-III SODIMM
Drive Bay SATA MO-297 SDD bay SATA MO-297 SDD bay 2.25” SATA HDD bay 2.25” SATA HDD bay
Thermal Solution Fanless Fanless Fanless Fanless
Construction Material Solid aluminum die-casting chassis Solid aluminum die-casting chassis Solid aluminum die-casting chassis Aluminum die-casting chassis
Mounting



 Panel / VESA 75 x 75 mm Panel / VESA 75 x 75 mm Panel / VESA 75 x 75 mm Panel / VESA 100 x 100 mm
Color Black & Silver Black & Silver Black & Silver Black & Silver
Dimension 7.95”(W) x 1.54”(D) x 5.87”(H) 9.09”(W) x 1.97”(D) x 6.93”(H) 12.56”(W) x 2.04”(D) x 9.65”(H) 11.22”(W) x 1.93”(D) x 7.44”(H)
Operating Temperature (°C) 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage Temperature (°C) -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
IP Level IP65 front bezel IP65 front bezel IP65 front bezel IP65 rugged enclosure
Power Requirement 9~36VDC with AC adapter 9~36VDC with AC adapter 9~36VDC with AC adapter 9~36VDC with AC

adapter

Model PC9150 PC9156 FPC7719 PC9170 PC9185 PC9215
LCD Panel 15 inch

1024x768

 15.6 inch

1366x768

 19 inch

1280x1024

 17 inch

1280x1024

 18.5 inch

1366 x 768

 21.5 inch

1920x1080
Touch Screen



 5-wire resistive 5-wire resistive 5-wire resistive 5-wire resistive 5-wire resistive 5-wire resistive
CPU Bay Trai N2930 1.83GHz / 4th Gen Core i3 Bay Trail N2930 1.83GHz / 4th Gen Core i3 Intel Atom D2550 1.86GHz Dual Core Bay Trail N2930 1.83GHz / 4th Gen Core i3 Bay Trail N2930 1.83GHz / 4th Gen Core i3 Bay Trail N2930 1.83GHz / 4th Gen Core i3
Memory On board 4GB 1600 Mhz DDR-III SODIMM On board 4GB 1600 Mhz DDR-III SODIMM DDR3 SO-DIMM socket up to 1067MHz On board 4GB 1600 Mhz DDR-III SODIMM On board 4GB 1600 Mhz DDR-III SODIMM On board 4GB 1600 Mhz DDR-III SODIMM
Drive Bay On board 4GB 1600 Mhz DDR-III SODIMM On board 4GB 1600 Mhz DDR-III SODIMM CF external slot, 2.5” SATA HDD bay 2.25” SATA HDD bay 2.25” SATA HDD bay 2.25” SATA HDD bay
Thermal Solution Fanless Fanless Fanless Fanless Fanless Fanless
Construction Material Solid aluminum die-casting chassis Solid aluminum die-casting chassis Aluminum front panel Aluminum die-casting chassis Aluminum die-casting chassis Solid aluminum die-casting chassis
Mounting



 Panel / VESA 100 x 100 mm Panel / VESA 100 x 100 mm VESA 75mm / 100mm Panel / VESA 100 x 100 mm Panel / VESA 100 x 100 mm Panel / VESA 100 x 100 mm
Color Black & Silver Black & Silver Black & Silver Black & Silver Black & Silver Black & Silver
Dimension 16.14”(W) x 2.09”(D) x 12.20”(H) 16.22”(W) x 2.38”(D) x 10.93”(H) 18.54”(W) x 3.14”(D) x 15.59”(H) 17.28”(W) x 2.55”(D) x 13.70”(H) 19.67”(W) x 2.36”(D) x 12.38”(H) 16.14”(W) x 2.09”(D) x 12.20”(H)
Operating Temperature (°C) 0°C to 50°C 0°C to 50°C 0°C to 45/50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage Temperature (°C) -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
IP Level IP65 front bezel IP65 front bezel IP65 front bezel IP65 rugged enclosure IP65 rugged enclosure IP65 front bezel
Power Requirement 9~36VDC with AC adapter 9~36VDC with AC adapter 9~36VDC with AC adapter 9~36VDC with AC adapter 9~36VDC with AC adapter 9~36VDC with AC adapter
