Acnodes Corporations, a leading manufacturer of industrial and embedded computer platforms and technologies, introduced today the launch of the FES9280, a military fanless embedded box PC, powering for high-performance military applications with limited space requirements. With the newest CPU generation, Intel Brand New Skylake 6th Generation Core i7-6600U 2.6GHz, computations will be of acceleration. With a wide range temperature, it is complimented with anti-vibration and anti-shock resistance. This next-generation system offering dramatically enhanced processing capability, multiple advanced I/O features in a smaller highly rugged form factor will meet all the expectations.

FES9280 has as much as 16 GB of DDR3L 1600MHz whereas the standard for 8GB, as well as a 2.5” SSD in Hot swappable array and a mSATA SSD 64GB cache for system boot. The Ethernet supports Intel i210 Ethernet Controller and Intel i290 Ethernet Connection. VGA and DVI output accepted. It includes multiple optional features such as HDMI, DP output, full size miniPCIe for wireless card IEEE 802.11 a/b/g/n 2x2 Dual Band, and full size miniPCIe for WWAN 3G/4G card integrated.

I/O for Signal includes two USB 2.0 interfaces, RS232, RS422, GbE LAN (optional for two GbE LAN), HDMI port (either or eDP Port), and VGA port. The power input supports DC 9~36V input. The two SMA antennas are optional.

With its , FES9280 provides for complete dust proofing, against water immersion durability, and anti-corrosion housing yet maintaining its lightweight capability. The fanless feature also contribute to resourcefully dispersing heat while protecting internal components from environmental damage ranging from dust and airborne debris to extreme temperatures, moisture, and vibration.

The lightweight embedded box weighs The  The shock resists at 40G, 11ms, of MIL-STD-810F Method 516.5 Procedure I. The vibration resists at 2.5G, 11ms, of MIL-STD-810F Method 514.5 Procedure I. These features meet the severe environment operational demands in many industries and are reliable in the multitude of conditions.

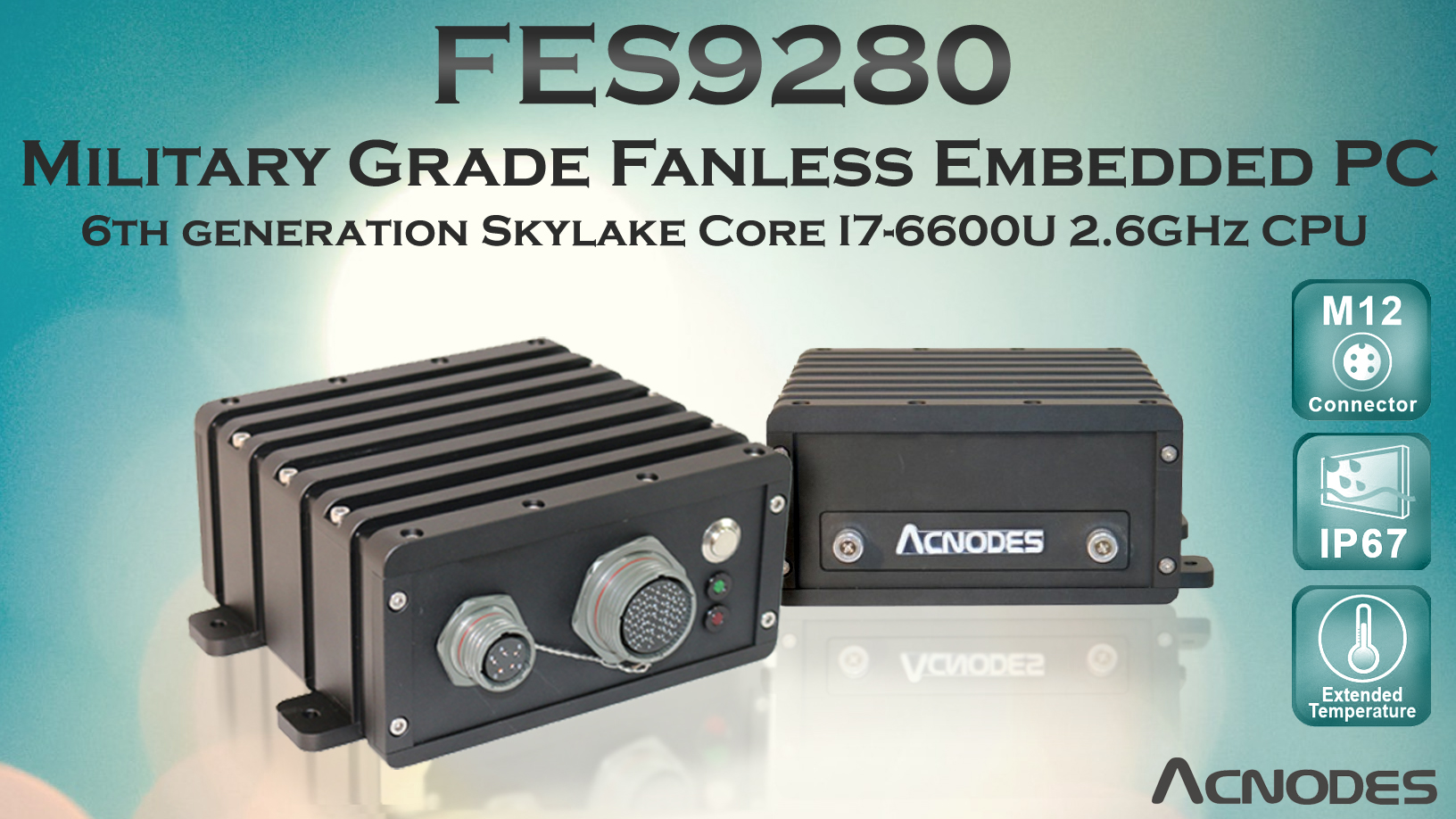

FES9280 Embedded Computer

FES9280: Acnodes Full-IP67 Military Grade Embedded Computer with 6th generation Skylake Core i7-6600U 2.6GHz CPU, fanless industrial design, configurations with up to 8GB DDR3 memory, 64GB mSATA SSD, 1 x Ethernet, 2 x Serial, 2 x USB, VGA & DVI video output, 9-36V DC power input.

A full listing of Fanless Embedded Computers from Acnodes:

  • Fanless Embedded PC– Embedded computer with low power consumption processor within a rugged compact enclosure
    •Mini NUC Embedded PC – Embedded computer utilizes a compact rugged NUC form factor enclosure with high performance processor
    •Embedded PC with Expansion Slots – Embedded computer with PCI/PCIe high-speed expansion slots in a compact enclosure
    •Wide Working Temperature Embedded PC – Embedded computer with aluminum heat sink and heavy duty steel frame allow unit work under a wide range working temperature in a harsh working environment

Our product line’s configurations are located on www.acnodes.com. However, most of the commercial and industrial computers can be custom built to customers’ preference. Contact us via email at [email protected] or telephone (1-909-597-7588) for more information.

 About Acnodes Corporations

Acnodes manufactures, designs, and markets industrial computers and displays for diverse industries ranging from automation to military. We have an array of technological innovations in the area of rackmount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strive to explore new technologies to better improve life and work.
