With features of touch screen, 1024 x 768 LED backlight, ATX 130W power supply, rich I/O ports, VGA, RS232, Windows 7 compatible, and low power consumption, it displays a sleek design of IP65 rated stainless steel providing outstanding performance and clean application.

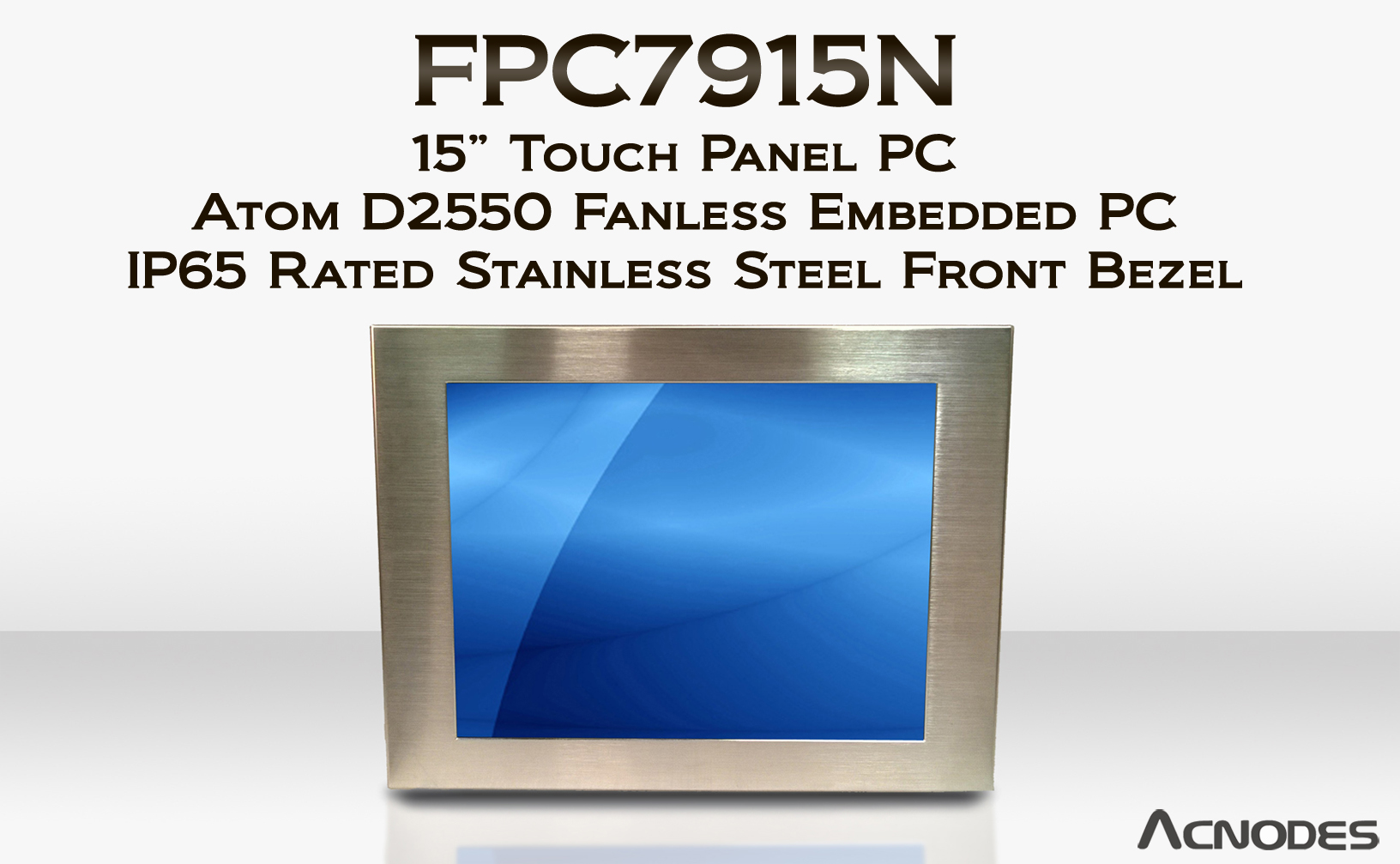

Acnodes Corp., a leading manufacturer of industrial and embedded computer platforms and technologies, announced today the launch of a new panel PC, FPC7915N. The price competitive FPC7915N features an Atom D2550 1.86GHz fan less embedded system with 5-wire resistive type touch screen, rich I/O ports, 130W ATX power supply, and is all protected with IP65 rated stainless steel front bezel. The launch of FPC7915N is accompanied alongside FPC7917N and FPC7919N with the same specifications but of 17 inch and 19 inch, respectively.

FPC7915N is equipped with IP65 rated stainless steel front bezel, making it ideal for rugged and sensitive environments like kitchens, food processing plants, hospitals, and as well as industrial application where quality is a major issue. The stainless steel offers convenient and easy clean ups with the hygienic qualities and IP65 has complete protection from dust, oil, and other non-corrosive material. It also has protection from water projected by a nozzle against enclosure from any direction, providing protection from contact with enclosed equipment.

The fan less system of Atom D2550 1.86GHz CPU is specifically optimized for improved performance and energy efficiency. The chipset is of NM10, memory contains 204-pin DDR3 800/1066MHz SODIMM with maximum 4GB, and storage supports two 2.5” HDD bay or one 2.5” HDD with one slim SATA DVD. The rich I/O ports include four COM ports supporting +5V or +12V (COM2 for RS-232/422/485), six USB 2.0, two LAN, VGA, PS/2, parallel port (SPP/EPP/ECP), digital I/O of 4-in/4-out with 5V and 12V, and Audio. The mentioned I/O ports allow the convenience for users to connect to their own devices. The unit is Windows 7 compatible with options for Windows 7 Pro 32bit or 64bit.

The resistive type touch screen monitor with USB is complemented with resolution of 1024 x 748 and 400-nits brightness with 1~255 second watchdog timer. Its power supply is of ATX 130W and has optional VESA mount and two PCI slot. The dimension of 15.86”(W) x 3.38”(D) x 11.93”(H) and 15.65 lbs can handle the operating temperature ranging from 32°F to 104°F (0°C to 40°C) with relative humidity tolerating 20 to 90%.

FPC7915N-PR

FPC7915N: Acnodes 15” 1024 x 768 Panel PC with 5-wire resistive type touch screen, Atom D2550 1.86GHz fanless embedded PC, IP65 rated stainless steel enclosure, configurations with up to 4GB DDR3 memory, 2 x Ethernet, 4 x Serial, 6 x USB, ATX power supply.

FPC7917N: Acnodes 17” 1280 x 1024 Panel PC with 5-wire resistive type touch screen, Atom D2550 1.86GHz fanless embedded PC, IP65 rated stainless steel enclosure, configurations with up to 4GB DDR3 memory, 2 x Ethernet, 4 x Serial, 6 x USB, ATX power supply.

FPC7919N: Acnodes 19” 1280 x 1024 Panel PC with 5-wire resistive type touch screen, Atom D2550 1.86GHz fanless embedded PC, IP65 rated stainless steel enclosure, configurations with up to 4GB DDR3 memory, 2 x Ethernet, 4 x Serial, 6 x USB, ATX power supply.

Look inside to discover full range of Panel PCs from Acnodes

•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Rugged Industrial and Military Panel PC - Panel PCs that meet MIL-810G-STD testing standard for industrial and military computing applications.
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications
•Stainless Steel Panel PC – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions

Our product line configurations are illustrated on our website at Acnodes.com. However, most of the commercial and industrial computers are custom built to customers’ exact requirements. Contact us via e-mail: [email protected] or telephone (-909-597-7588) for more information.

About Acnodes

Acnodes manufactures, designs, and markets industrial computer and display solutions for diverse industries ranging from automation to military. We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PCs, and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
