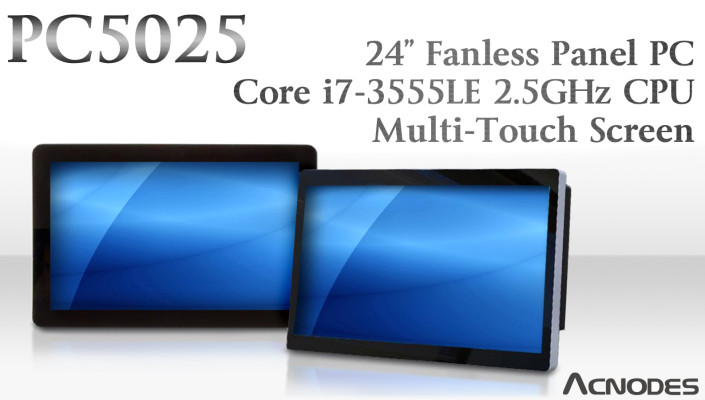

Acnodes Corporation has announced the launch of the PC5025, a new fanless multi-touch panel PC. The unit is powered by a faster, more powerful Core i7-3555LE 2.5GHz processor, allowing end-users to experience maximum performance for everything they do. The PC5025 is equipped with a 24 inch flat touch panel LCD that supports 1920 x 1080 pixels full HD resolutions and incorporates projected capacitive technology with multi-touch capacity. The fanless Panel PC features a multitude of I/O connectivity built directly into its impressively small design such as; two Gigabit LAN, a USB 3.0, two USB 2.0, three Serial, Intel HD graphics and HDMI. The PC5025 also supports up to 8GB of DDR3 memory and has optional built-in 802.11 b/g/n/ac + Bluetooth 4.0 wireless networking. With its rich I/O ports, this new solution makes it an ideal human machine interface (HMI) platform for a variety of applications that are in need of peripheral connectivity, including information management, transportation, industrial automation and a variety of commercial and industrial applications.

The PC5025 comes with an ultra slim profile with only 2.13 inch depth and supports optional VESA or panel mounting. It enables easy installation in extreme and space-constricting environments. Acnodes has also kept in mind the industrial aspect of the Panel PC. The PC5025 is made with a robust mechanical design, has an IP65 rated front bezel to protect against dust and water, and supports a wide operating temperature from 14°F to 122°F (-10°C to 50°C) and relative humidity of 10% to 95%. Moreover, the PC5025 boasts of anti shock and vibration resistance. Its fanless design also ensures silent operation, improved reliability and reduced maintenance.

PC5025: Acnodes 24” Ultra Slim Multi-Touch Panel PC with projected capacitive touch screen, Core i7-3555LE 2.5GHz, IP65 rated front panel, configurations with 4GB DDR3 memory, 2 x Ethernet, 3 x Serial, 3 x USB, HDMI output, 9~36V DC power input.

Look inside to discover full range of Panel PCs from Acnodes
•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Rugged Industrial and Military Panel PC - Panel PCs that meet MIL-810G-STD testing standard for industrial and military computing applications.
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications
•Stainless Steel Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions

Our product line configurations are illustrated on our web site at Acnodes.com.  However, most of the commercial and industrial computers are custom built to your exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) to discover how we can give you the equipment you need for your specific needs.

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
