Acnodes, a quality provider of industrial computers, announces the release of the PCV5104, an ultra rugged military grade Panel PC. This Panel PC is engineered and certified to withstand extremely harsh environments, which is ideal for military mission critical applications. With its MIL-STD-810G compliance, it can survive wild temperature ranging from -13 ºF to 140 ºF.  It also boasts of anti shock and vibration resistance, fully IP65 rated anti corrosion panels and fanless design that increases durability and provides longer life while reducing down time.

Based on the Fintek F81866 chip set, PCV5104 is powered by the latest low power consumption high performance Intel Bay Trail Celeron N2930 1.83GHz 4-Core processor.  This rugged Panel PC comes standard with one on board DDR3 SO-DIMM socket with a maximum of 8GB system memory and one 2.5 in. SATA Hard Disk Drive along with dual Ethernet, one COM port, two USB ports, and a HDMI port to accommodate a wide range of connectivity requirements. To facilitate access to wireless network, the PCV5104 supports on board WiFi and 3G. Moreover, the PCV5104 has proven to provide critical information on and off the battle field. With a 10.4 inch high image quality 5-wire resistive type touch screen monitor, the PCV5104 supports up to 1024 x 768 pixels resolution, offers 16.2 million colors, and sunlight readable 800 nits high brightness level with a viewing angle of 176 degrees.

In addition to panel mounting, PCV5104 is compliant with VESA mounting standards. Standard VESA 75mm spaced mounting holes are available on the rear for easy mounting to any fixture or wall which enables users to run demanding applications in the field, floor or office environment.

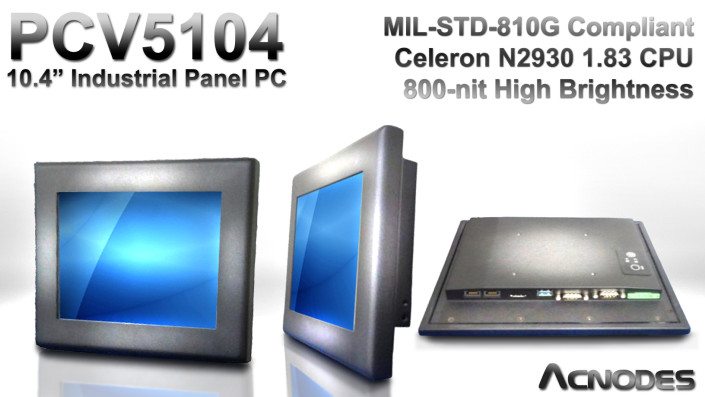

PCV5104: Acnodes 10.4” Industrial Touch Screen Panel PC with 5-wire resistive touch screen, Bay Trail Celeron N2930 1.83GHz, MIL-STD-810G compliance, fanless industrial design, Fully IP65 rated, configurations with 4GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 1 x Serial, 2 x USB, WiFi, 3G, 9-36V DC power input.

Look inside to discover full range of Panel PCs from Acnodes
•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Industrial Grade Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications

Most of the commercial and industrial computers are custom built to customers’ exact requirements. For detailed specifications, technical assistance, and/or additional information, please contact our representative via e-mail at [email protected], telephone (1-909-597-7588), or visit our main website at Acnodes.com.

Panel PCs from Acnodes are now also available through Amazon.com , Sears.com and is featured on Intel.com

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
