Acnodes - a leading manufacturer of industrial and embedded computer platforms and technologies - announces the launch of FES8660, a fanless embedded system based on the 3rd generation Core i7 / i5 / i3 or Celeron Processor and HM76 Express Chipset. It features a robust fanless design and is an ideal solution for video applications, digital signage, outdoor advertising, POS/kiosks, and gaming. In addition, this application-ready rugged platform also targets a broad range of industrial computing applications such as embedded controllers, factory automation, and more.

The FES8660 includes a VGA out video interfaces, 4 COM ports, four Gigabit LAN ports, four USB 3.0 ports, and audio for administration and software input. Moreover, the FES8660 has two 204-pin DDR3 memory maximum up to 16GB, one 2.5” SATA drive bay, and CFast slot for solid-state storage. The FES8660 provides good expansion capability by offering two PCI Express Mini Card slots and two SIM card sockets allowing more efficient, seamless networking options. The onboard Core i7 / i5 / i3 or Celeron processor couples low power consumption with minimal cooling requirements, resulting in improved stability and longevity and allowing for completely fanless computer design.

The FES8660 is enclosed in a rugged aluminum cold-rolled steel chassis and is tested for deployment in temperatures from -40°F to 158°F. Measuring only 2.75” in height, the FES8660 includes optional wall mounting brackets for easy installation on any locations where space is critical. FES8660 has a built-in Watchdog Timer to reset the system after a crash or system error, which reduces the need for maintenance. Last but not least, the FES8660 is fully compatible with the Windows Standard Embedded 7 / 8 and Linux.

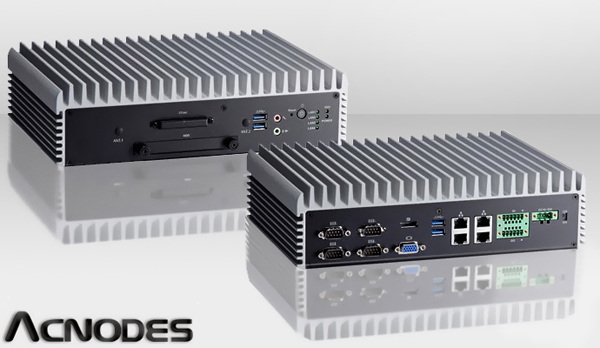

FES8660: Acnodes  Embedded Computer with Core i7 / i5 / i3 or Celeron CPU, fanless industrial design, configurations with two up to 16GB DDR3 memory, 1 x 2.5” SATA HDD, 4 x Ethernet, 4 x Serial, 4  x USB, VGA / DisplayPort video input, 10-30V DC power input.

For a full listing of Fanless Embedded Computers from Acnodes, please visit:
•Embedded PC with Atom CPU – Embedded computer with low power consumption Atom processor within a rugged enclosure
•Embedded PC with Multiple Core CPU – Embedded computer utilize high-performance multiple Core processor in a rugged enclosure
•Embedded PC with Expansion Slots – Embedded computer with PCI/PCIe high-speed expansion slots in a compact enclosure

Our embedded computer product line configurations are illustrated on our web site at Acnodes.com.  However, most of the commercial and industrial computers are custom built to customer’s exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) for more information.

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
