• HMI Panel PC comes with 15-inch 1024 x 768 resistive type touch screen monitor
• Intel Atom D525 Dual-Core 1.8GHz processor with an ICH8M chipset
• Stainless stain housing and IP 65 rated front bezel

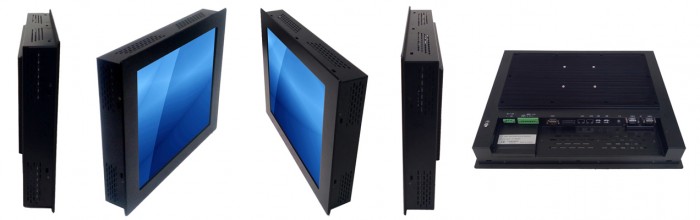

 Acnodes Corporation launches its new fanless touch panel PC, FPC7615. Powered by an Intel Atom D525 Dual-Core 1.8GHz processor with an ICH8M chipset platform, this fan-less panel includes a 1GB DDR3 memory module and can be upgraded to accommodate up to 4GB’s of memory. It features superior performance for the majority of applications while consumes a small amount of power.

The fan-less design also ensures silent operation, improved reliability and reduced maintenance. Equipped with a 15 inch resistive type touch screen and a resolution of 1024 x 768 pixels it is housed in a stainless steel casing that has a full IP65 rated front panel. This will allow the FPC7615 to be used extensively in rugged environments. The panel PC includes all required interfaces for HMI or terminal applications: 2 x Gigabit Ethernet, 4 x USB 2.0, 3 x serial ports, 1 x 2.5” SATA HDD and an optional CF slot for storage capacity.

FPC7615 features extended operating temperature ranges from -4°F to 122°F (-20°C to +50°C) and relative humidity of 10% to 90%, enabling their use in a wide range of applications. To fulfill different application needs and to secure the system from power input change, the system accepts an 11~32V wide range DC power input. There are various operating systems to choose from.  Windows CE 6.0, Windows XP Pro and/or Windows 7/XP Embedded. To accommodate different types of mounting and installation, the FPC7615 offers panel mount and is also equipped with standard 75 x 75mm VESA mounting holes.

FPC7615: Acnodes 15” Fanless Touch Screen Panel PC with resistive type touch screen, Atom Dual Core D525 1.8GHz, stainless steel chassis, IP65 rated front panel, configurations with 2GB DDR3 memory, 1 x 2.5” SATA HDD, 2 x Ethernet, 3 x Serial, 4 x USB, 11-32V DC power input. Option for external CF slot.

Look inside to discover full range of Panel PCs from Acnodes
•Panel PC with up to 12” Touch Screen – Panel PCs with 5.7” to 12” touch screen
•Panel PC with up to 19” Touch Screen - Panel PCs with 15” to 19” touch screen
•Panel PC with Expansion Slots – Panel PCs with PCI or PCI Express expansion slots
•Industrial Grade Panel PC  – Panel PCs with IP protection enclosure to cope industrial applications with harsh environmental conditions
•Medical Grade Panel PC – Panel PCs with anti-bacteria coating, water/dust proof slim casing
•Open Frame Panel PC – Panel PCs with rugged metal open frame housing for wall or VESA mounting
•Slim Design Panel PC – Panel PCs with ultra-slim housing for space-limited industrial applications

Our embedded computer product line configurations are illustrated on our web site at Acnodes.com.  However, most of the commercial and industrial computers are custom built to your exact requirements. Contact us via e-mail: [email protected] or telephone (1-909-597-7588) to discover how we can give you the equipment you need for your specific needs.

Fanless Panel PCs from Acnodes are now also available through Amazon.com , Sears.com and is featured on Intel.com

About Acnodes
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.

FPC7615
