The KDR-AV19 is a 2U multi-display console drawer featuring dual or triple 19" LCD monitors. The consoles support 1280 x 1024 native resolution, VGA + DVI-D video input, a 104-key keyboard with a 2-button touchpad, and 100/240VAC power input. Designed for small size and transit case portability, the KDR-AV19 is enclosed in a 2U high 22" depth enclosure with a firm and rigid handle design for easy access.
KDR-AV19
- 2U multi-display rackmount display drawer
- Dual or triple 19" industrial LCD panels
- Supports 1280 x 1024 native resolution
- 104-key keyboard with touchpad
- VGA + DVI-D video input
- Option for HDMI or 3G-SDI input (per panel)
- Built-in solid bearing slide rails & dual stereo speaker
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V DC power input
In stock
SKU
KDR-AV19
19" 1280 x 1024 multi-display rackmount console drawer with dual or triple displays, a 104-key keyboard with touchpad, VGA + DVI-D video input, and a 2U high rack enclosure.
- Material
- Heavy-duty steel
- LCD Panel
- Size: 19 inch
Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Display Area (mm): 337.92H x 270.33V
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.294
Colors: 16.7M
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
- LCD Mounting Position
- KDR-AV19-2L: Dual display (left hinged mount)
KDR-AV19-2R: Dual display (right hinged mount)
KDR-AV19-3: Triple display
- KB & MS
- 104-key keyboard with touchpad pointing device
Option for keyboard with trackball pointing device
- Video Input
- Standard: VGA + DVI-D
Option: HDMI 2.0 or 3G-SDI input (per panel)
- Front Panel Control
- Power on/off switch
OSD (on-screen display)
- Drawer Design
- Built-in solid bearing slide rails
Mounting Distance: 21.7~31.1 inch (550~790 mm)
- Power Supply
- Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption Per Panel: Max. 22W, Saving Mode 2W
Option for 12V / 24V / 48V DC power input
- Color
- Black
- Weight
- Dual Display: 48.4 lb / 22 kg
Triple Display: 58.7 lb / 26.7 kg

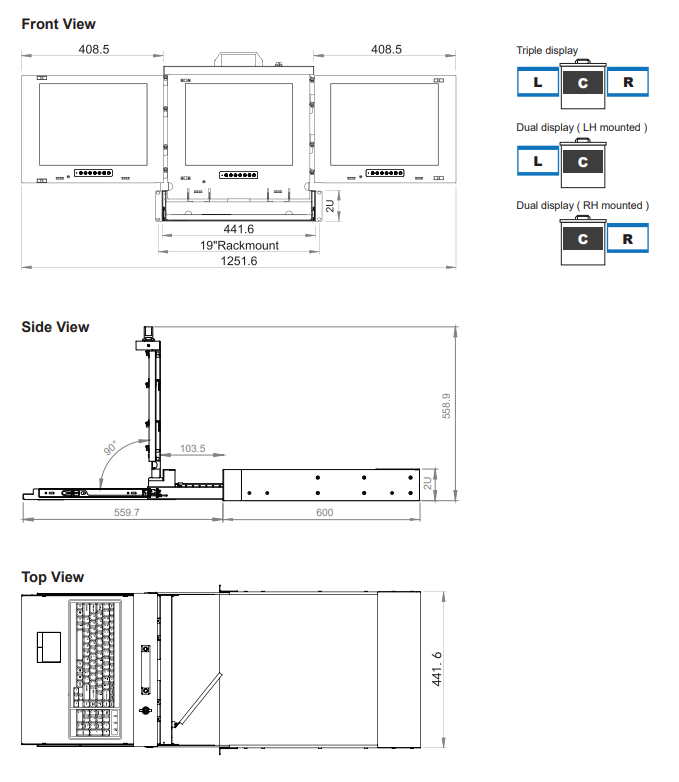

- Dimension
- Product: 22.8"(W) x 23.6"(D) x 7.8"(H)
Packing: 22.9"(W) x 29.7"(D) x 8.5"(H)
- Environmental
- Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
- Compliance
- CE, FCC, RoHS, TAA
KDR-AV19-2L:
Dual 19 inch 1280 x 1024 industrial LCD panels, left & center mounted display, VGA + DVI-D video input, 104-key keyboard with touchpad, 2U high 23.6 inch depth rackmount drawer, Black color.
KDR-AV19-2R:
Dual 19 inch 1280 x 1024 industrial LCD panels, center & right mounted display, DP 1.2 video input, 104-key keyboard with touchpad, 2U high 23.6 inch depth rackmount drawer, Black color.
KDR-AV19-3:
Triple 19 inch 1280 x 1024 industrial LCD panels, VGA + DVI-D video input, 104-key keyboard with touchpad, 100/240VAC power input, 2U high 23.6 inch depth rackmount drawer, Black color.
Document
Description
Download Link
KDR-AV19-SP.pdf Spec Sheet (Coming Soon)
