NOTICE: PRODUCT EOL. PLEASE VISIT 3U RACKMOUNT COMPUTERS FOR RELATED PRODUCTS.
The RMC7312A is a 3U rackmount computer supporting a standard ATX motherboard with the latest Intel processors. The system includes 1 x 5.25" & 2 x 3.5" external drive bay, 2 x 2.5" internal drive bay, and 7 x expansion slots in a 3U high 17-inch short-depth rackmount chassis for space-critical applications. The 3U rackmount PC supports front access dual USB ports and three cooling fans for superior cooling abilities. Designed to serve in a wide range of applications, the RMC7312A is fully customizable and offers options for additional storage space, removable drive bay options, add-on cards, graphic cards, and Windows OS.
RMC7312A
- 3U high rackmount computer
- 17" short depth rackmount chassis
- 12th/11th/10th Generation Intel processors
- Standard ATX motherboard
- 7 x expansion slots
- 8GB DDR4 RAM (Up to 64GB) & 250GB NVMe M.2 SSD
- 1 x 5.25" external, 2 x 3.5" external, 2 x 3.5" internal drive bays
- 3 x cooling fans & front access dual USB ports
- 300W 2U power supply, option for 600W 2U power supply
In stock
SKU
RMC7312A
3U rackmount computer featuring a standard ATX motherboard with the latest Intel processors, 5 x drive bays, 7 x expansion slots, 2 x front USB ports, and a 300W 2U power supply in a 3U high 17” short-depth rackmount chassis.
- Construction
- Heavy duty cold rolled steel
EIA-RS310D rackmount standard
- Standard ATX M/B
- Size: 12” x 9.6” standard ATX motherboard
Processor:
RMC7312A-A – Intel 10th /11th Generation Processor
RMC7312A-B – Intel 12th Generation Processor
RMC7312A-C – Intel 10th Generation Processor / Long Life Cycle M/B (Q2 2030)
Memory: 4 x DIMM memory sockets (up to 64GB)
On-board LAN, Audio, Video
SATA Controller
USB ports
- Drive Bays
- 1 x 5.25” external drive bay
2 x 3.5” external drive bays
2 x 3.5” internal drive bays
- Expansion Slot
- 7 x expansion slots
- Front Panel Control
- Power ON/OFF button
System Reset button
2 x USB ports
- LED Indicator
- LED indicators for Power Status, LAN Activity, and Drive Activity
- Cooling Fan
- Middle: 2 x 80cm ball-bearing fans
Rear: 1 x 80mm fan
- Power Supply
- 300W 2U power supply
Option for 600W 2U power supply
- Color
- Black
- Weight
- 40 lb / 18.14 kg

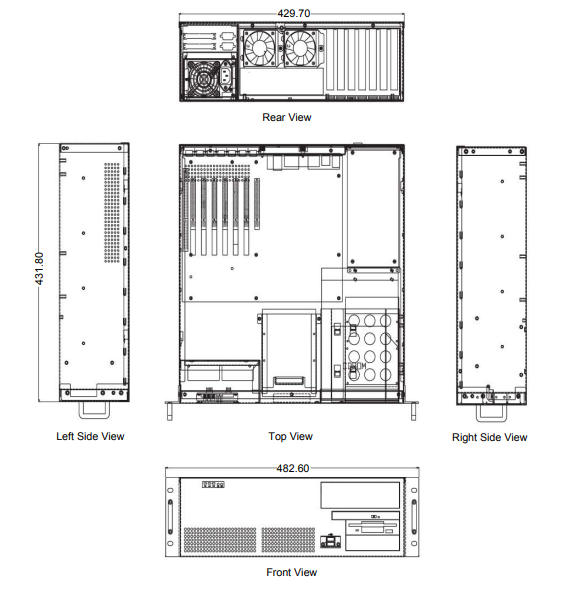

- Dimension
- 19"(W) x 17"(D) x 5.25"(H)
- Environmental
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 5~95%, non-condensing
RMC7312A-A:
3U rackmount computer, Intel 10th/11th Generation processors, standard ATX motherboard, 8GB DDR4 memory, 7 x expansion slots, 300W 2U power supply, 3U high 17 inch short-depth rack chassis, Black color.
RMC7312A-B:
3U rackmount computer, Intel 12th Generation processors, standard ATX motherboard, 8GB DDR4 memory, 7 x expansion slots, 300W 2U power supply, 3U high 17 inch short-depth rack chassis, Black color.
RMC7312A-C:
3U rackmount computer, Intel 10th Generation processors, long-life cycle industrial ATX motherboard, 8GB DDR4 memory, 7 x expansion slots, 300W 2U power supply, 3U high 17 inch short-depth rack chassis, Black color.
Document
Description
Download Link
RMC7312A-SP.pdfSpec Sheet
