NOTICE: PRODUCT CURRENTLY NOT AVAILABLE. RELATED PRODUCT: PM6120- 12.1" 800 X 600 OPEN FRAME MONITOR

Loading...
PM-S0104

PM-S0104

PM-S0150

PM-S0150

PM-S0120

  • Open frame monitor with front mounting bracket
  • 12.1 inch 800 x 600 LED backlight monitor
  • 350-nits high brightness LCD panel
  • VGA video input, option for DVI, DVI+HDMI, or SV+AV
  • Option for touch screen & light or motion sensor
  • -30°C to 70°C wide range working temperature
  • Option for 700 / 1000 nits high brightness panel
  • Panel or VESA (75mm) mount ready
  • External AC adapter, option for 24VDC power input
Availability: In stock
SKU
PM-S0120
Email

12.1 inch 800 x 600 LED backlight 350-nit LCD with VGA port & -30 to 70 degree C wide range working temperature, integrated into a rugged open frame monitor, Option for touch screen, DVI, HDMI or SV+AV input, 700/1000-nits panel, motion or light sensor & 24V DC power input.

Material
Heavy duty steel
LCD Panel
Size: 12.1 inch
Max Resolution: 800 x 600
Brightness: 350 nits
Contrast Ratio (typ) : 600:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 246.0 x 184.5
Colors: 262K
Backlight: LED
MTBF (hrs): 35,000
Option 700 / 1000 nits high brightness panel
Option digital signage (stand-alone), MP 480P/1080P
Option motion sensor or light sensor
Video input
VGA video input
Option for DVI or DVI + HDMI or SV + AV
Touch Screen (Option)
Resistive, Capacitive or SAW type touch screen - USB port
LCD Protection (Option)
Protected glass (AR/AR with anti-vandal/AG)
Rear panel control
Power on/off switch
OSD membrane switch
Audio System
2W speaker x 2
Mounting Type
Open frame monitor with front mounting bracket
VESA (75mm) mounting holes
Connectors
1 x VGA port (15 pin female D-Sub)
1 x PC Audio (stereo headphone jack)
1 x DC power plug
Power Supply
External auto-sensing 90 to 260VAC, 50/ 60Hz power adapter
Option for 24VDC power supply
Weight
9.92 lb

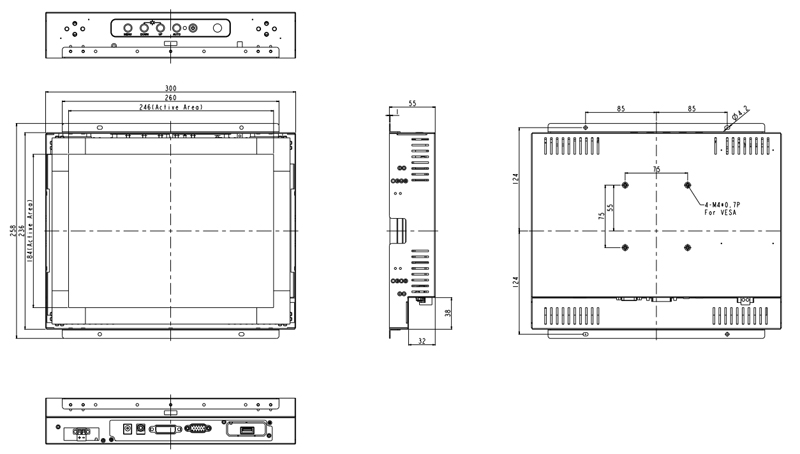

Dimension
11.81"(W) x 10.16"(H) x 2.17"(D)
Environmental
Operating Temperature: -30°C to 70°C (22°F to 158°F)
Storage Temperature: -30°C to 80°C (22°F to 176°F)
Relative Humidity: 10~90%, non-condensing
Certification
FCC, CE

PM-S0120:
12.1 inch 800 x 600 350-nit high brightness LCD panel & open frame monitor, VGA video input, black color.
Option for touch screen, SV / AV / DVI / HDMI, high brightness panel, motion sensor, light sensor, digital signage (stand-alone) & DC power supply.

Document
Description
Download Link
file iconPM-S0120-SP.pdf
Spec Sheet
  • PM-S0120
    12.1 inch 800 x 600 panel mount monitor
    350-nits high brightness LCD panel
    Option for 700 and 1000-nits sunlight readable LCD panel
    Option for light and motion sensor
    15-pin VGA video input
    Option for DVI, SV+AV video input
    Option for touch screen
    External 110/220VAC power adapter
    Option for 24VDC power input
    Option for AR or AG glass protection
    Option for digital sigbage - stand alone
    Open frame monitor with front mounting bracket and VESA mounting holes
    Starting at:
PM-S0120

PM-S0120 displays a 12.1 inch TFT LCD industrial monitor with a wide range operating temperature enabling to function in harsh environments in industrial or commercial industries. The unit includes 350-nits high brightness, VGA video input, external AC adapter, and many optional features to add on for even more protection.

Features:
- Heavy-duty steel with an open frame LCD monitor
- Wide range of operating temperature from -22°F to 158°F (-30°C to 70°C)
- Wide storage temperature from -22°F to 176°F (-30°C to 80°C)
- Able to withstand relative humidity of 10~90%, non-condensing
- 12.1 inch 800 x 600 thin-film-transistor LCD with LED backlight
- 350-nits brightness with the option for 700 or 1,000-nits high brightness
- Contrast ratio of 600:1, 262K colors, and mean time between failure (MTBF) at 35,000 hours
- Option for digital signage (stand-alone), MP 480P or 1080P
- Option for motion sensor or light sensor
- Option for resistive, capacitive, or SAW type touch screen with USB port
- Option for protected glass (AR/AR with anti-vandal/AG)
- Audio system of 2W speaker x 2
- Mounting types include a front mounting bracket and VESA mounting holes
- Connectors include VGA port (15 pin female D-Sub), PC Audio (stereo headphone jack), and DC power plug
- External auto-sensing 90 to 260VAC, 50/60Hz power adapter with option for 24VDC power supply
- Slim design of 11.81"(W) x 10.16"(H) x 2.17"(D) and 9.92 lbs
