Fully IP65 rated embedded computer integrated 17 inch touch screen monitor with Atom N455 1.66GHz fan less processor and stainless steel full flat front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.

PCH7793

  • Panel PC PCH7793 Rear View

PCH7793

  • 17 inch 1280 x 1024 550-nit industrial display panel
  • Features full flat front bezel design
  • Projective capacitive type touch screen monitor
  • Atom N455 1.88GHz fan less embedded computer
  • 2GB memory & 2.5" SSD or SATA HD storage device
  • Fully IP69K rated stainless steel enclosure and fornt bezel
  • 11~32V DC power input with adapter

Quick Overview

Panel PC - 17 inch 1280 x 1024 projective capacitive type touch screen monitor, Atom N455 1.66GHz fan less industrial embedded computer & fully IP69K rated waterproof stainless steel enclosure & full plat front bezel.

Material
Stainless Steel

LCD Panel
Size: 17”
Backlight: LED
Display Color: 16.7M
Brightness: 550
Display Resolution: 1280 x 1024
Viewing Angle (H/V): 170'(H)/ 160'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen typr (resistive) MCS Multi-Display
Control Solution, Protective Glass, TV-PAL or NTSC

OSD Control (On Screen Display)
Auto-adjusment for brightness, contrast, phase & clock,
color, horizontal-position, vertical - position, auto-tune & recall

Signal Input
HDMI / DVI-D / VGA / S-VIDEO / RCA

Connectors
1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x Power Button
1 x RJ-45 GbE LAN
1 x DB-9 RS-232 (COM 1) connector
1 x DB-9 RS-422/485 (COM 2) connector
2 x USB ports

Dimension
432mm x 68.2mm x 358mm
17.01" x 2.68" x 14.09"
(W) x (D) x (H)

Weight
21.60 lbs

Color
Stainless steel

Mounting
VESA 75mm x 75mm

IP Rating
IP69K

Power supply
DC 11~32V


Touch screen
Option for capacitive or resistive touch screen

Certificate
CE, FCC


Environmental
Environment Temperature
Operating: 0 to 50 degree C
Storage: -30 to 70 degrees C
Humidity: 10~90% @ 40C non-condensing




PCH 7793A:
The 17" 1280 x 1024 touch Panel PC comes with resistive-type touch screen, Intel Atom N455 processor.
2.5" SATA2 320GB Industrial HDD with projective capacitive touch, ultra slim IP69K rated enclosure.
2GB DDR3 800 MHz memory, full flat bezel design
 and made of great stainless steel workmanship.
Wide work temperature range 11~32V DC power input with adaptor.

Price start from: $2,745.00


PCH 7793B:
The 17" 1280 x 1024 touch Panel PC comes with resistive-type touch screen, Intel Atom N455 processor.
2.5" SATA 8GB SLC SSD with projective capacitive touch, ultra slim IP69K rated enclosure.
2GB DDR3 800 MHz memory, full flat bezel design
 and made of great stainless steel workmanship.
Wide work temperature range 11~32V DC power input with adaptor.

Price start from: $2,735.00

No options of this product are available.

Document Description Download Link
file icon PCH_7793-data.pdf Data Sheet

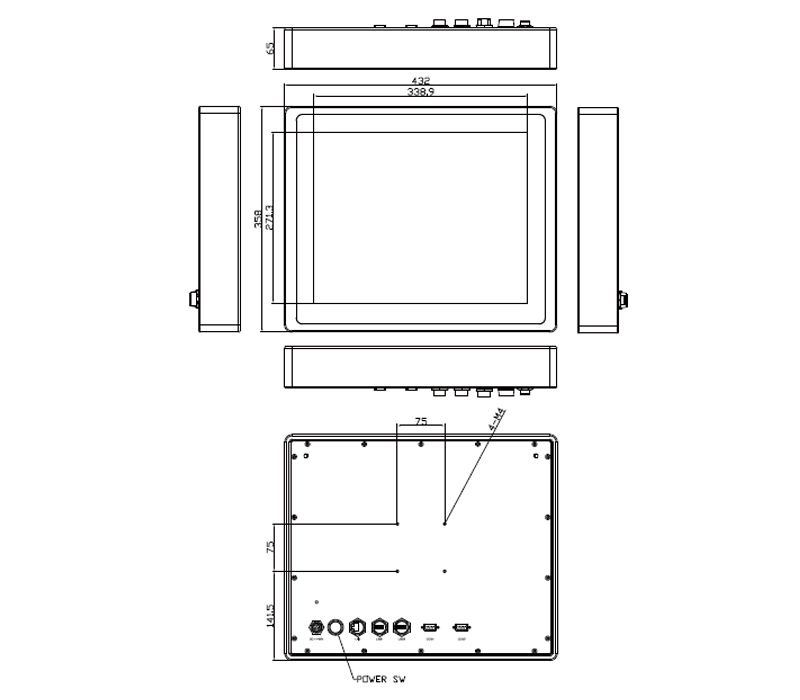

file icon PCH_7793-dim.pdf Dimension
