PC9185
- 18.5 inch 1366 x 768 350-nit industrial LCD panel
- Die-cast aluminum bezel with IP66 rated waterproof front bezel
- Intel Celeron N2930 CPU / 8th generation Intel Core i3-8145UE CPU
- 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
- Resistive type touch screen, option for Projected Capacitive touch screen
- Option for 1000-nit high brightness display or optical bonding
- Option for additional I/O ports and mini PCIe slot full size
- Wide range 9 to 36V DC power input
18.5" 1366 x 768 panel PC with Celeron N2930 / 8th gen. Core i3-8145UE CPU, fanless cooling system, aluminum die-casting chassis, and an IP66 rated flat front bezel.
- Material
- Aluminum die-casting chassis
IP66 rated rugged enclosure
- LCD panel
- Size: 18.5 inch TFT LCD
Resolution: 1366 x 768
Brightness (cd/m²): 350
Contrast Ratio: 1000:1
Viewing Angle (H/V): 170° x 160°
Colors: 16.7M
MTBF (hrs): 50,000
- Touch Screen
- Resistive type touch screen
Light Transmission: 80%
Interface: USB
Projected Capacitive type touch screen (option)
Light Transmission: 90%
Interface: USB
- System
- CPU: Celeron N2930 1.83GHz / 8th gen. Core i3-8145UE CPU
Memory Slot: Onboard 4GB / Up to 8GB (8th gen. Core 13 only)
System Chipset: SoC
- Storage
- 1 x SATA MO-297 SSD bay
- Expansion Slot
- 1 x internal mini-PCIe slot full size
- Connectors
- 2 x USB 3.0 type A
1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2
1 x Audio Line Out
2 x GbE LAN RJ-45
1 x 3-pin terminal block for DC power input
1 x 2-pin connector for power on/off button
Option for additional I/O ports
- Power Supply
- Power Input: 9 to 36V DC power input
Power Consumption: 45W
Option for external AC power adapter
- Mounting
- Panel mount, VESA (100 x 100mm)
- Weight
- 16.10 lb / 7.3 kg

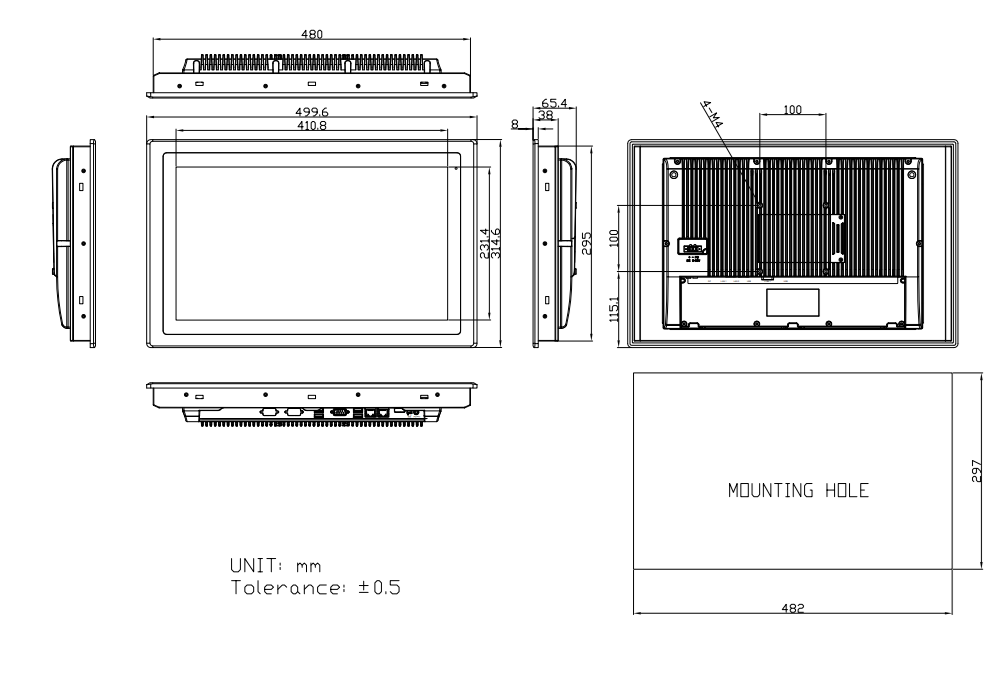

- Dimension
- 19.67"(W) x 2.36"(D) x 12.39"(H)
- Environmental
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature : -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 10% to 90% @40°C, non-condensing
- Certification
- CE, FCC Class A
PC9185A:
18.5 inch 1366 x 768 fanless industrial panel PC, Intel Celeron N2930 1.83GHz CPU, onboard 4GB DDR3L memory, Resistive type touch screen, 9 to 36V DC power input, IP66 rated flat front panel. Option for PCAP type touch screen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, and Windows OS.
PC9185B:
18.5 inch 1366 x 768 fanless industrial panel PC, 8th generation Intel Core i3-8145UE processor, onboard 4GB DDR4L memory, Resistive type touch screen, 9 to 36V DC power input, IP66 rated flat front panel. Option for PCAP type touch screen / 1000-nit high brightness display / optical bonding, mini PCIe slot, external AC power adapter, and Windows OS.
